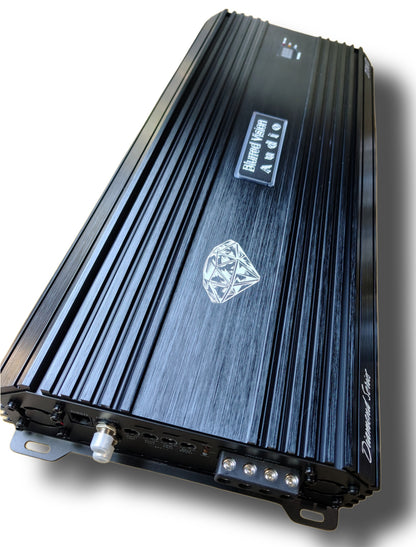

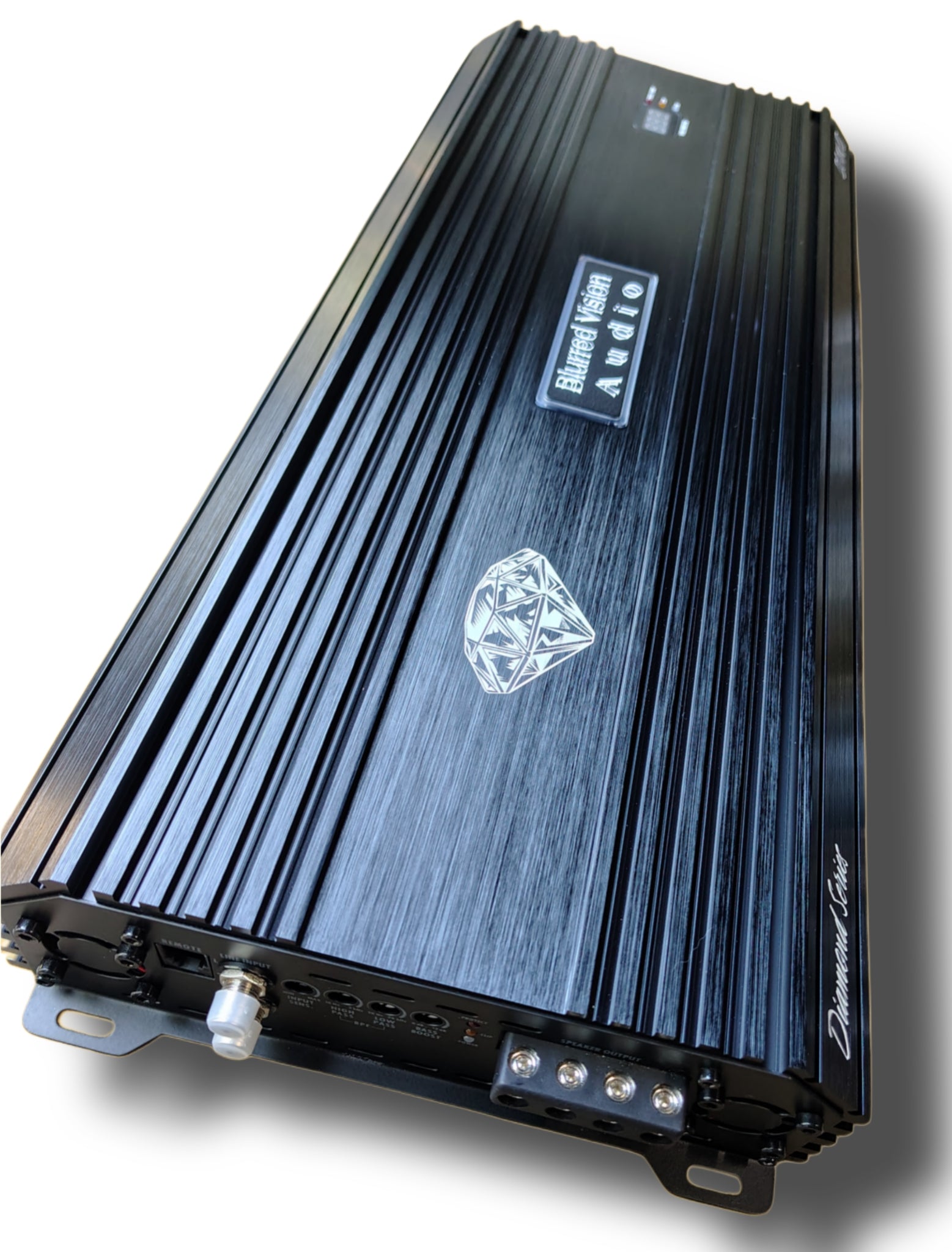

Blurred Vision Audio Diamond Series DS-18K.1D (18000RMS) 1 Ohm (Used on Test Bench)

⚡ The Blurred Vision Audio Diamond Series DS-18K.1D is a monoblock (single-channel) Class D amplifier, designed for extremely high-power applications. It’s capable of delivering up to 18,000+watts RMS at 1 ohm, which is incredibly high and clearly aimed at competition-level SPL (sound pressure level) setups rather than everyday listening. The amplifier uses compact “Small Footprint Technology”, making it easier to install in tight spaces despite its massive power output.

Key Specifications

Channels 1 (Mono)

RMS Power

1Ω: 18,000W

2Ω: 9,000 W

4Ω: 4,500 W

Rated @ 14.4V

Voltage 10–16 V

Frequency Response 10 Hz – 20 kHz (Full Range)

Crossover LPF: 50 Hz – 20 kHz, HPF: 10 Hz – 700 Hz

SNR >91–100 dB

THD <0.05%

Input Sensitivity 0.4 V – 3.6 V

Output Impedance 1Ω

Cooling 4 high-powered fans

Dimensions 10.6” x 23.5” x 4.5”

Weight 18 lbs

Features

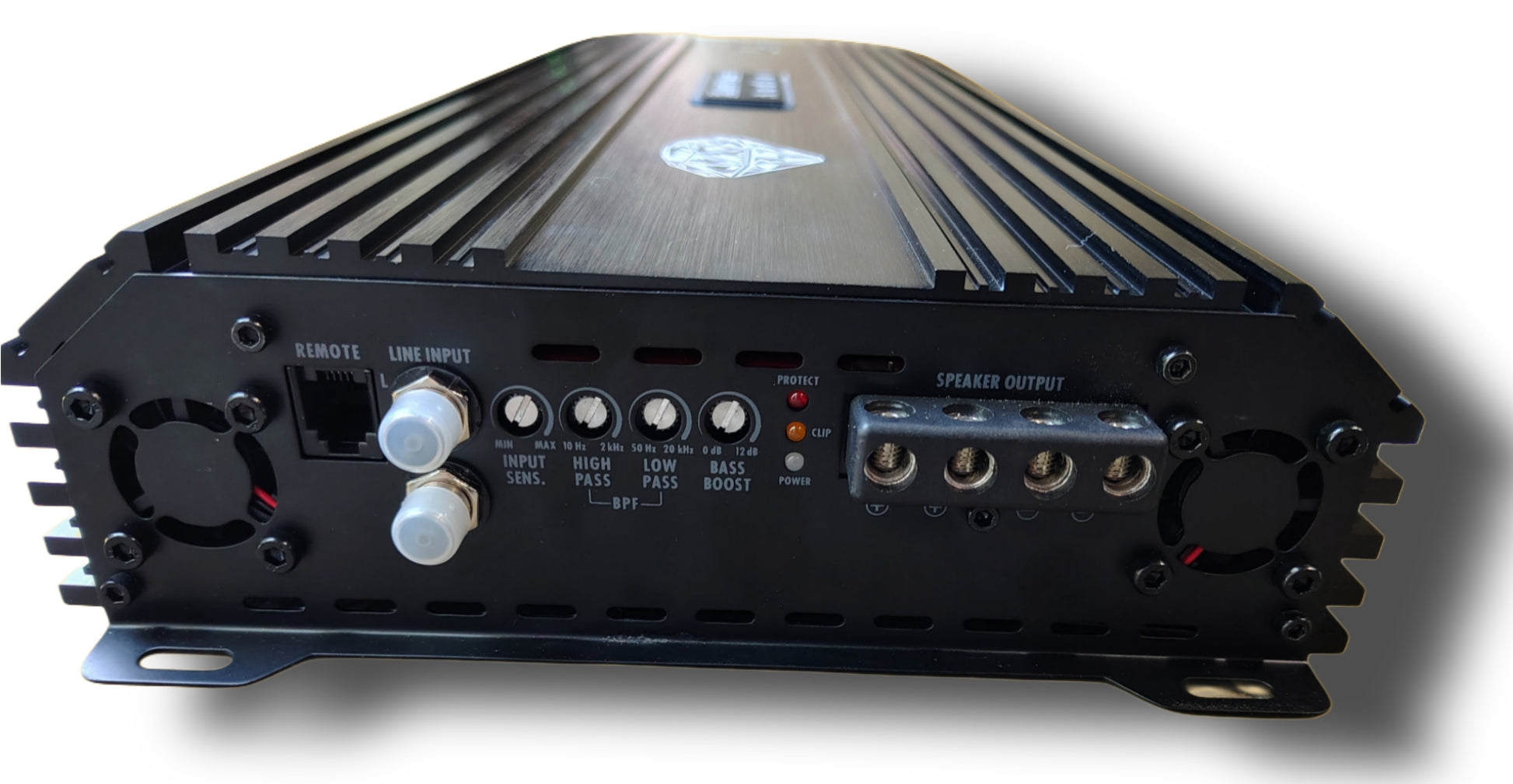

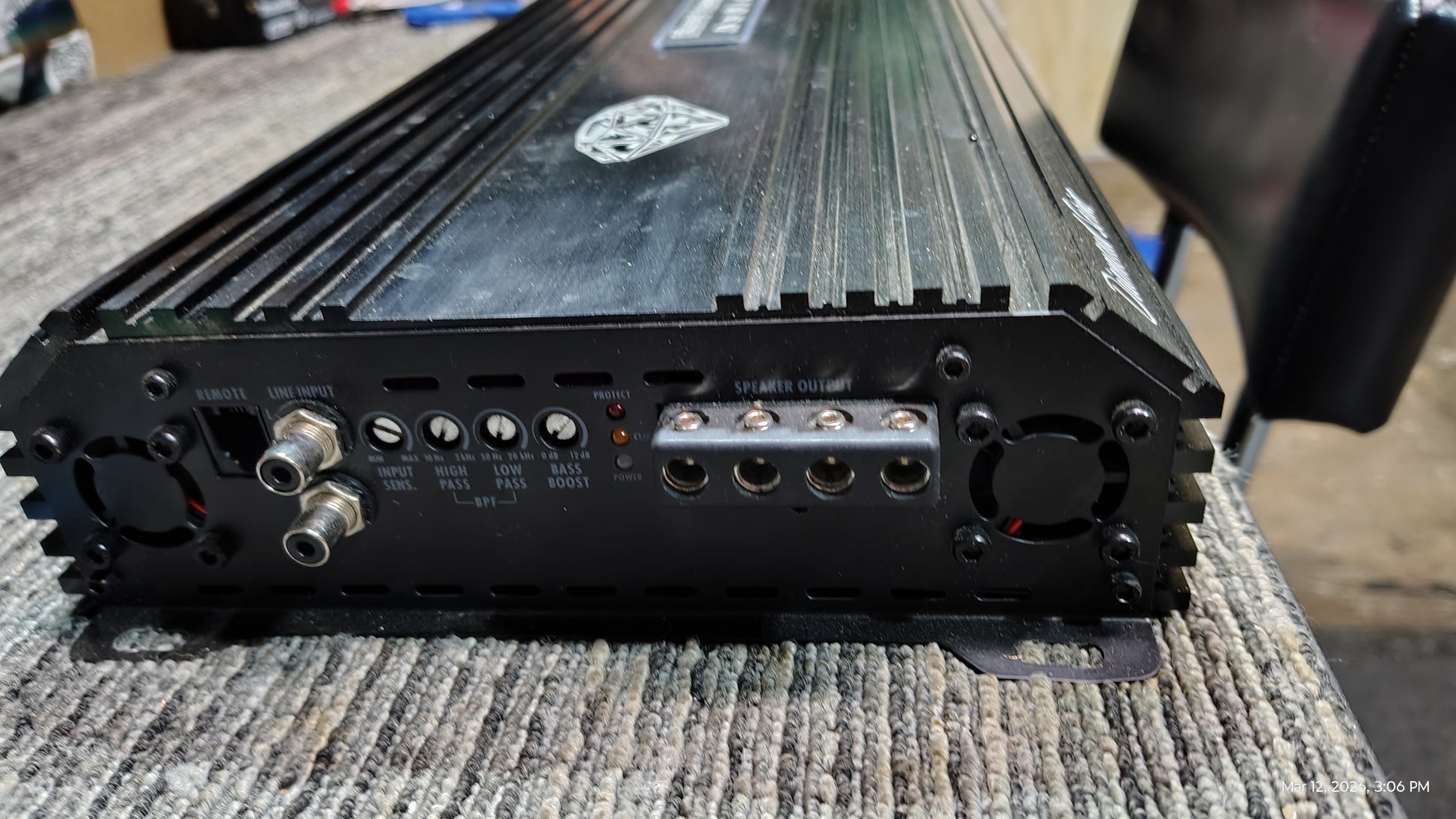

Full Range EQ: Separate adjustments for Bass, Mid Bass, Mid High, plus Level, HPF, and LPF.

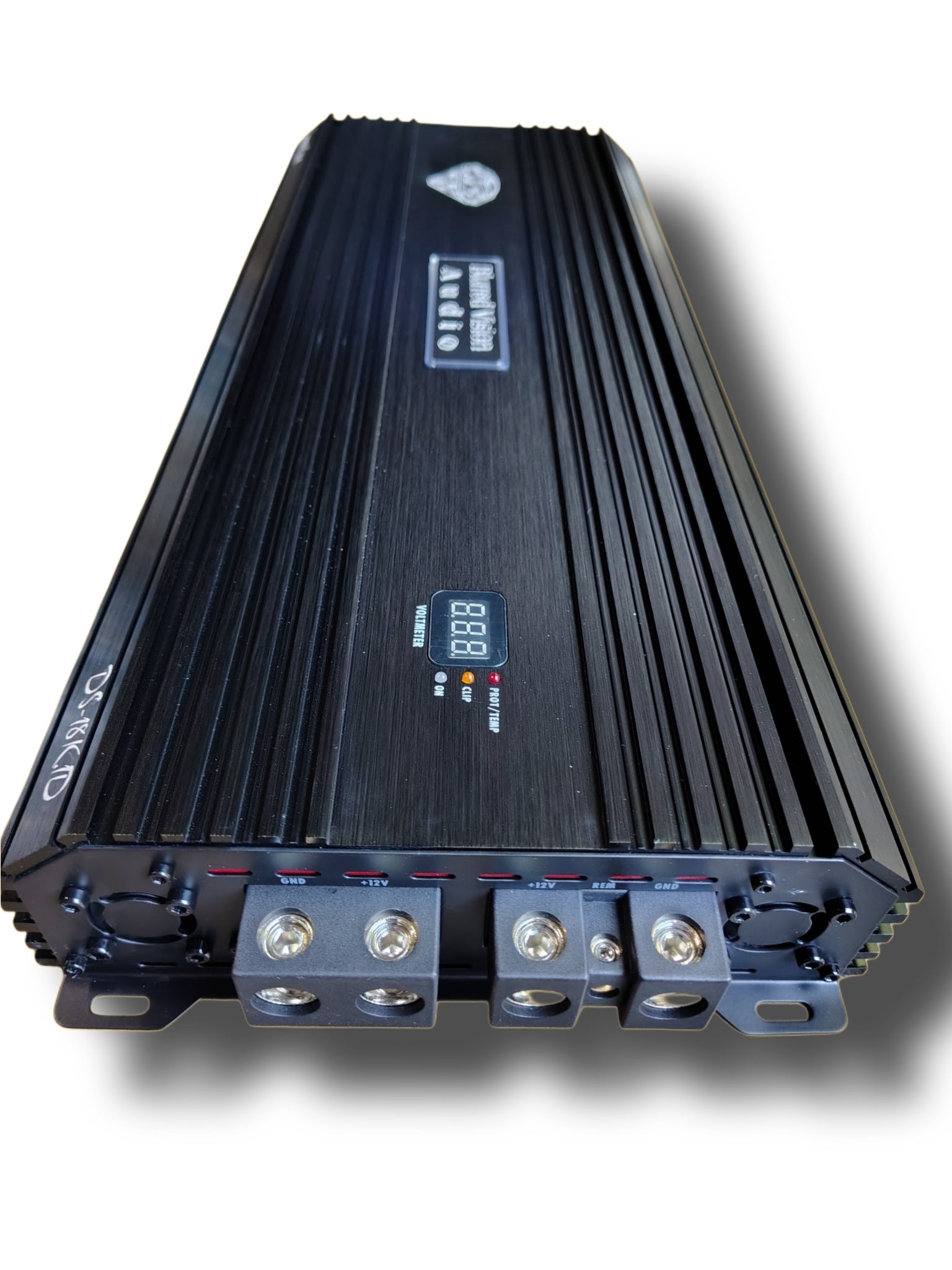

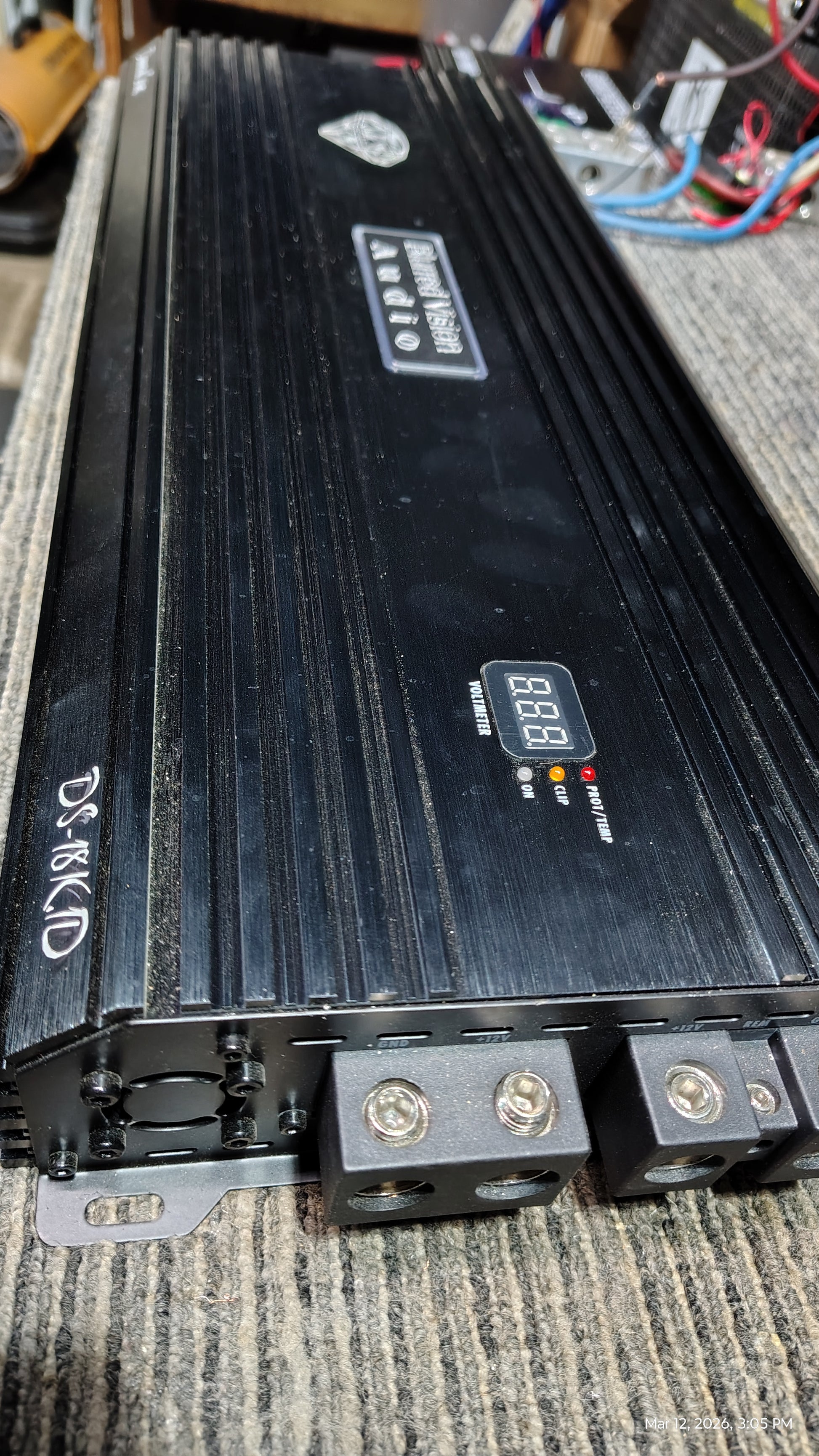

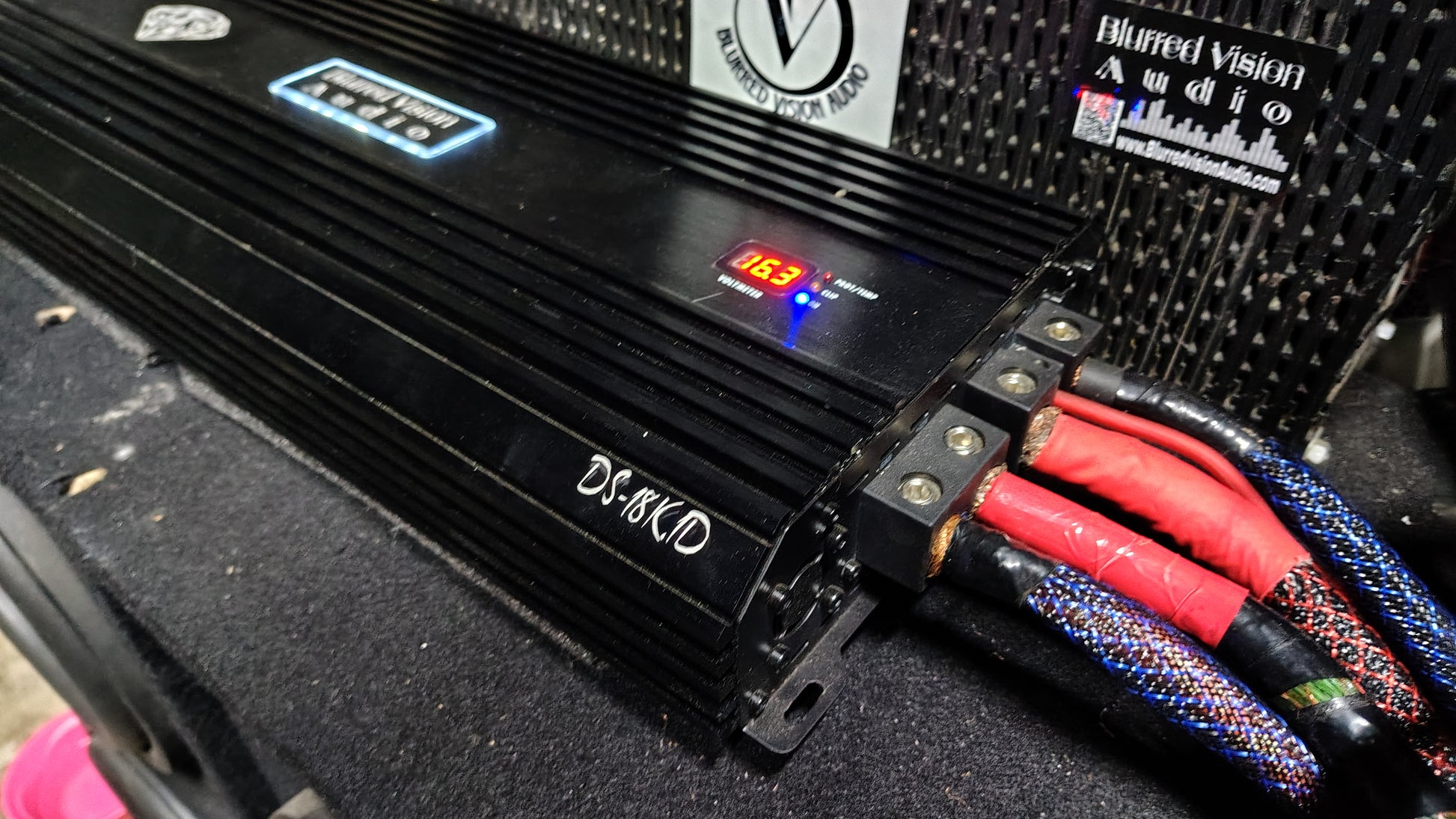

Voltage display & clipping indicators: Useful for monitoring performance.

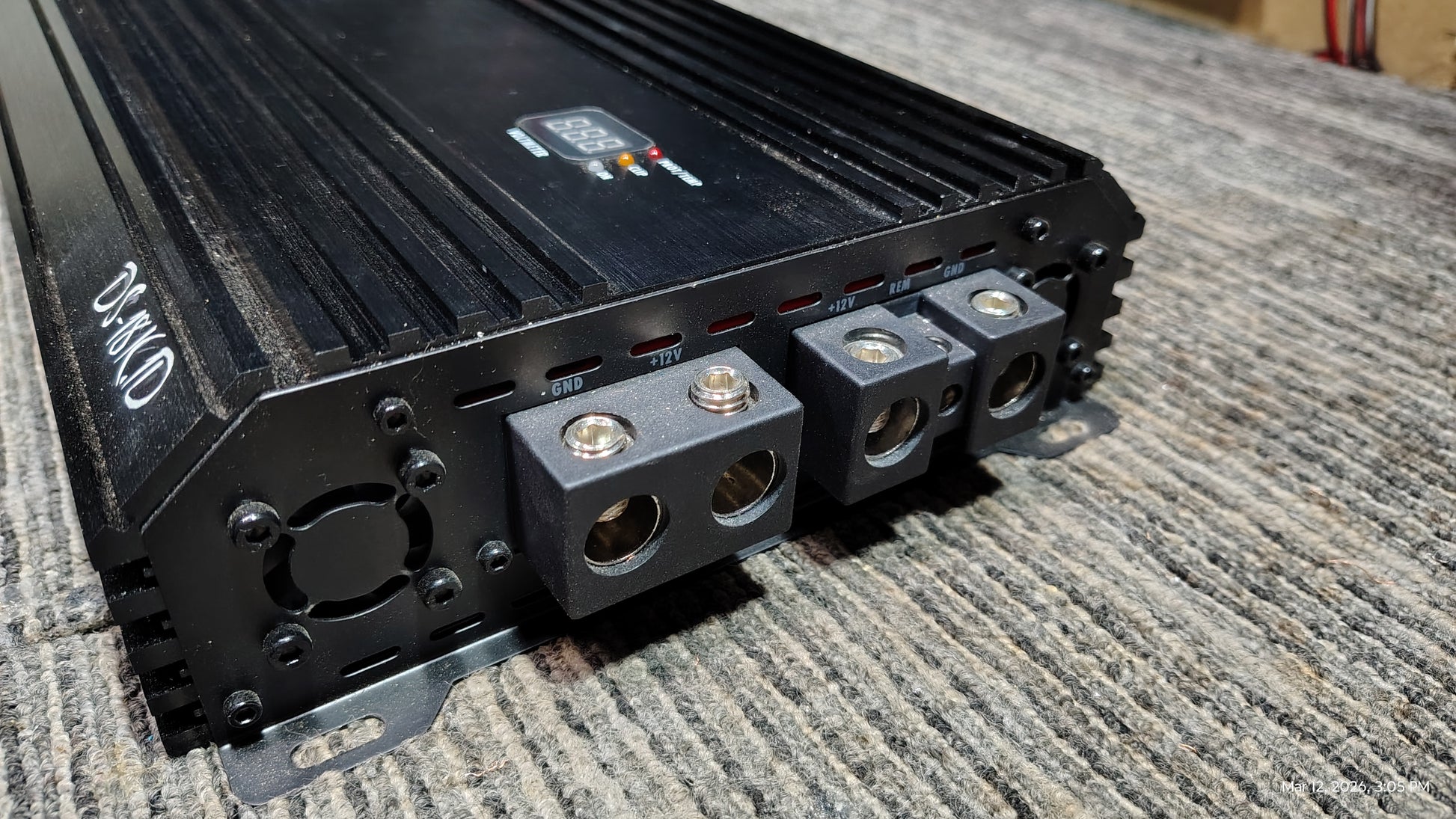

Dual Inputs & Quad Fuse Block: Supports flexible wiring setups.

Fans & compact design: Efficient cooling in a small chassis.

Applications: Can drive subs, woofers, drivers, and even tweeters if needed.

Installation Tips

1. Turn off amplifier before connecting or disconnecting cables to prevent damage.

2. Avoid noise interference: Keep power and signal wires away from ignition and starter circuits.

3. Use 100% copper wires and high-quality connectors to maintain sound fidelity.

4. Fuse protection: Place the fuse within 12 inches of the battery.

5. Load caution: Designed for music speaker loads; resistive load tests are not recommended.

Pros

Extremely high RMS power in a compact design.

Efficient Class D operation (85–95%).

Full frequency response allows multi-use (sub + full range).

Robust protection features: voltage display, clipping indicators, and built-in cooling.

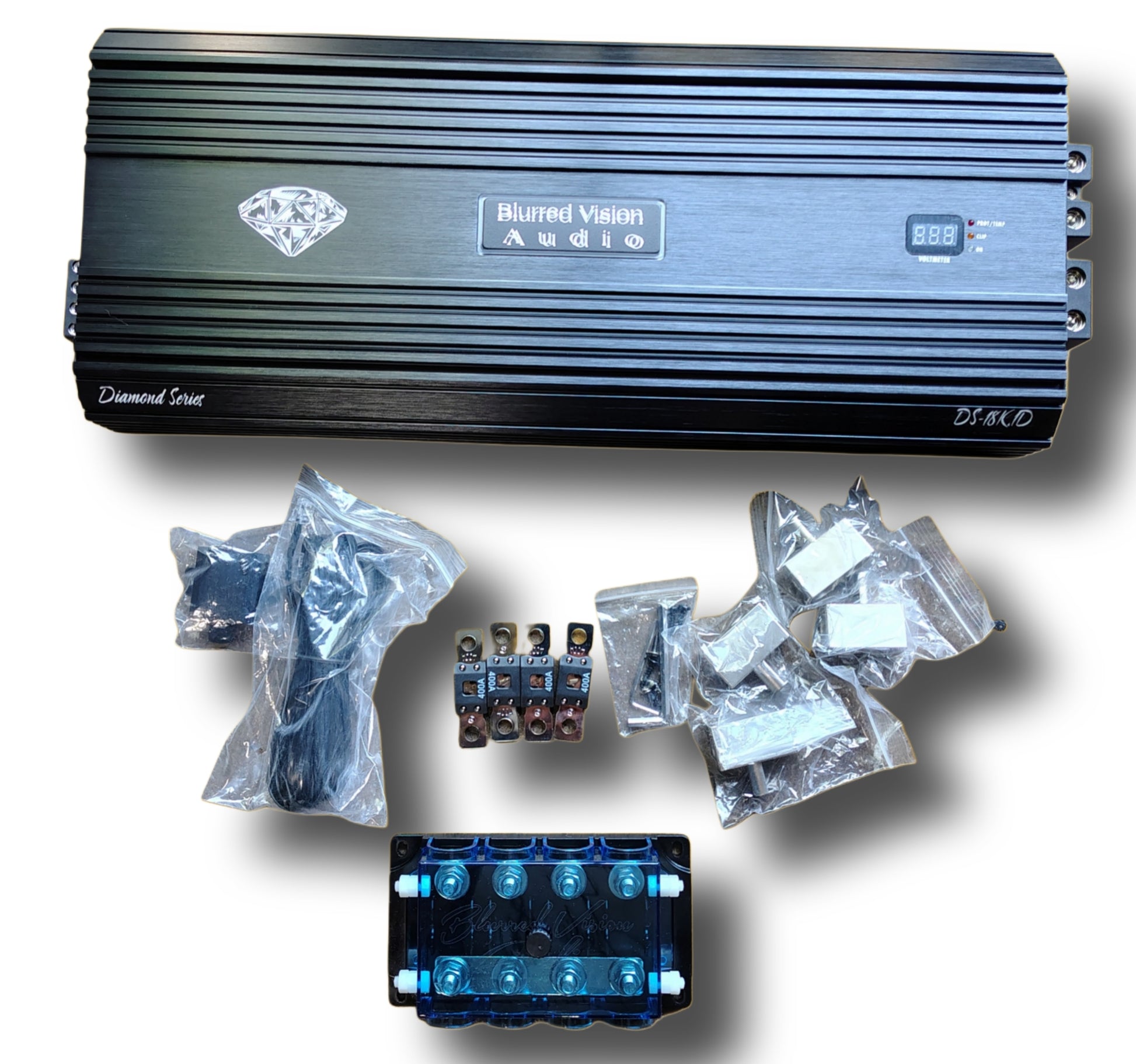

Comes with all wiring essentials: dual inputs, fuse block, fuses, and bass knob.

Things to Watch

Insane power: This is 18kW RMS at 1Ω—most car electrical systems cannot safely supply this without serious upgrades (multiple batteries, high-output alternator, thick wiring).

Realistic power delivery: Manufacturers often rate Class D amps at peak RMS; real-world output may be lower, especially at higher frequencies.

Installation difficulty: Requires expertise in SPL wiring, high-current fusing, and careful heat management.

Best Use Case

This amplifier is built for car audio competitions with multiple high-power subwoofers. It’s overkill for casual listening or normal vehicles without major electrical system upgrades. Ideal setups might include:

Professional competition vehicles with high-capacity batteries and alternators.

Systems where compact space is needed but extreme power is desired.

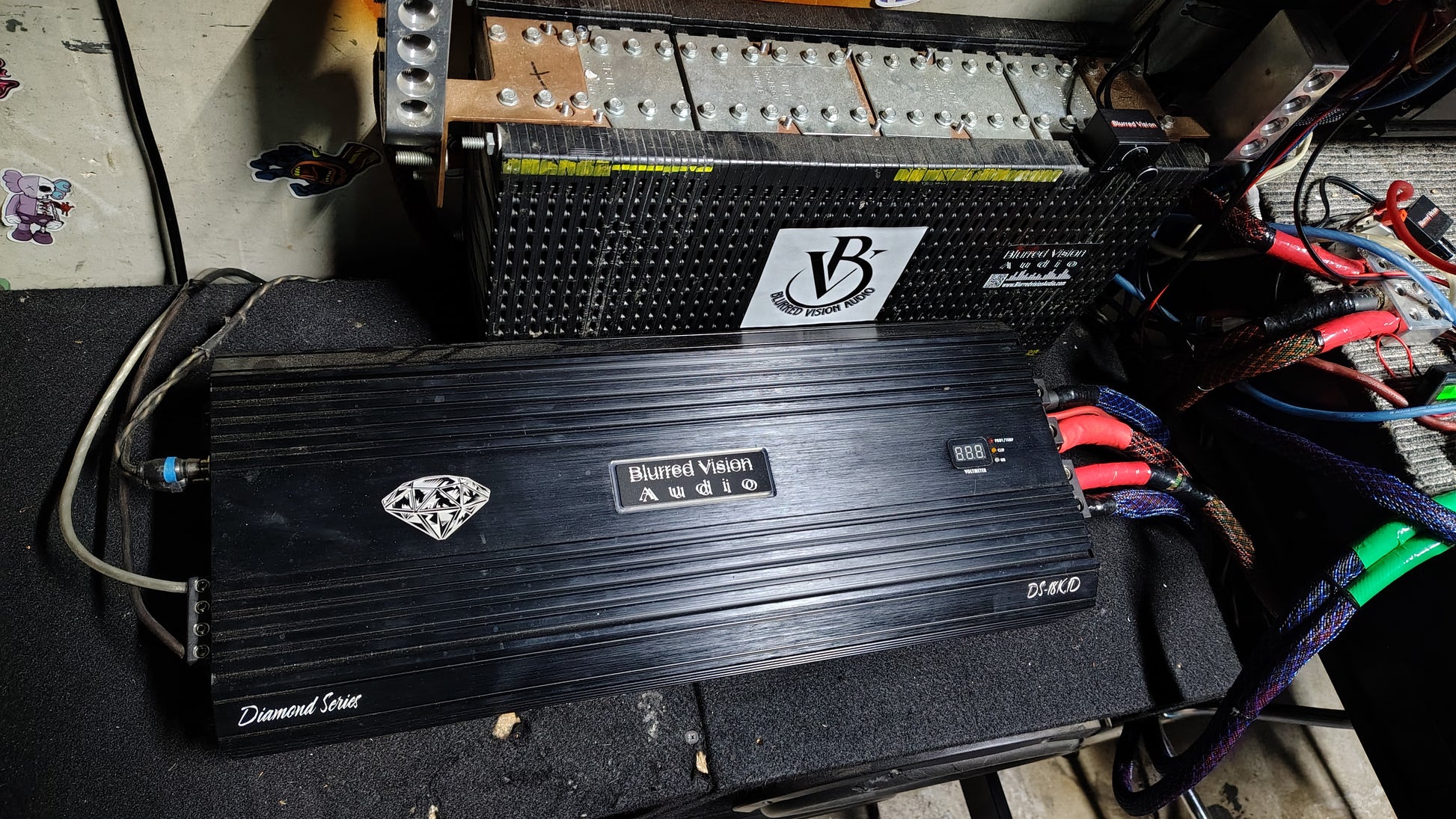

***Brand new amp was on Mounted on showroom floor and used for demo and testing,may have minor mounting feet blemish ECT.*

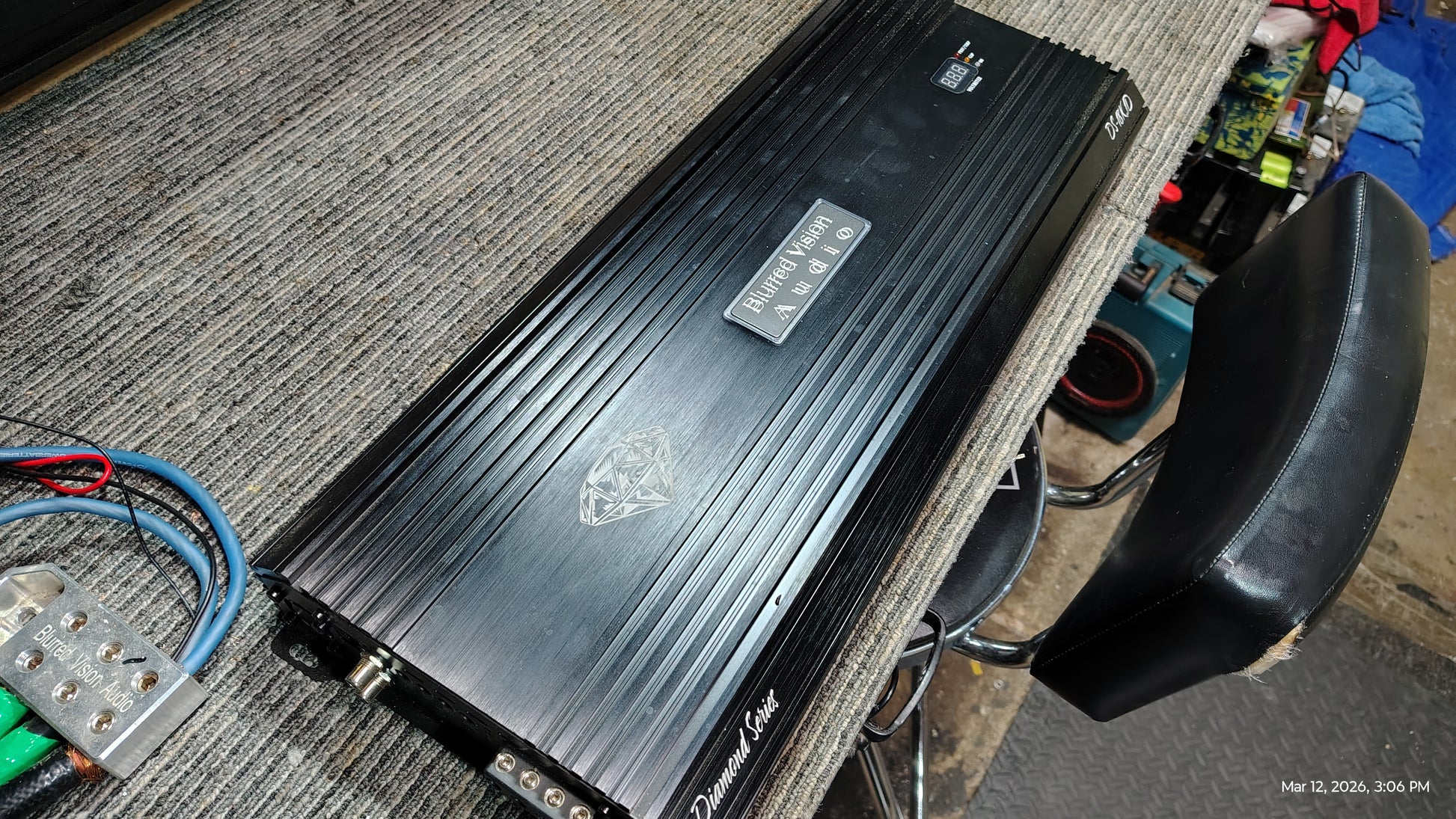

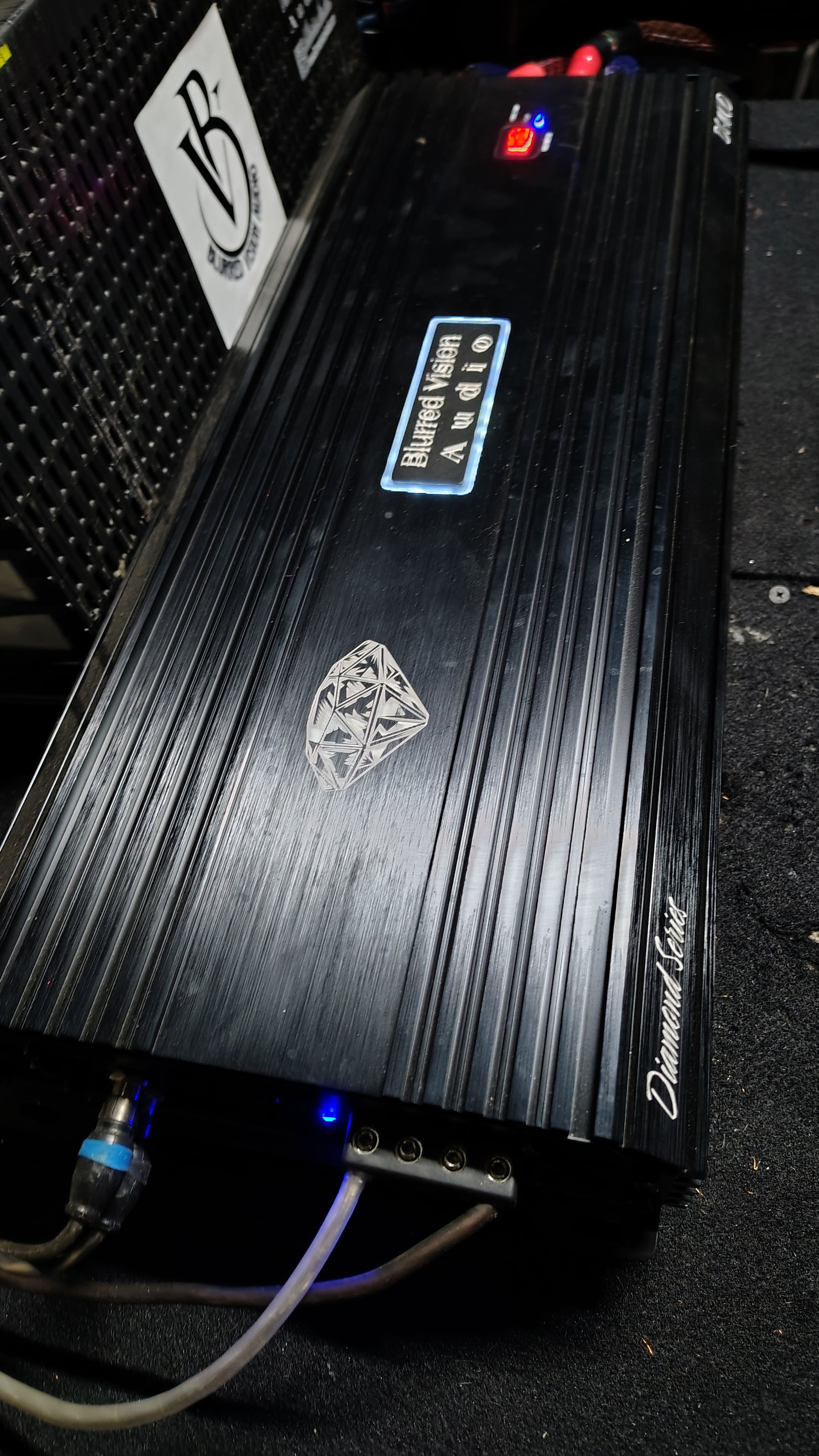

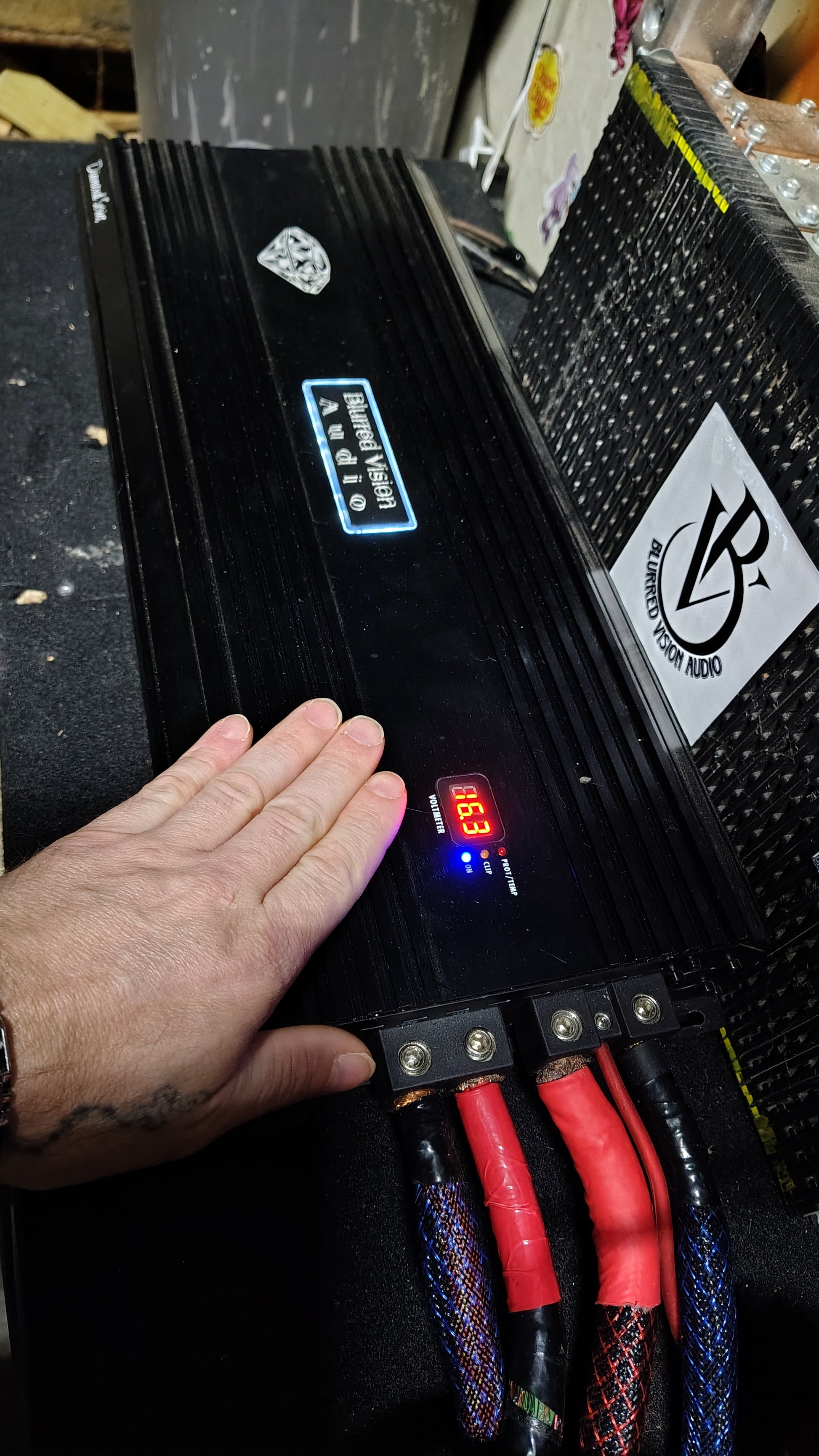

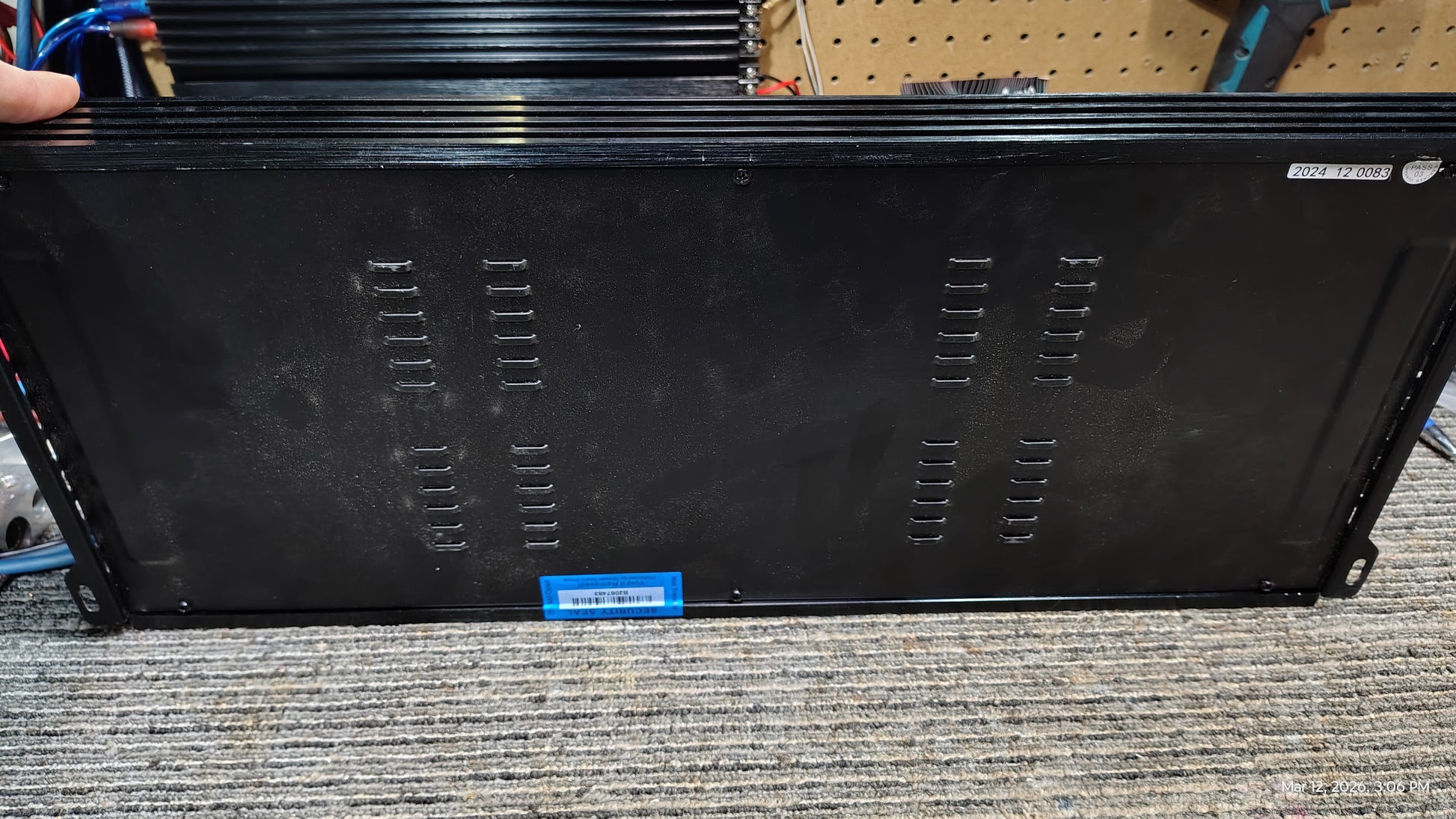

 This Product is previously owned and used on Test bench Some scratches and scuffs on the Product from past use. Item has been tested and is fully functional.
