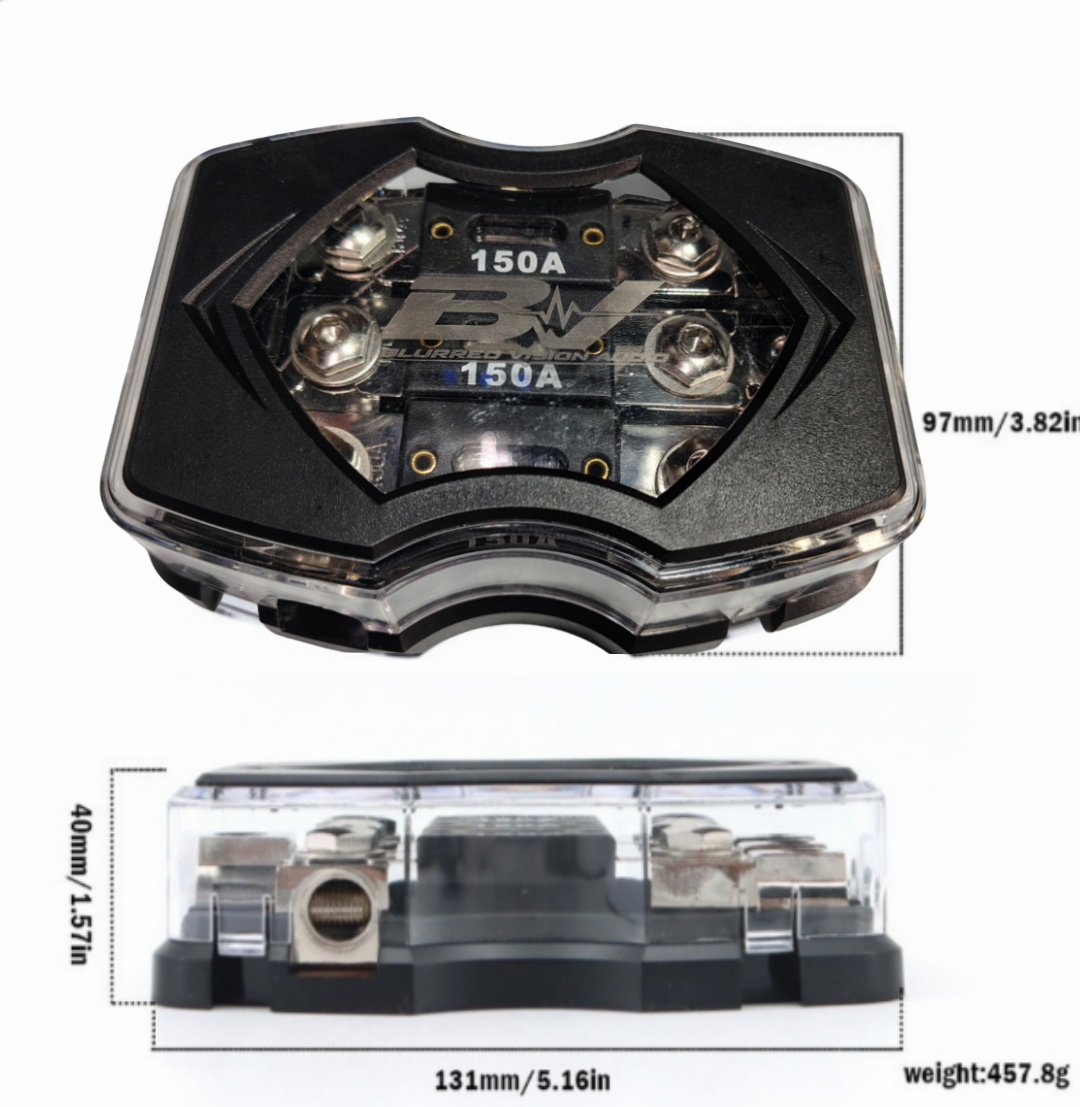

Blurred Vision Audio BV-ANL3X3 3-Way ANL Fused Power Distribution Block Includes Three Installed ANL Fuses

Blurred Vision Audio BV-ANL3X3

3-Way ANL Fused Power Distribution Block

Includes Three Installed Amp ANL Fuses 100,200,300,400,500

The Blurred Vision Audio BV-ANL3X4 is a compact, high-current fused distribution block designed to safely divide one main power cable into three individually fused outputs. It is ideal for multi-amplifier car audio systems, auxiliary batteries, lighting systems, marine installations, and other high-performance 12-volt electrical applications.

Each output is protected by its own ANL fuse, helping protect connected equipment and wiring against excessive current and electrical faults.

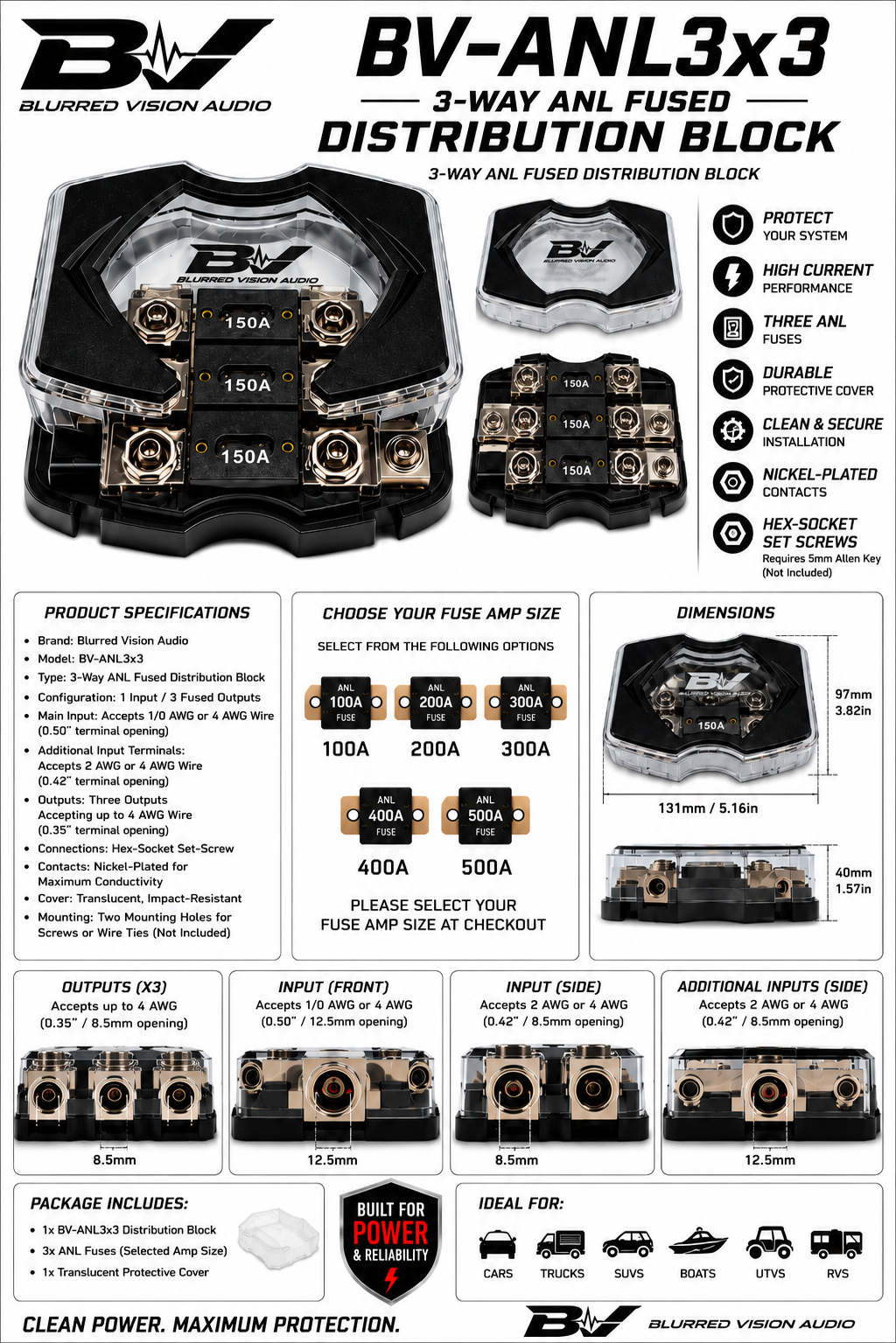

Product Specifications

Brand: Blurred Vision Audio

Model: BV-ANL3X3

Type: 3-Way ANL Fused Distribution Block

Configuration: 1 Main Input / 3 Fused

Outputs Included Fuses: Three ANL Fuses

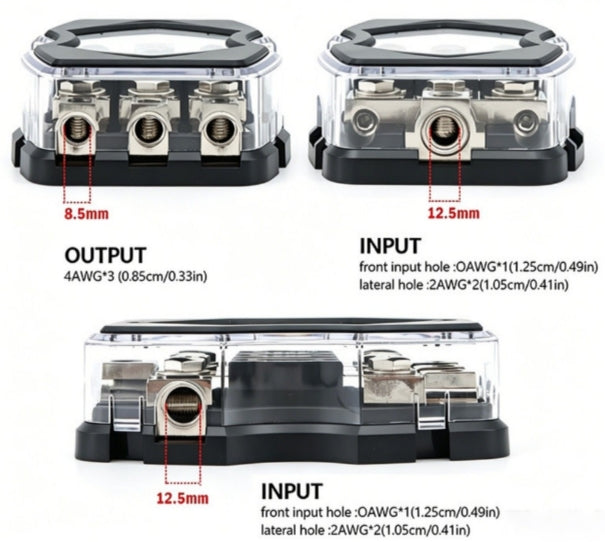

Main Input: Accepts 1/0 AWG or 4 AWG Wire

Additional Input Terminals: Accept 2 AWG or 4 AWG Wire

Outputs: Three Outputs Accepting Up to 4 AWG Wire

Connections: Hex-Socket Set-Screw Terminals

Required Allen Key: 5mm

Contact Finish: Nickel-Plated

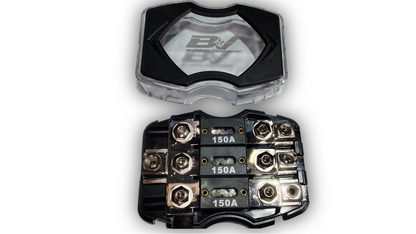

Cover: Translucent, Impact-Resistant and Removable

Mounting: Two Integrated Mounting Holes

Key Features

Three Individually Fused Outputs

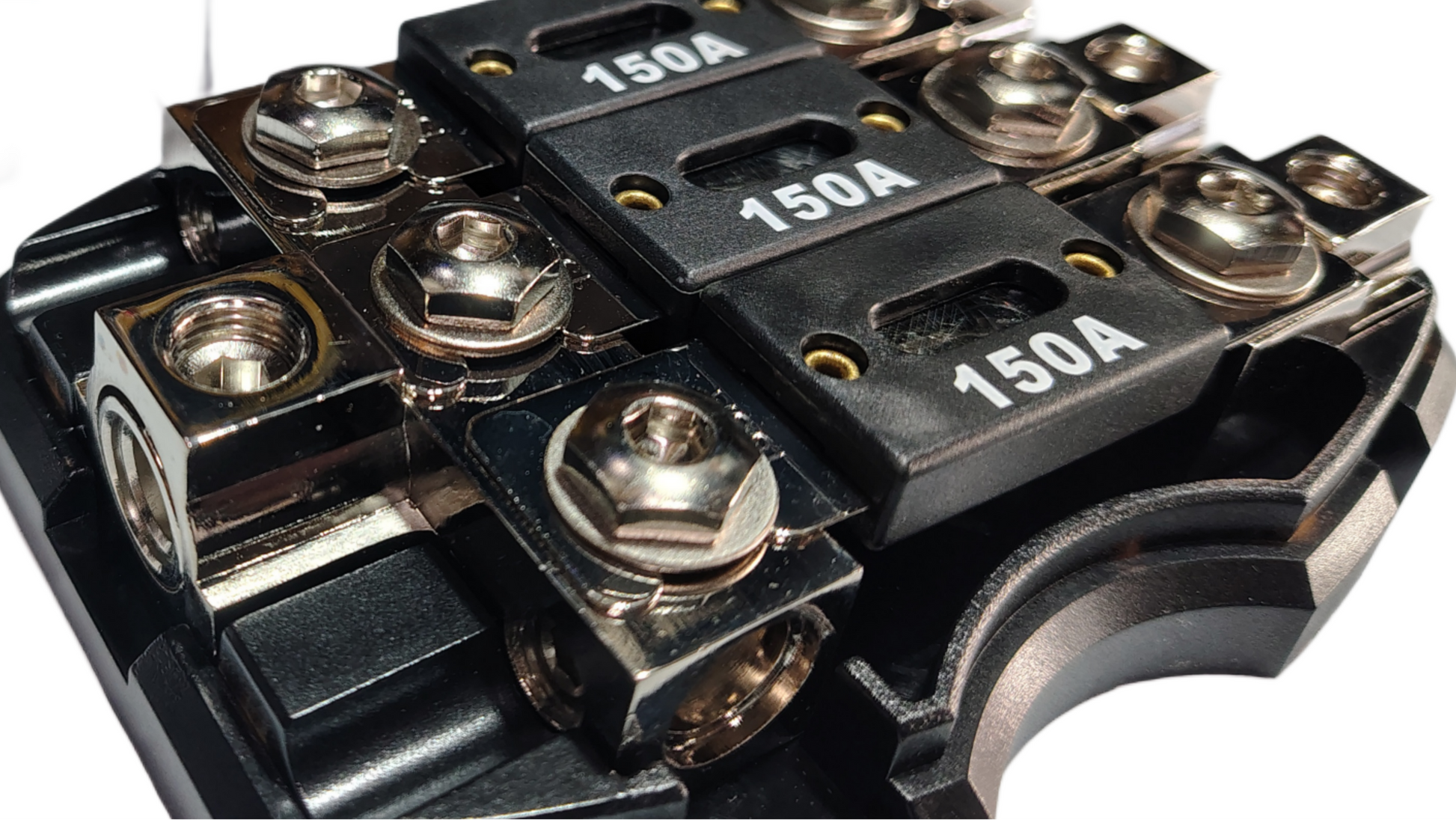

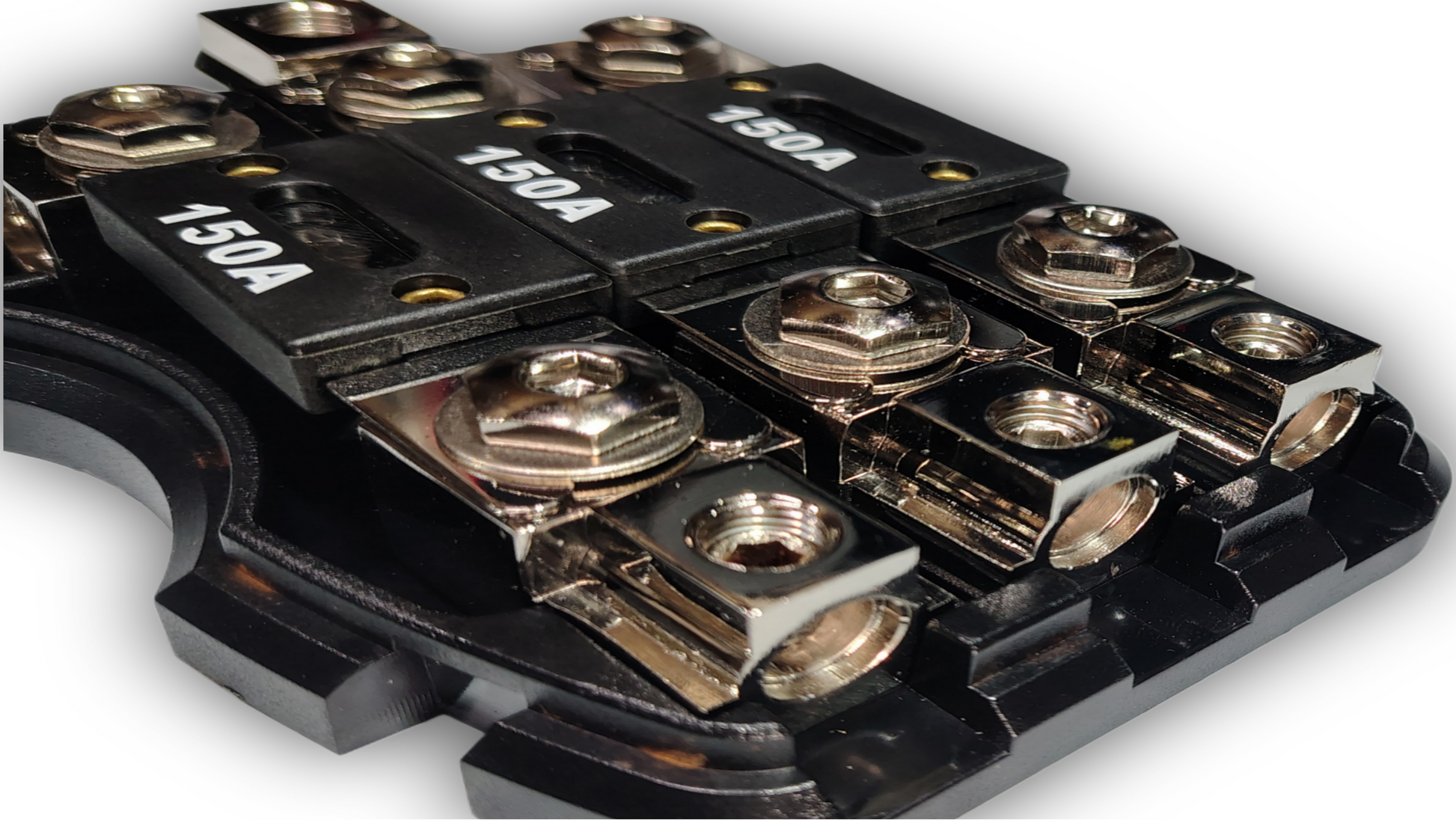

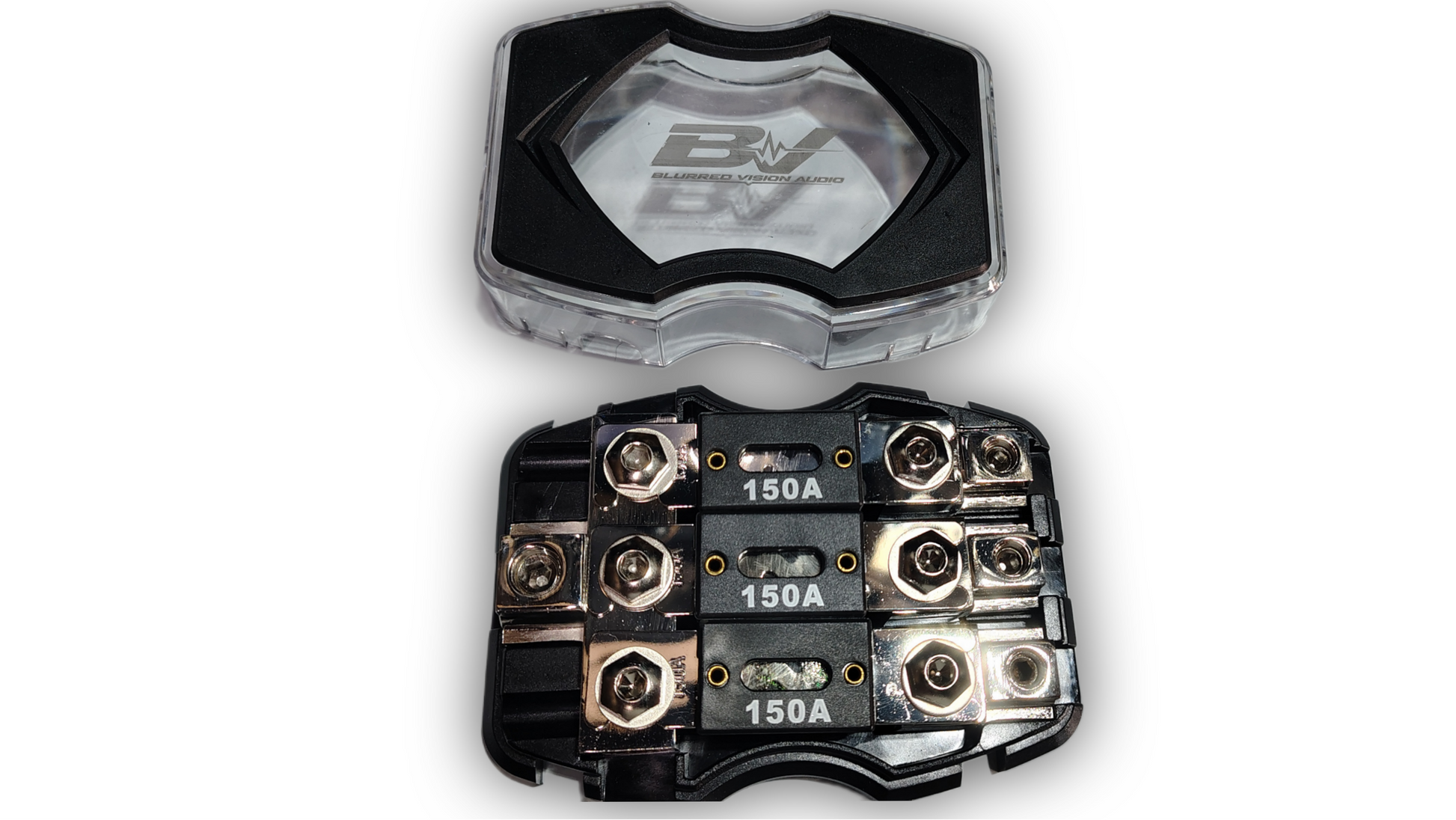

The main input distributes power to three separate outputs, with each circuit protected by an installed 150A ANL fuse.

High-Conductivity Connections

Nickel-plated metal contacts provide dependable current transfer while helping resist corrosion and oxidation.

Multiple Input Options

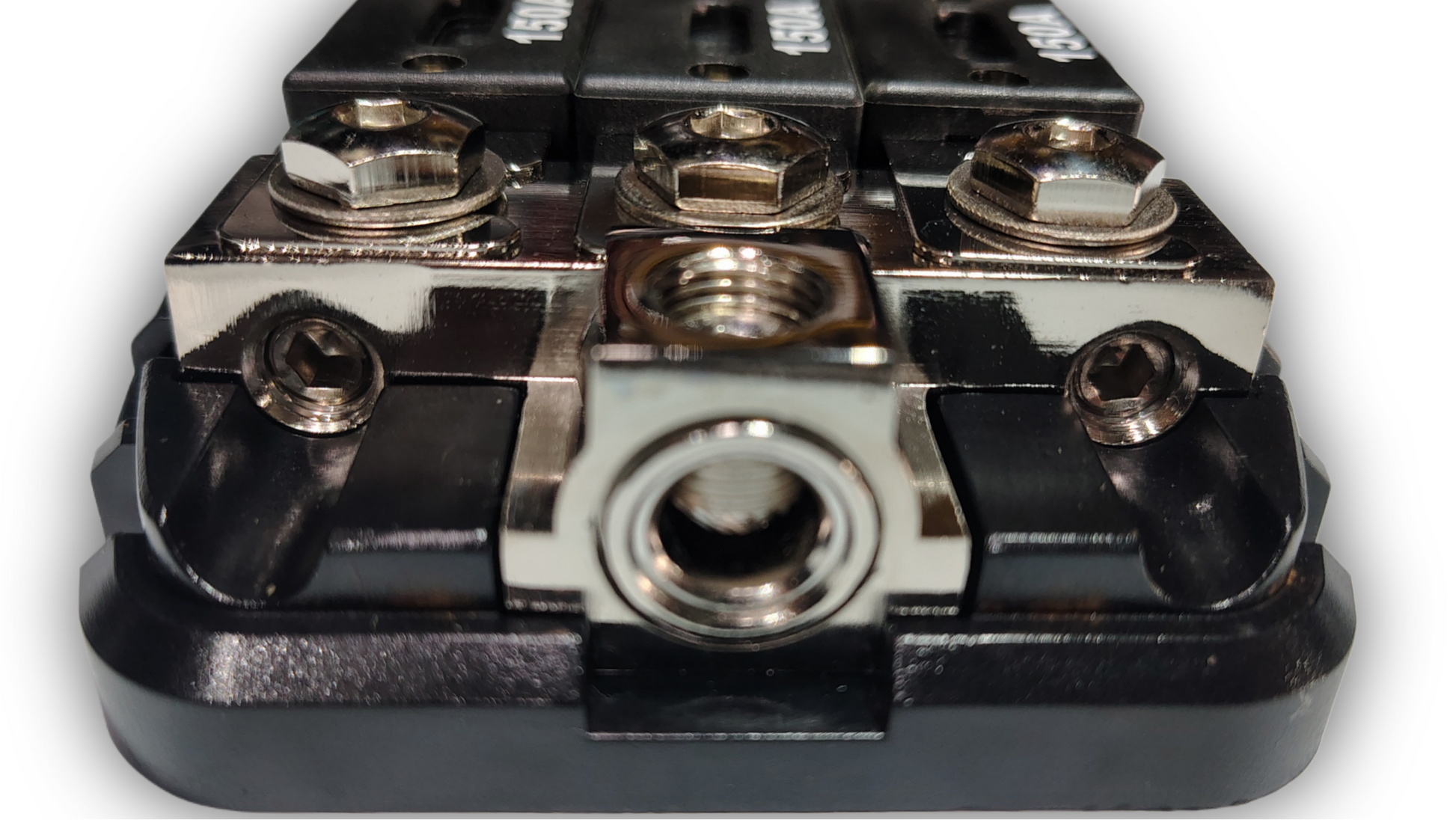

The distribution block includes one large main input for 1/0 AWG or 4 AWG power cable, along with two additional set-screw terminals that can accept 2 AWG or 4 AWG wire.

Durable Protective Cover

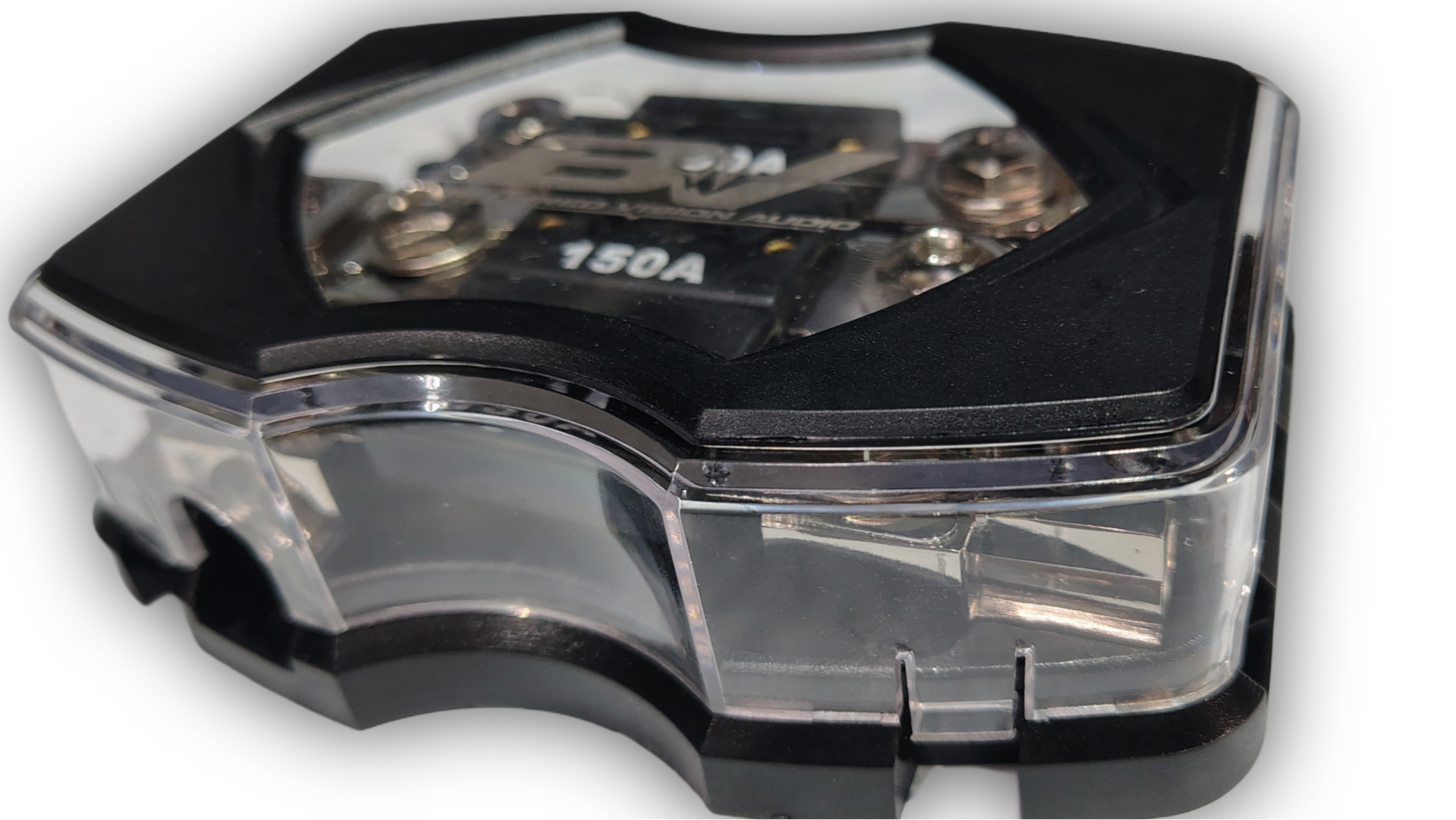

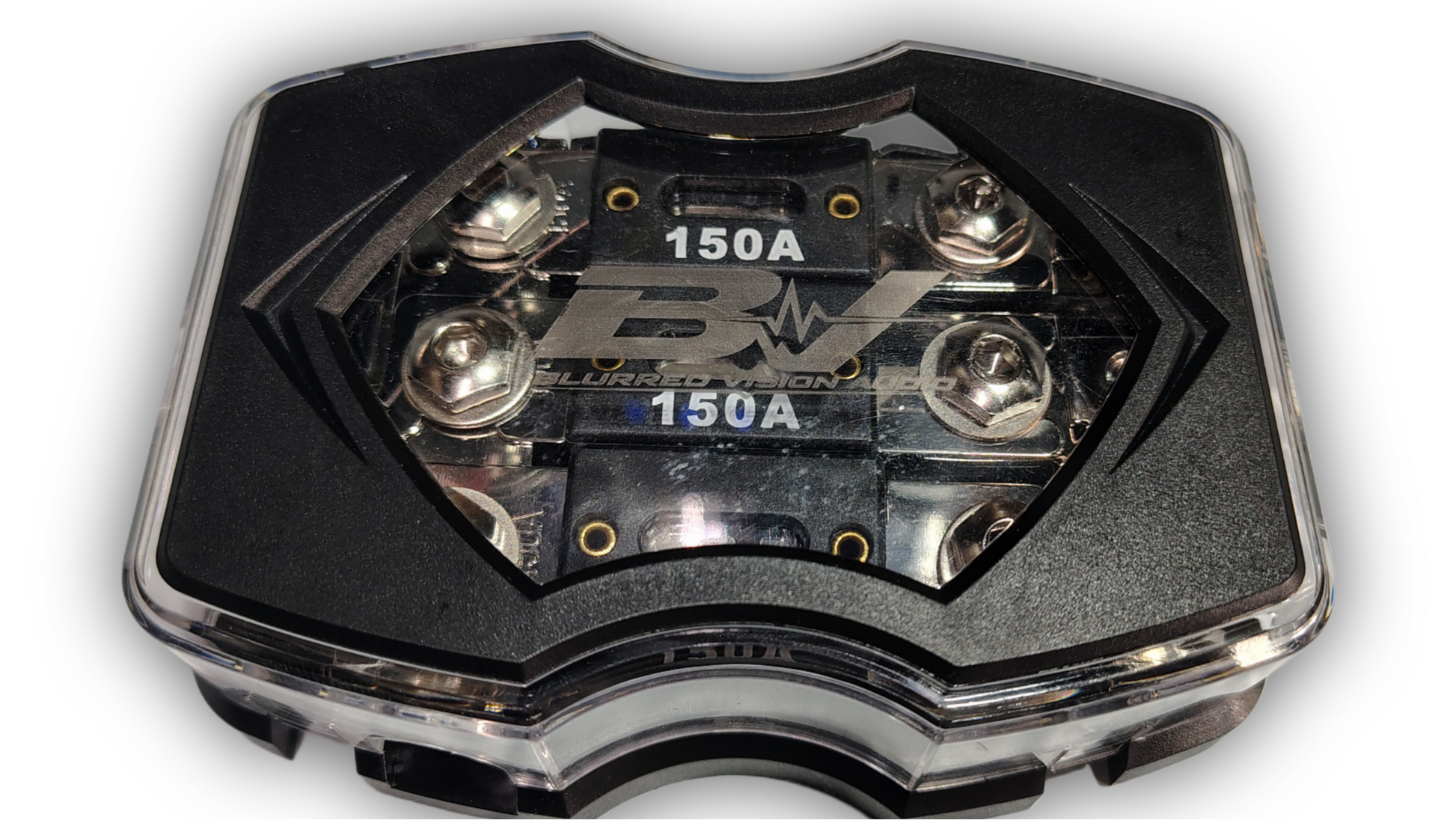

The translucent, impact-resistant cover protects the fuses and electrical contacts while still allowing easy visual inspection.

Secure Set-Screw Terminals

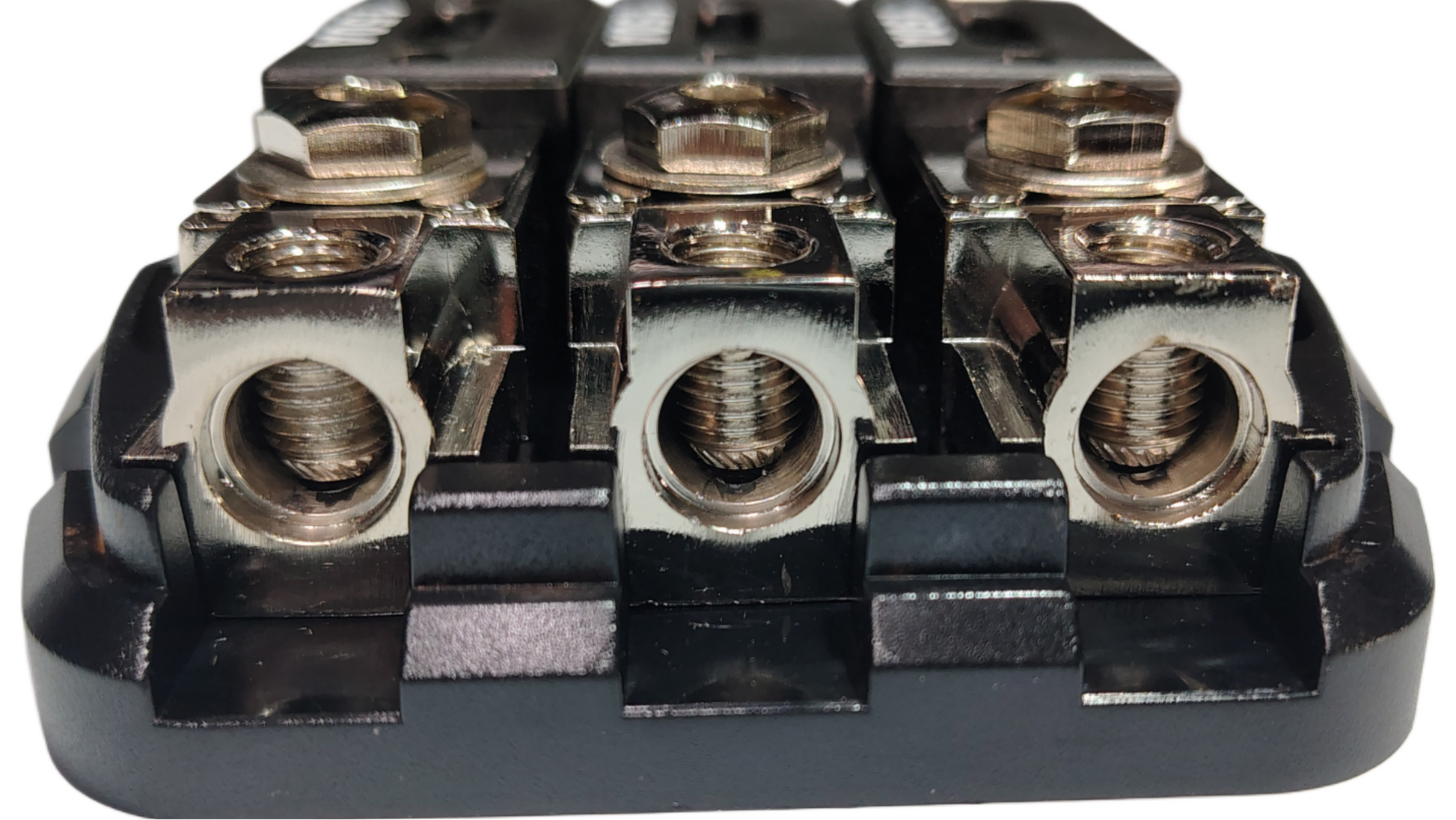

Heavy-duty hex-socket set screws securely hold the power cables in place for a strong, reliable electrical connection.

Clean Installation

Optional wire ferrules may be used to keep cable strands compressed and organized when tightening the set-screw terminals.

Package Includes

1 × Blurred Vision Audio BV-ANL3X3 Distribution Block

3 × Installed Amp ANL Fuses

1 × Translucent Protective Cover

1 × Blurred Vision Audio BV-ANL3X4 Distribution Block

Recommended Applications

Multi-Amplifier Car Audio Systems

Power and Ground Distribution

Auxiliary Battery Systems

Cars, Trucks and SUVs

Boats and Marine Audio Systems

RVs and UTVs

Custom 12-Volt Electrical Installations

Protect your system and keep your power wiring clean with the Blurred Vision Audio BV-ANL3X3 3-Way ANL Fused Distribution Block.
