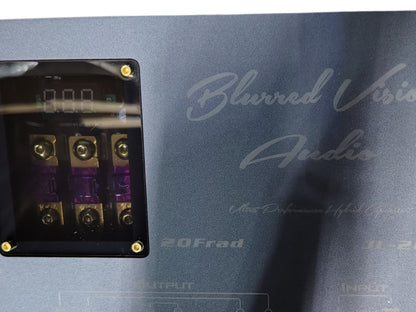

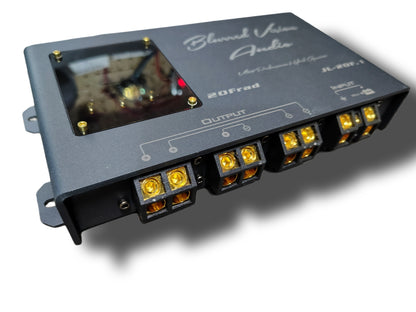

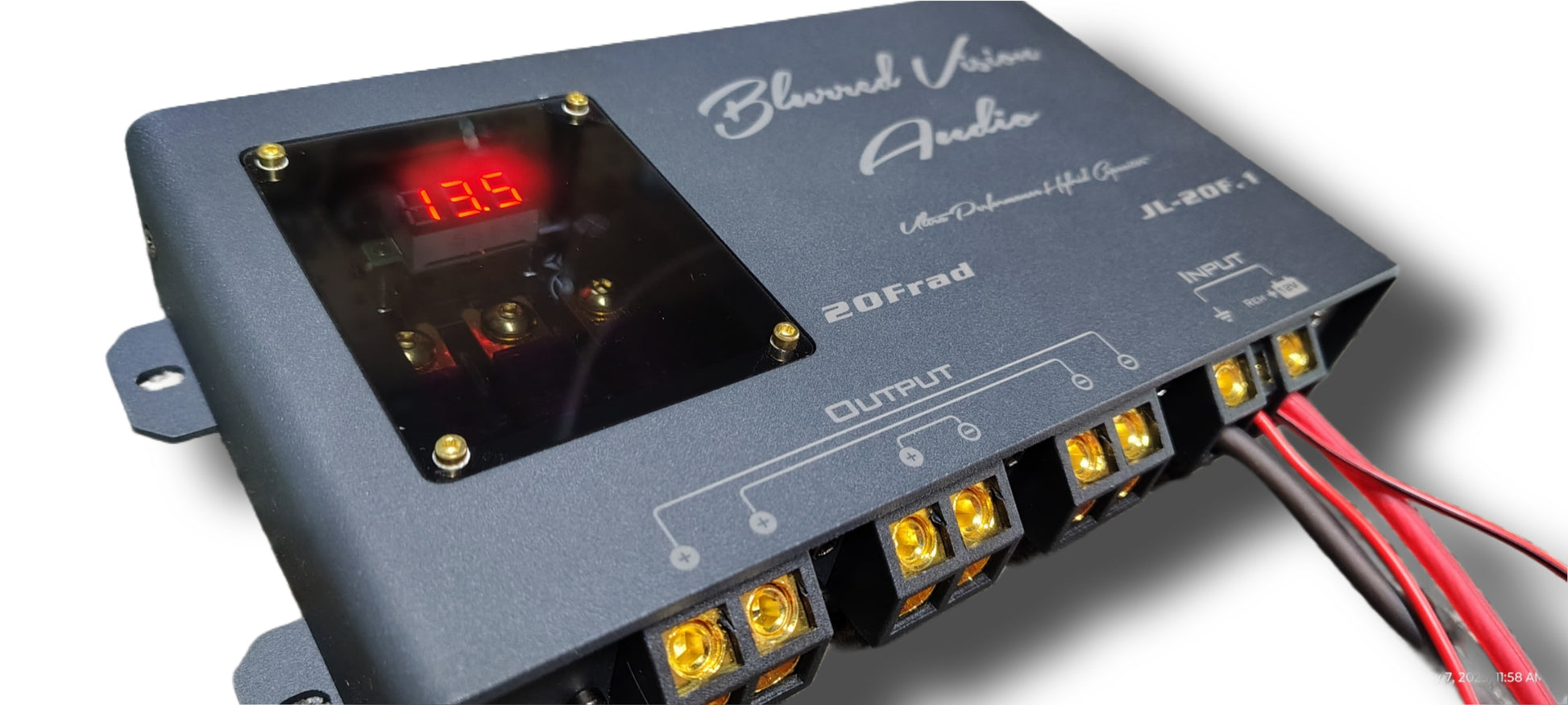

Blurred Vision Audio JL-20F Super Capacitor Bank (1-2k Watts)

Blurred Vision Audio JL-20F

Super Capacitor Bank – 12V Yinglong LTO Ultra capacitor

Product Overview

The Blurred Vision Audio JL-20F Super Yinglong LTO Capacitor Bank is engineered for high-performance car audio and automotive electrical systems. Built with premium Yinglong LTO ultracapacitor cells, it delivers rapid energy bursts for instant voltage stabilization, smoother power delivery, and enhanced system reliability.

Whether used to support 1,000–2,000W RMS amplifiers or up to 6,000W bursts, this capacitor bank provides the quick, clean power your setup demands — no lag, no voltage drop, just consistent energy when it matters most.

Feature Details

Brand Blurred Vision Audio

Model JL-20F

Capacitance 20 Farads

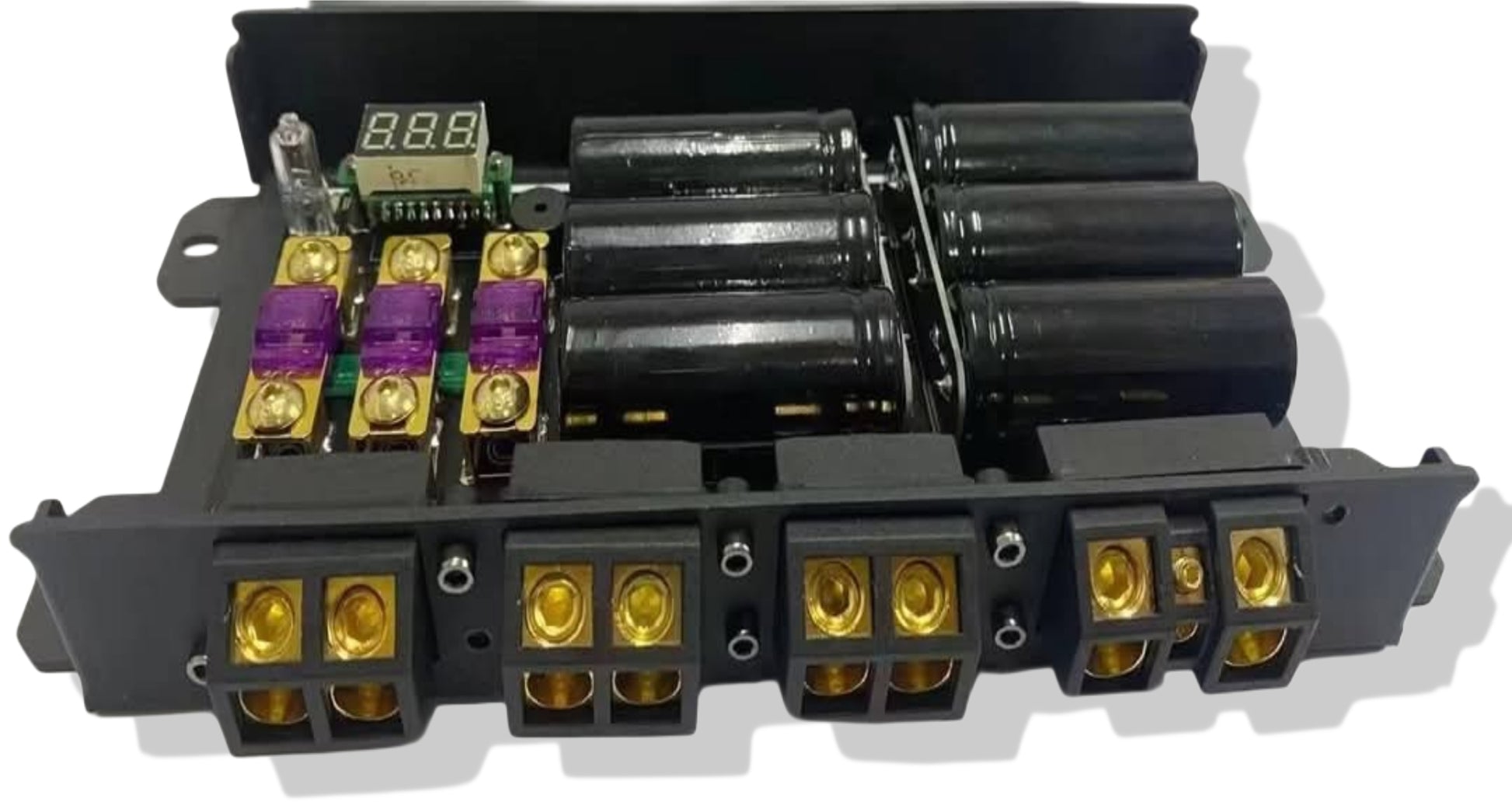

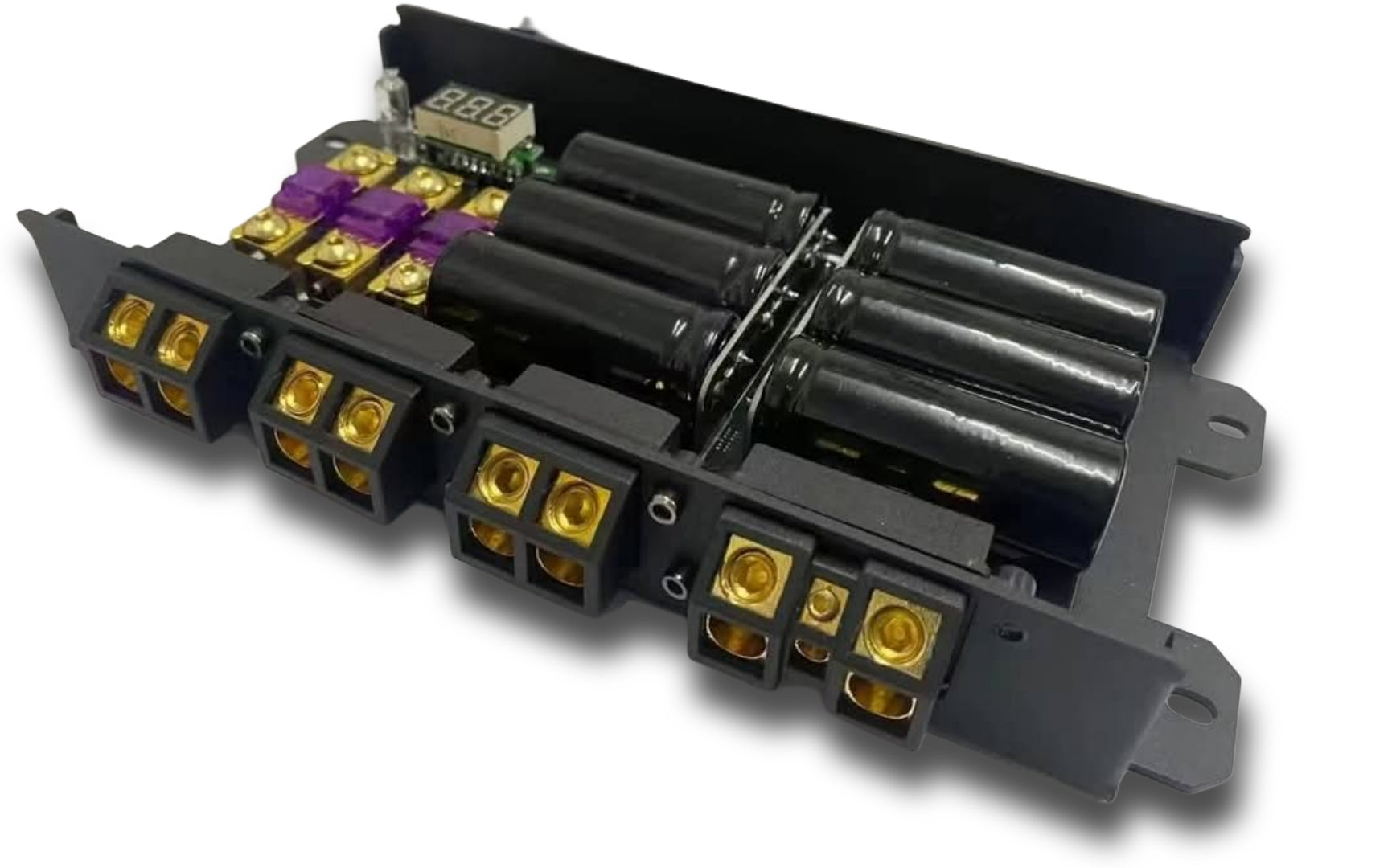

Cell Type Yinglong LTO Ultracapacitors

Operating Voltage Range 10.0V – 16.0V Max

System Voltage 12V

RMS Power Handling 1,000 – 2,000 Watts

Peak Burst Power Up to 6,000 Watts

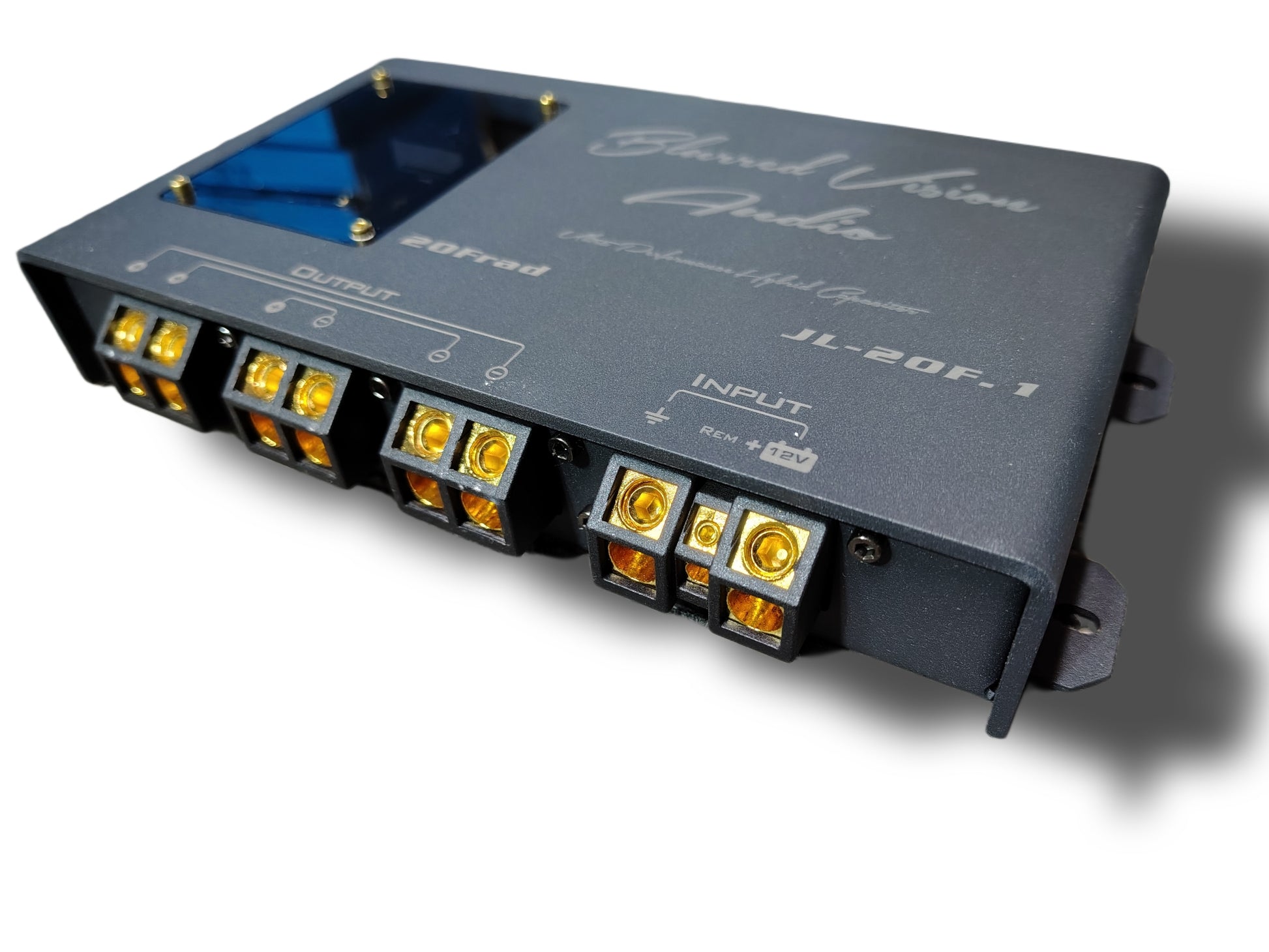

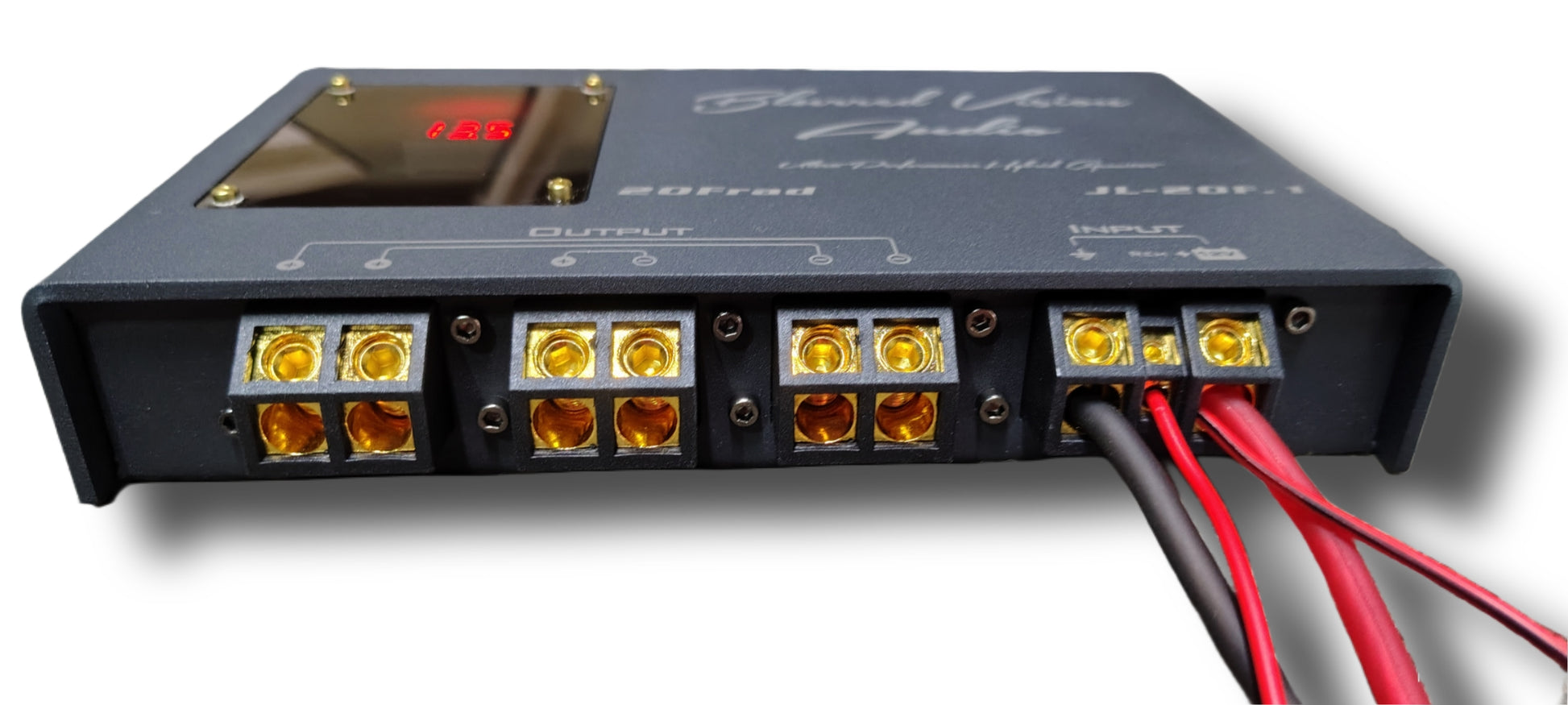

Inputs / Outputs 4 Gauge Inputs & Outputs

Output Terminals (3) × 100A Outputs

Compatible Battery Types Lithium & AGM

Dimensions Length: 9.5 in × Width: 5 in × Height: 1.5 in

Features

⚡ Plug-and-Play Design – Simple connection; no need for complex wiring or extra charging circuits.

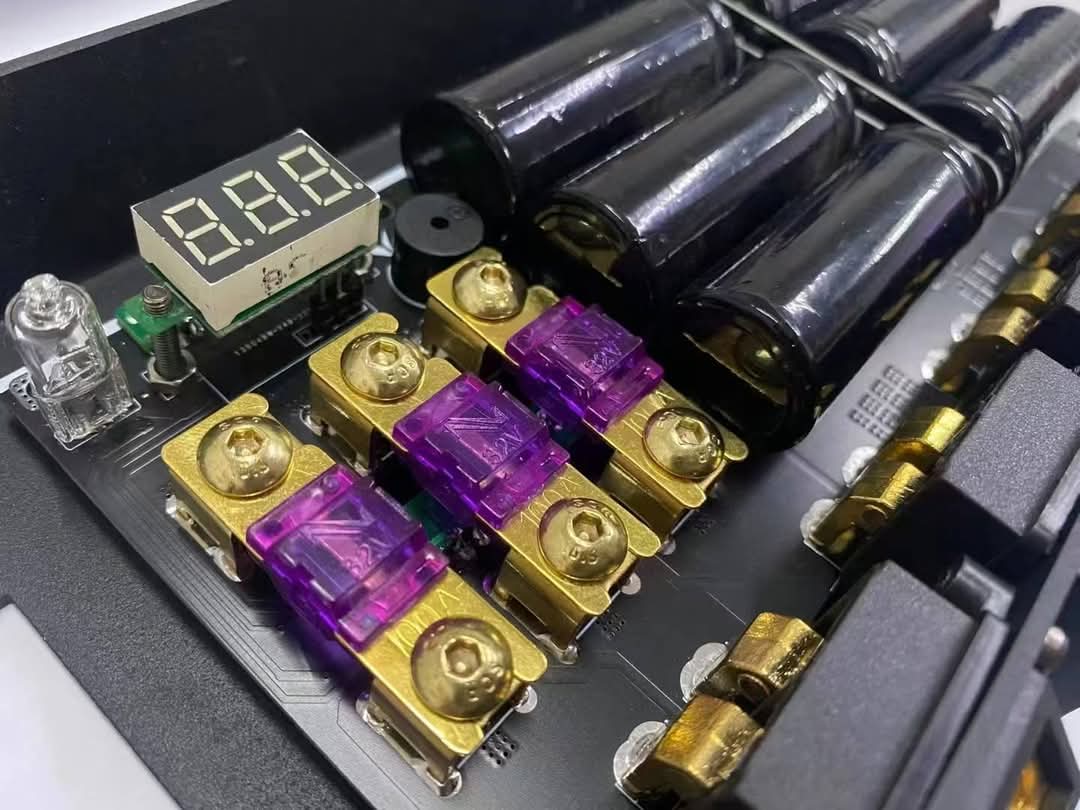

💡 Built-In Precharge Bulb – Automatically limits inrush current. The bulb lights up when charging and dims as the capacitor fully charges—no manual precharge required.

🔋 Voltage Stabilization – Maintains consistent system voltage for amplifiers and accessories, reducing dimming and protecting sensitive electronics.

🚗 Dual Compatibility – Works seamlessly with both Lithium and AGM 12V systems.

❄️ Extreme Climate Performance – LTO ultracaps deliver dependable power even in hot or freezing environments.

🔁 Ultra-Long Life – Rated for over 1,000,000 charge/discharge cycles, offering reliable performance for 10+ years.

🧩 Expandable System – Multiple JL-20F units can be connected in parallel to build a larger, high-current energy bank.

How It Works

The JL-20F acts as a power buffer between your battery and high-draw components (such as amplifiers or starters). When voltage dips under heavy load, the capacitor bank releases stored energy instantly to maintain stable voltage. It then recharges in seconds, ready for the next demand.

This not only improves amplifier performance but also extends the lifespan of your battery, starter, relays, and other electrical components by reducing strain and voltage fluctuations.

Applications

Car Audio Systems (1,000W–6,000W setups)

Engine Starting Support

High-Power DC Systems

Off-Road & Marine Vehicles

Hybrid Battery Assist Systems

Package Includes

1 × Blurred Vision Audio JL-20F Super Capacitor Bank

Built-In Precharge Bulb (Integrated)

Mounting and Connection Hardware

Quick Setup

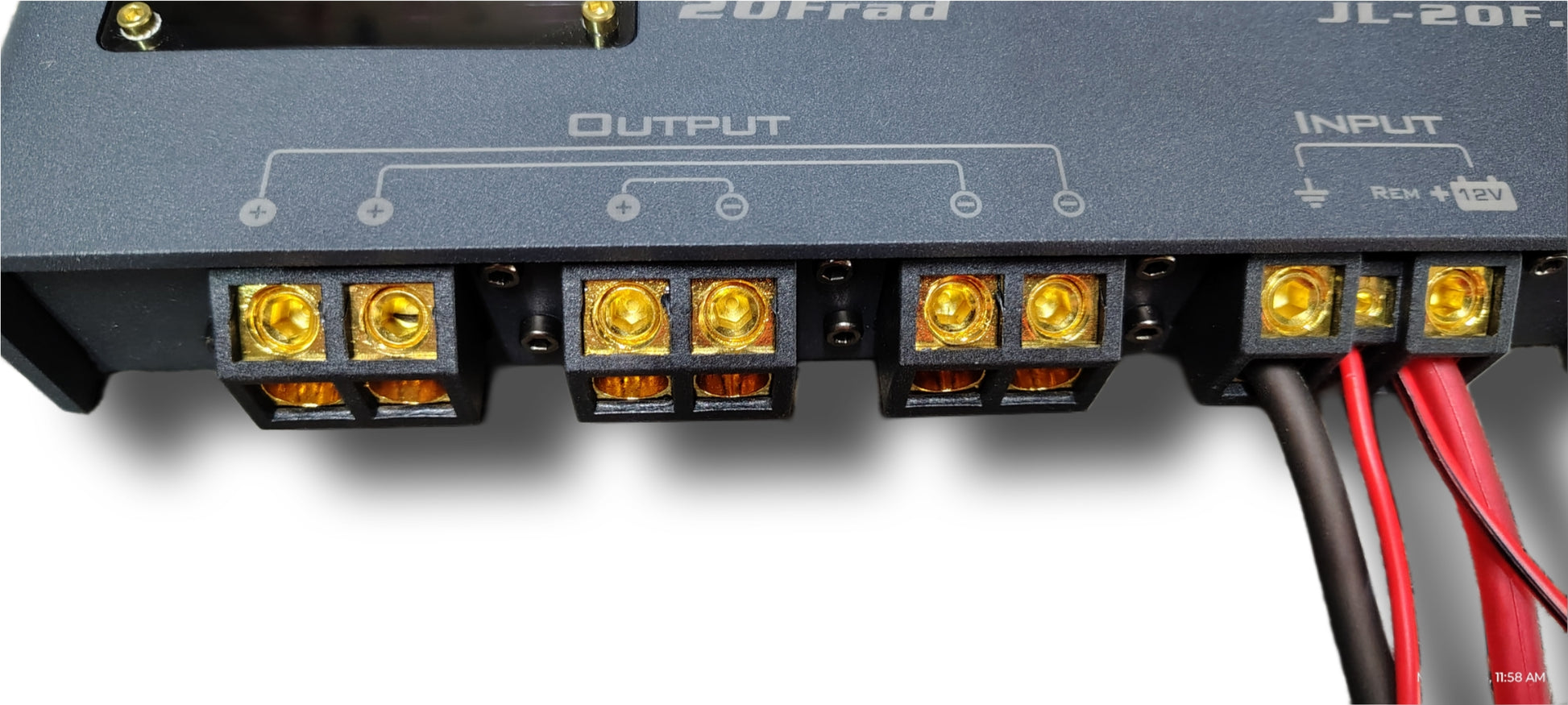

1. Connect 4-gauge input to battery positive (+).

2. Connect output leads to amplifier or power distribution block.

3. Connect ground to chassis or negative battery terminal.

4. Observe the precharge bulb — it will light up during initial charge and fade as full charge is reached.

5. Once the bulb dims completely, the capacitor is ready for use.

Warranty

 Running this Equipment below recommend ratings will likely blow and burn the board. No warranty will be given when the board is burnt NO EXCEPTIONS.

Product defect Warranty

Period is 30 Days from the date of purchase. If you burn the equipment, or burn the boards we know this is from either improper voltage, improper wiring, or playing while clipping which can result in burning the PCB board which is not covered under warranty. NO EXCEPTIONS.

This warranty does not cover improper installation, accidental damage, misuse, abuse, improper wiring, operation of unit outside of specification, or any product that has been modified or repaired by anyone other than Blurred Vision Audio.

Your warranty covers defects in materials and/or workmanship ONLY and is not an insurance policy. The warranty only covers the original owner of the equipment.

You are responsible for the cost of shipping your equipment back to us for warranty examination.

If your Equipment is covered under warranty shipping back to you will be no charge – if your Equipment is replaced/repaired outside of warranty or if no defect is found and your product must be returned to you then shipping will be billed to you.
