Blurred Vision Audio StreetBeats12.4

🔊 Blurred Vision Audio StreetBeats12.4 – Precision Meets Power

Blurred Vision Audio StreetBeats12.4 steps up to a larger, more powerful motor for increased motor strength and control. Designed for enthusiasts who crave both power and precision on a budget, this subwoofer is built to perform under pressure.

To keep things cool when the music heats up, the StreetBeats12.4 has pole vent cooling system, allowing air to flow freely through both ends of the motor. Combined with weaved tinsel leads, this subwoofer is built for long-term durability and consistent, hard-hitting performance.

Improving overall sound clarity. We also tuned the suspension and added a higher roll surround, allowing for greater Xmax and smoother low-frequency response.

⚙️ Performance Highlights

RMS Power Handling: 500–1000 Watts

Shorting Ring Technology for reduced inductance and cleaner sound

Nomex Progressive Spiders for superior suspension control

Medium High-Roll Surround for improved excursion and linearity

Pole Vent Cooling System for enhanced thermal management

Weaved Tinsel Leads for long-lasting durability

Optimized for both sealed and ported enclosures

🎶 Versatile Power, Everyday Performance

Whether you’re chasing thunderous output or looking to blend smooth, deep bass into your daily driver, the StreetBeats12.4 delivers. Its balanced design allows it to shine in smaller sealed boxes or in larger, high-output ported enclosures.

The StreetBeats12.4 is conservatively rated yet engineered to handle more — giving you class-leading sound quality and vision-blurring bass without draining your wallet.

If you demand performance, durability, and value in one package, the StreetBeats12.4 is your sound solution.

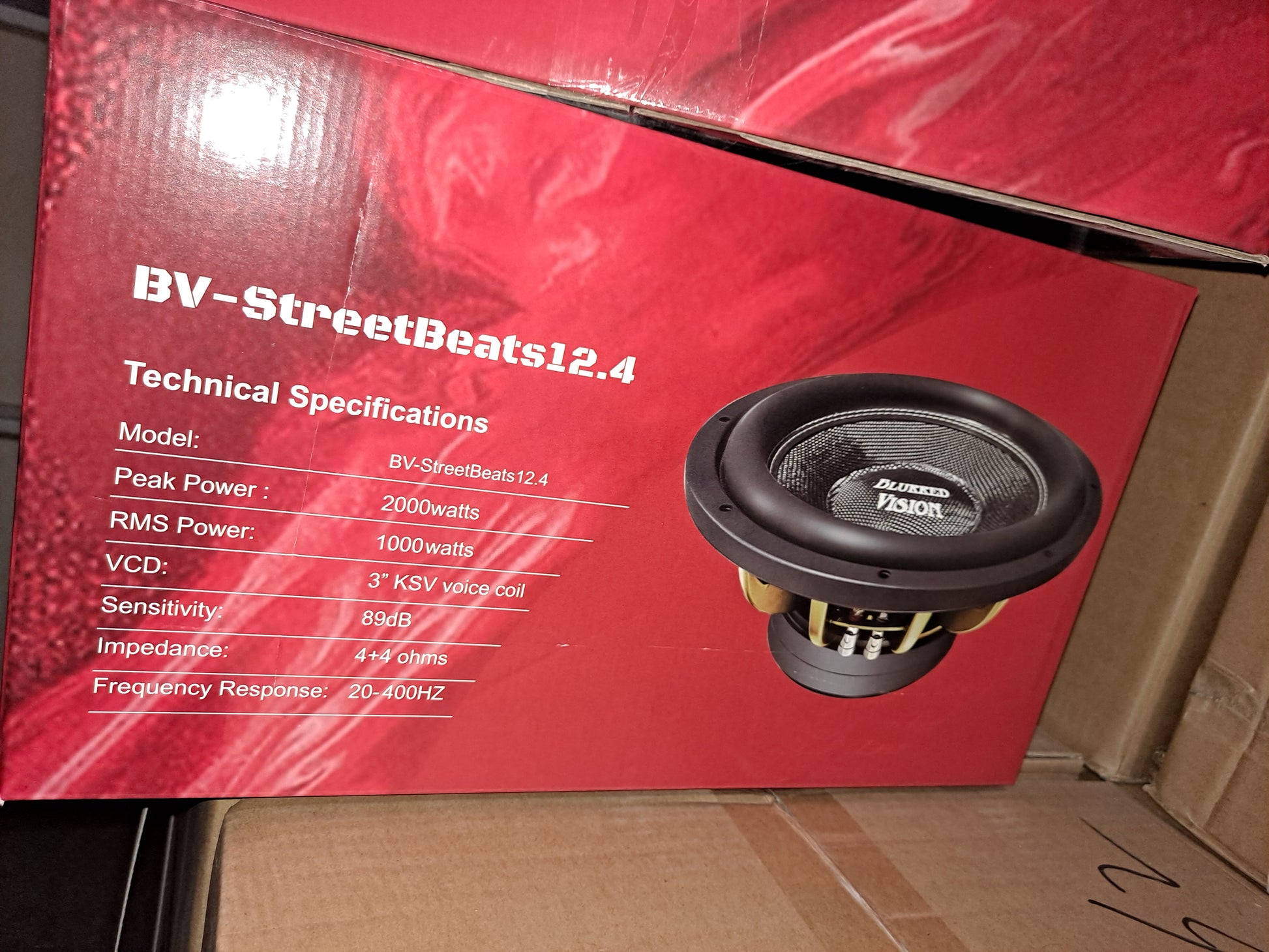

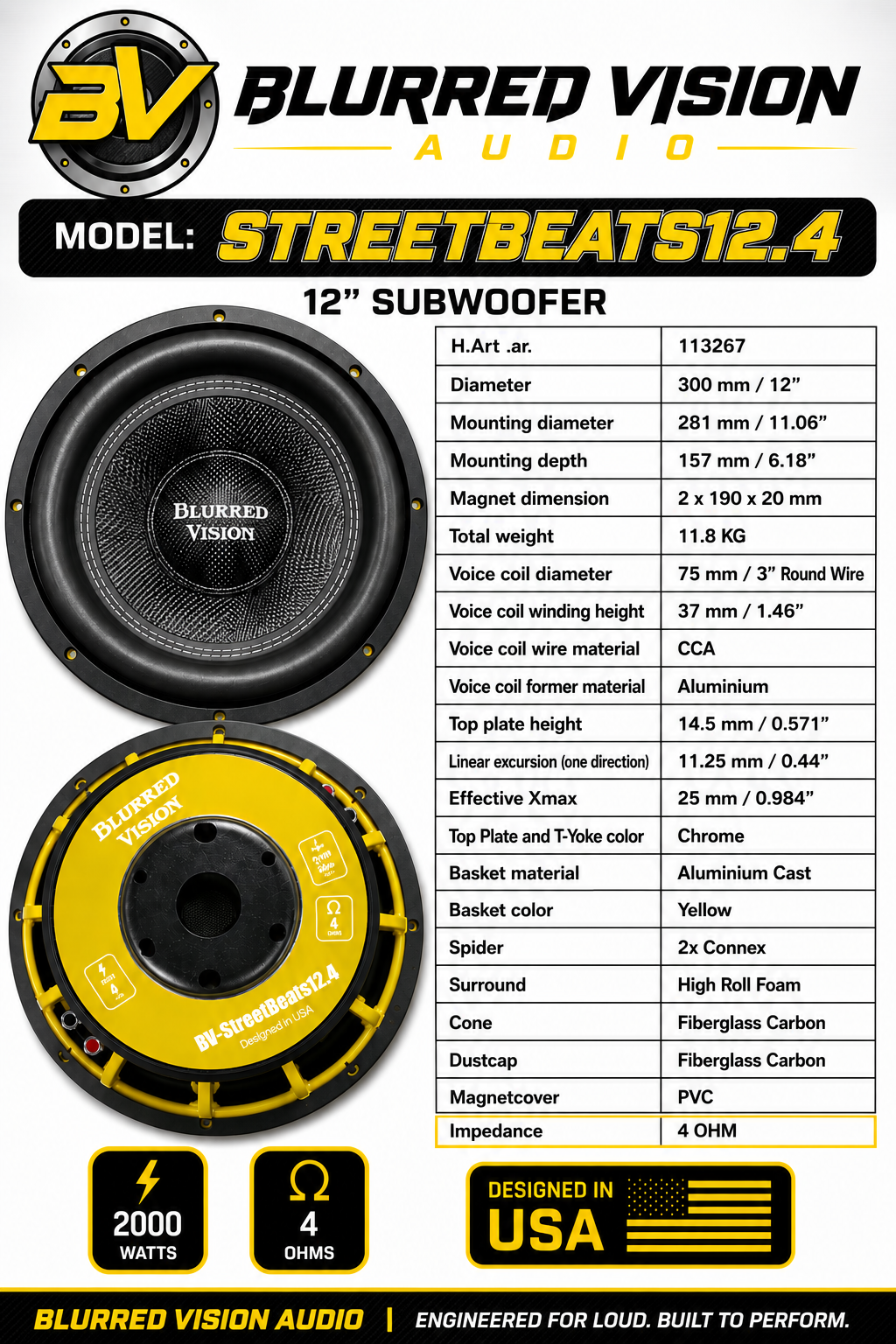

Impedance: Dual 4 ohm

Xmax: 24mm (One-way)

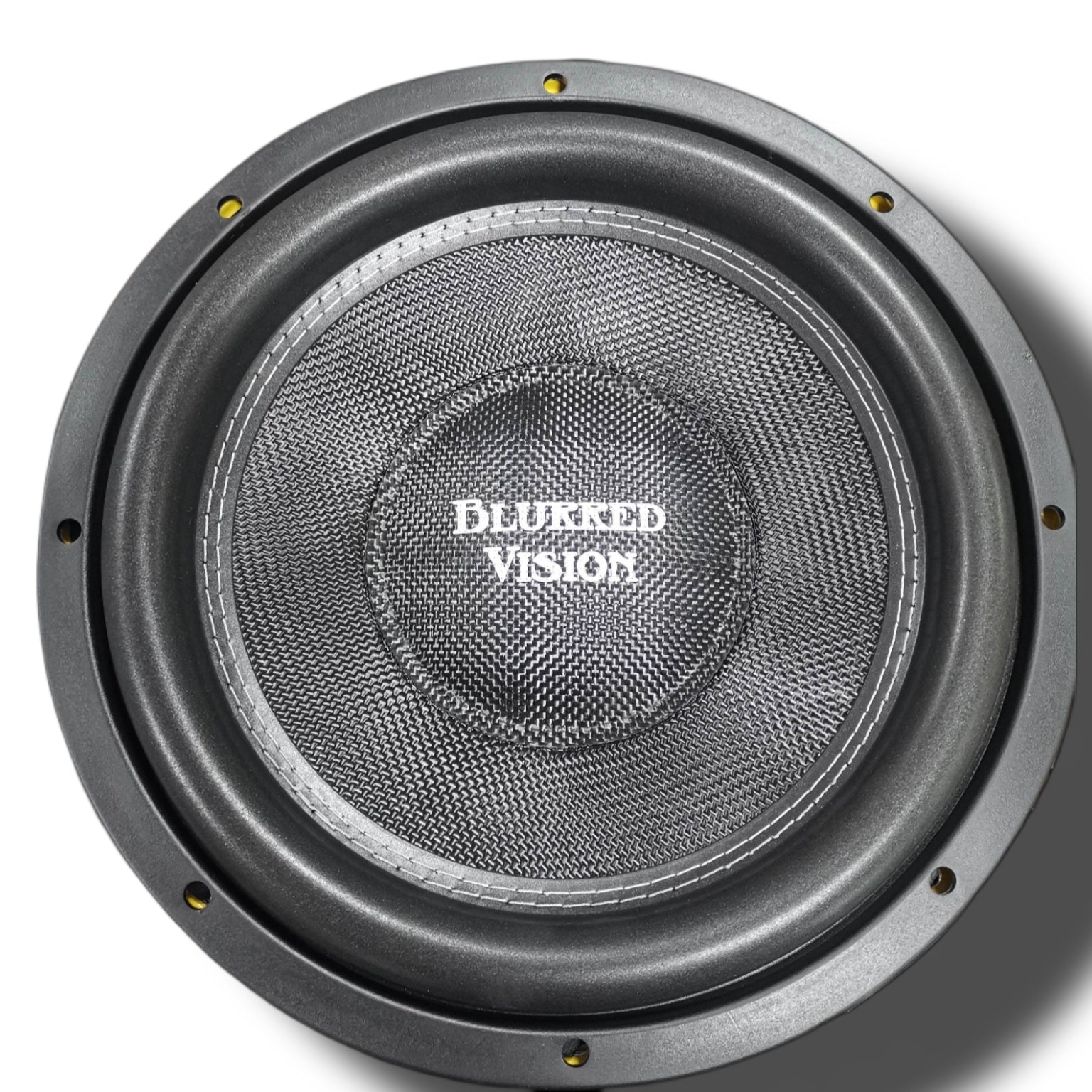

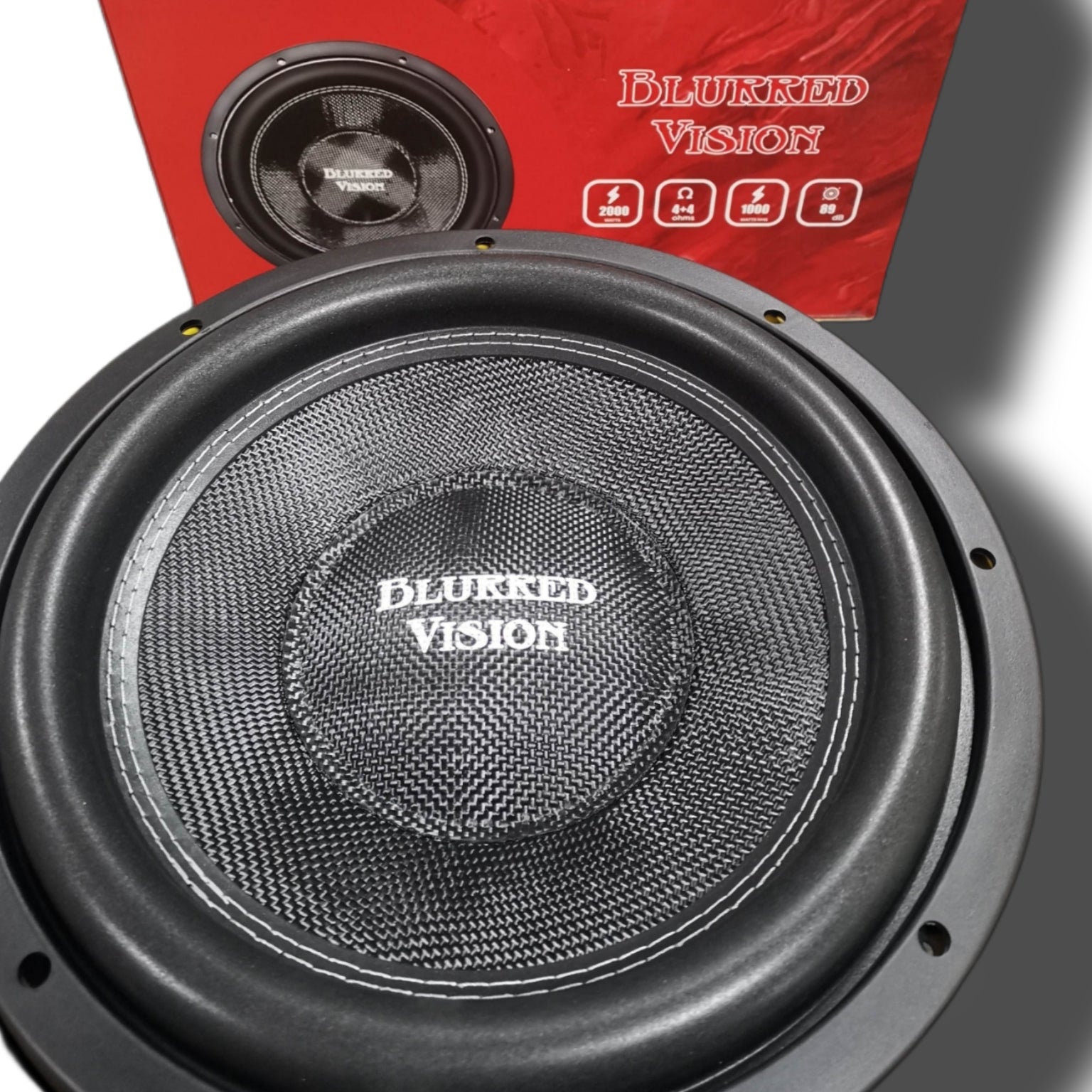

Fiberglass Enhanced Non-Pressed Paper Cone

Custom Medium/High Roll foam surround with white nylon stitching

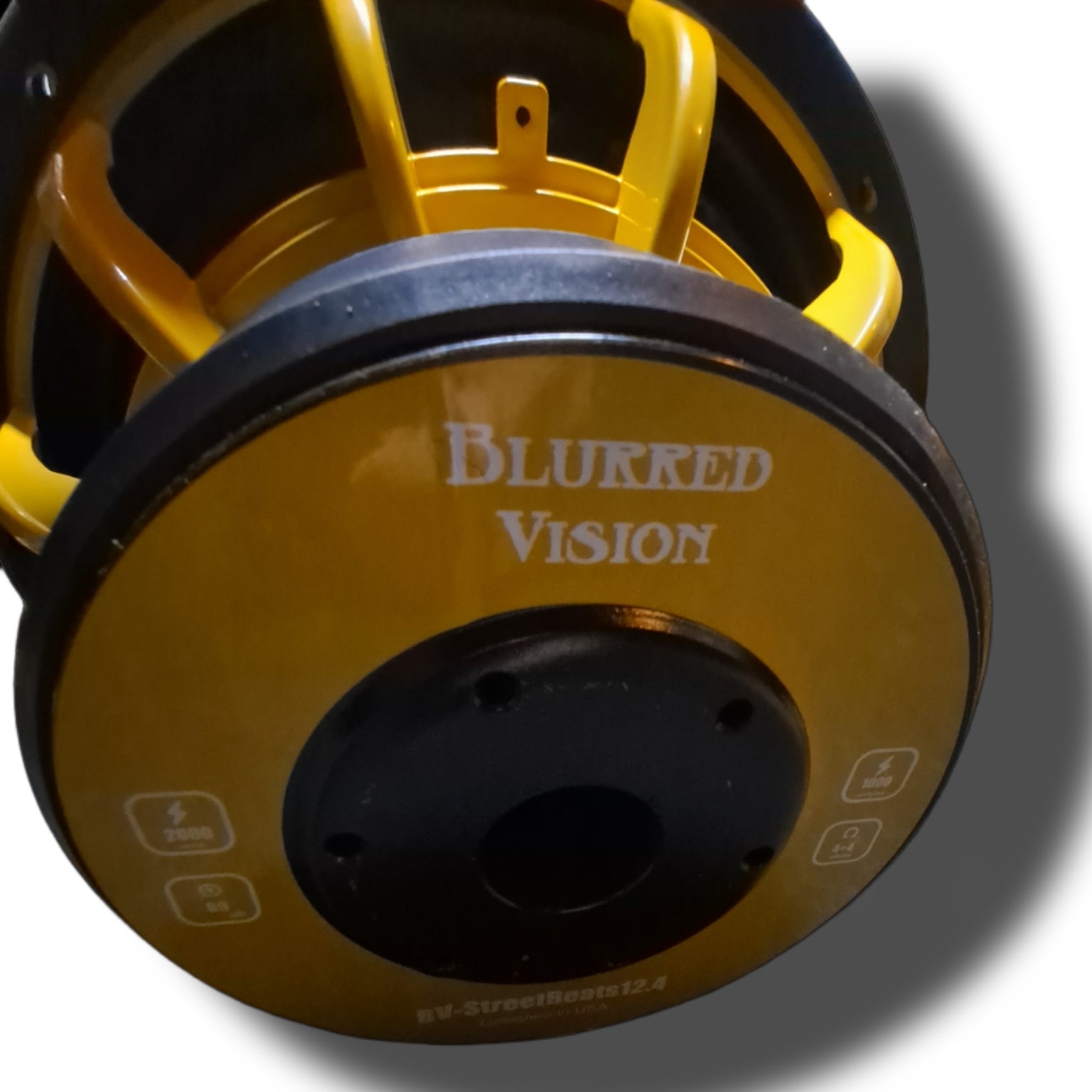

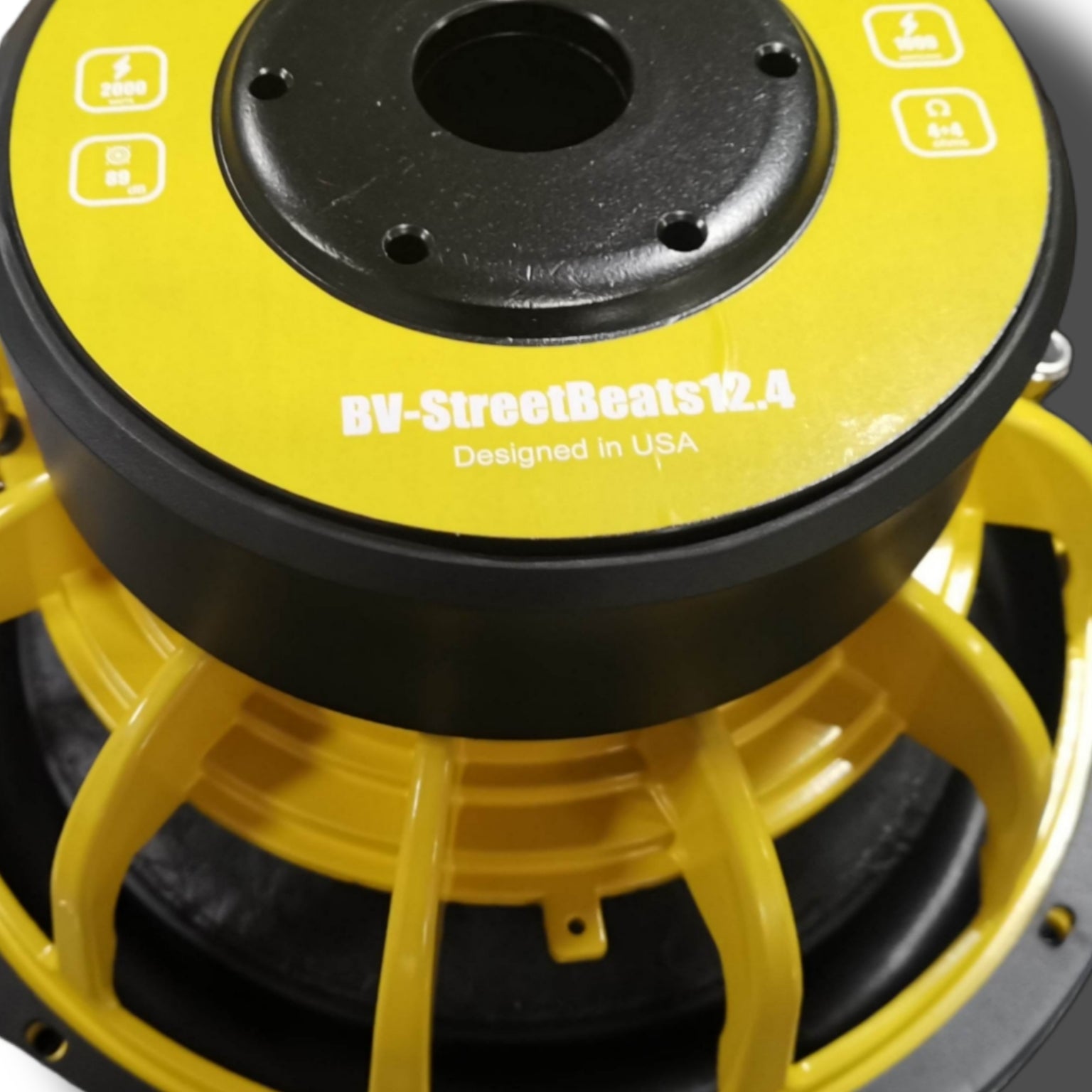

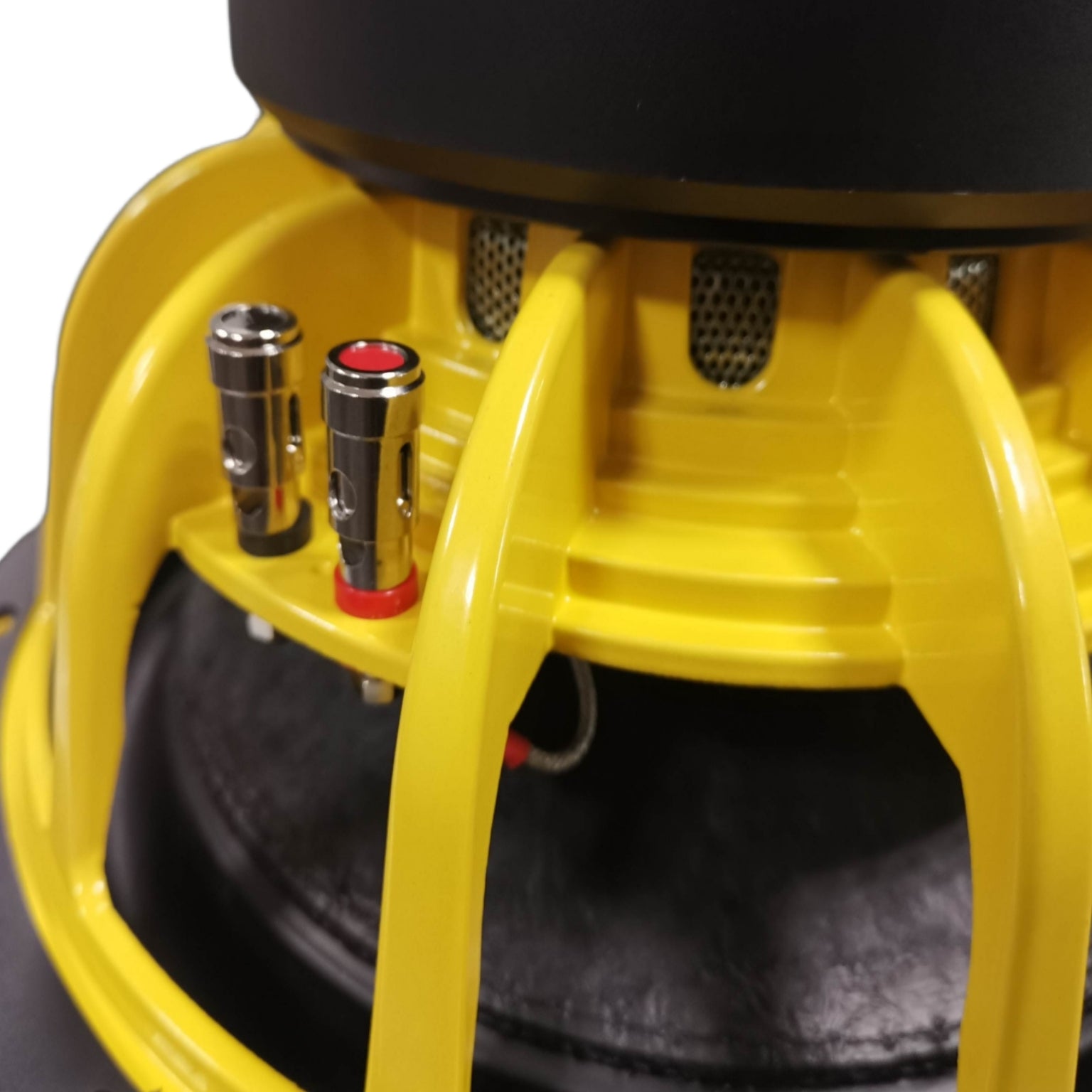

Die Cast aluminum vented 8 Spoke basket

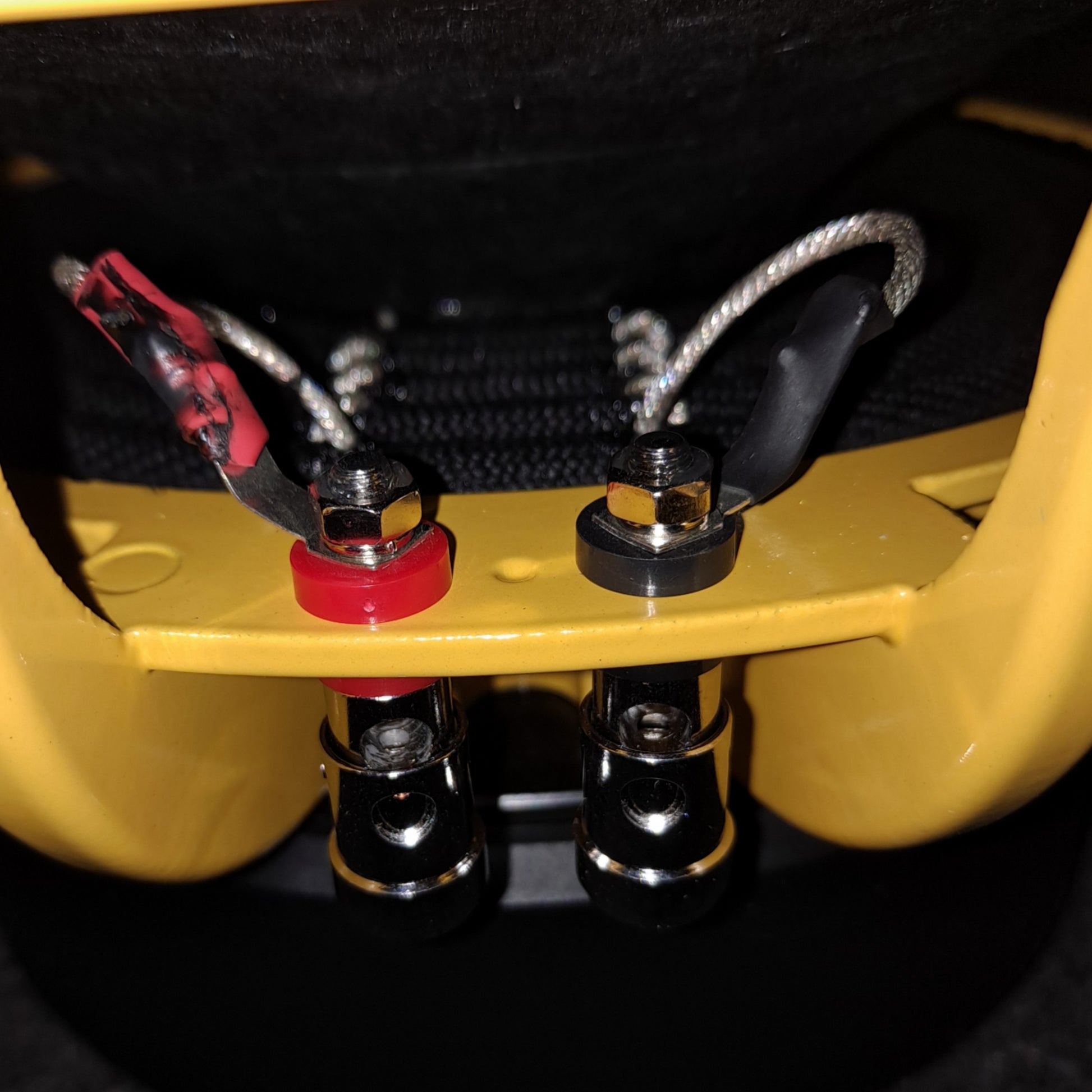

Dual Progressive spiders with Integrated Flat Braided Tinsel Leads

3” 4-Layer High Temperature solid copper  Voice coil

Optimized high-velocity pole vent

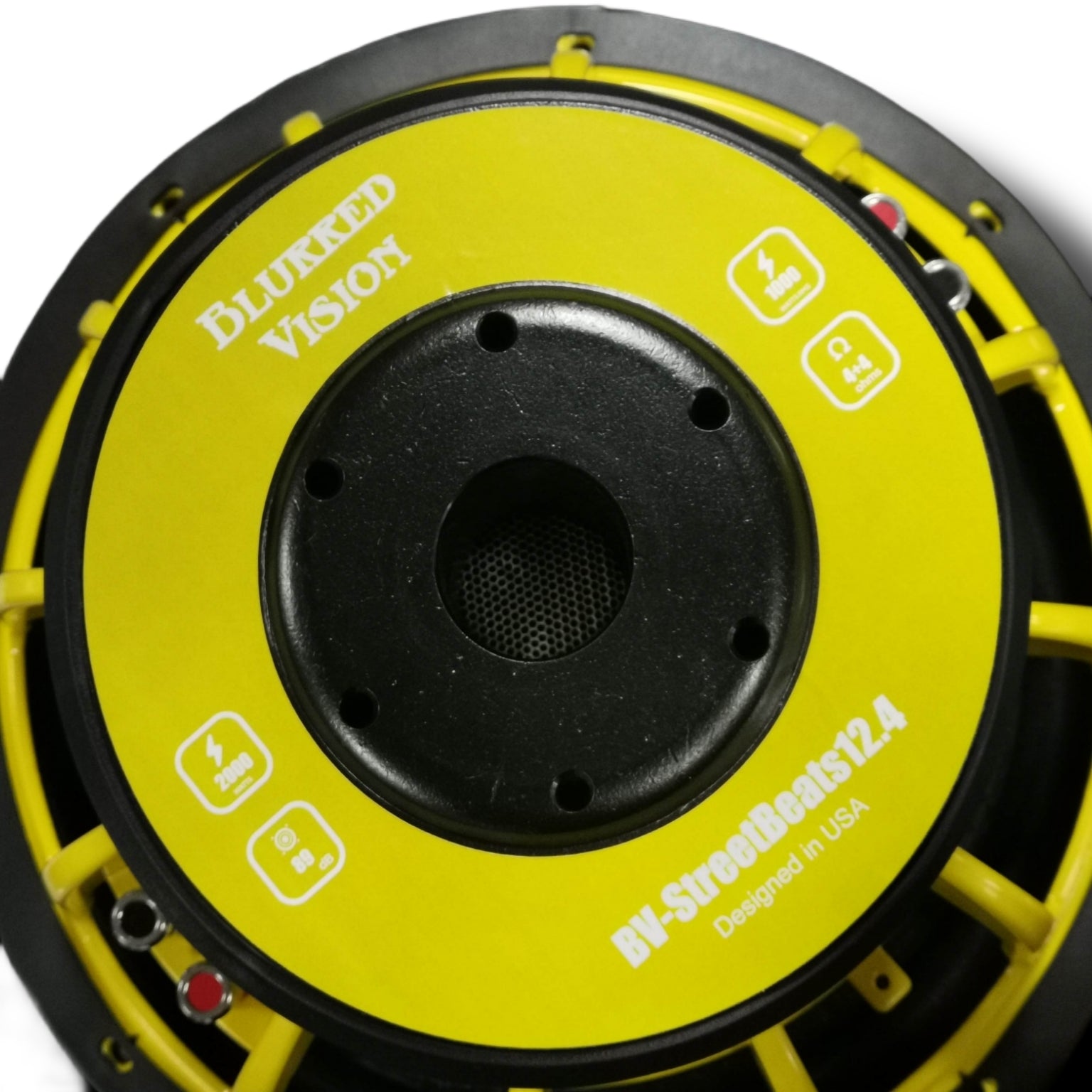

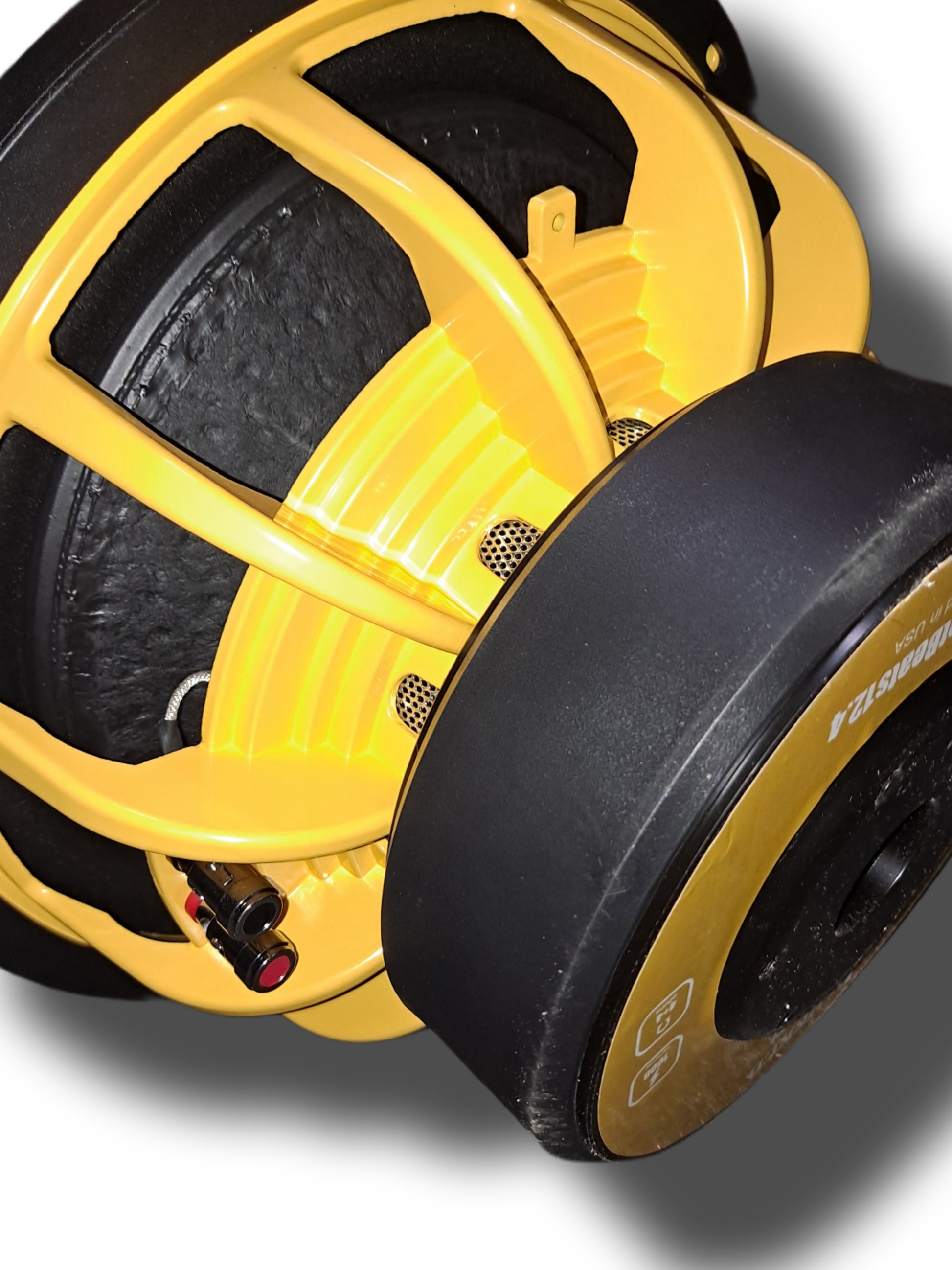

One piece T-Yoke with vented magnet gap

150 oz. stacked High Energy Y35 grade ferrite magnets with protective rubber boot

500-1000 RMS

2000 Max

Dual 4 ohm

Frequency response: 20-400 Hz

Resonance Frequency (Fs): 32 Hz

Top-mount depth: 7.02"

Sensitivity: 89dB

Perfect — this gives full data for your Blurred Vision Audio BVSTREETBEATS 12.4.

Let’s design a ported enclosure tuned to 34 Hz (for daily, musical, deep output).

🔊 Ported Enclosure Design

Driver: Blurred Vision BVSTREETBEATS 12.4

Tuning: 34 Hz

Power Handling: 500–1200 W RMS

Use: Daily / Street Loud SPL

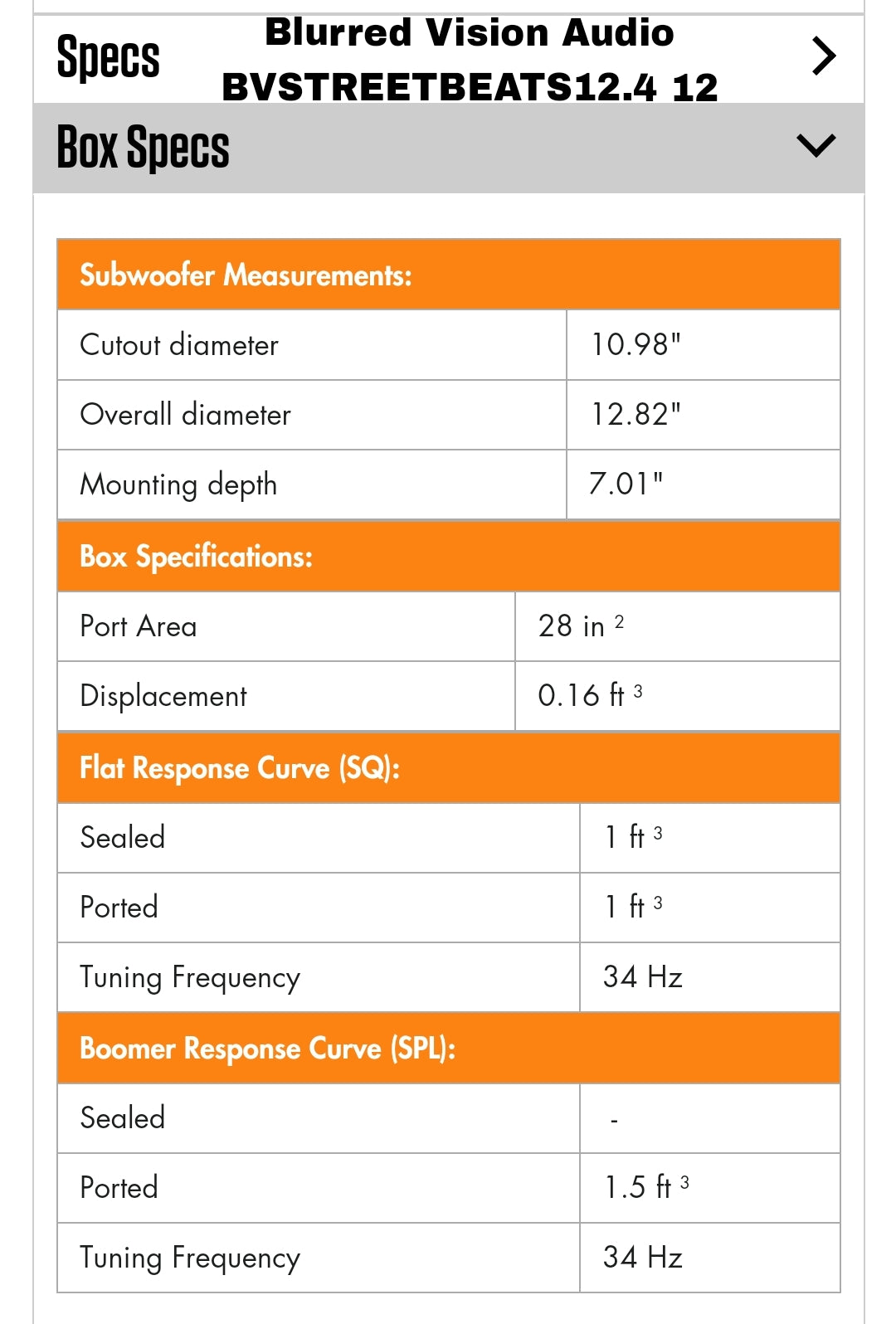

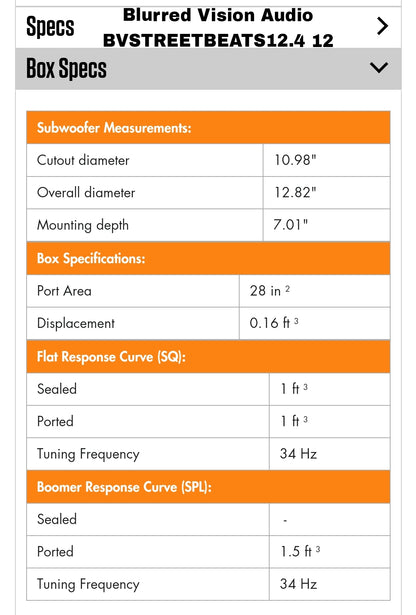

📦 Box Specifications

Net Internal Volume-1.50 ft³ (42.5 L)

Port Area-28 in²

Port Type-Slot (L-shaped)

Port Dimensions 2″ W × 14″ H × 24.5″ L

Wall Thickness-¾″ MDF

Mounting Depth Clearance

≥ 7.25″

📐 Cut Sheet (External Dimensions)

(Assumes front-firing sub and port; all ¾″ MDF)

Dimensions

Front / Back 2-28″ W × 15″ H

Top / Bottom 2-28″ W × 15″ D

Sides 2-13.5″ H × 15″ D

Port Divider1-14″ H × 24.5″ L

➡️ Final External Size: ≈ 28″ W × 15″ H × 15″ D

➡️ Net Volume (after port + driver displacement): ≈ 1.5 ft³

➡️ Tuning Frequency: ≈ 34 Hz

⚙️ Performance

Deep, strong response from 30–55 Hz

Excellent balance of SQ & SPL

Works great for daily bass with 34 Hz tuning

Optional: Add light polyfill on back wall for smoother roll-off
