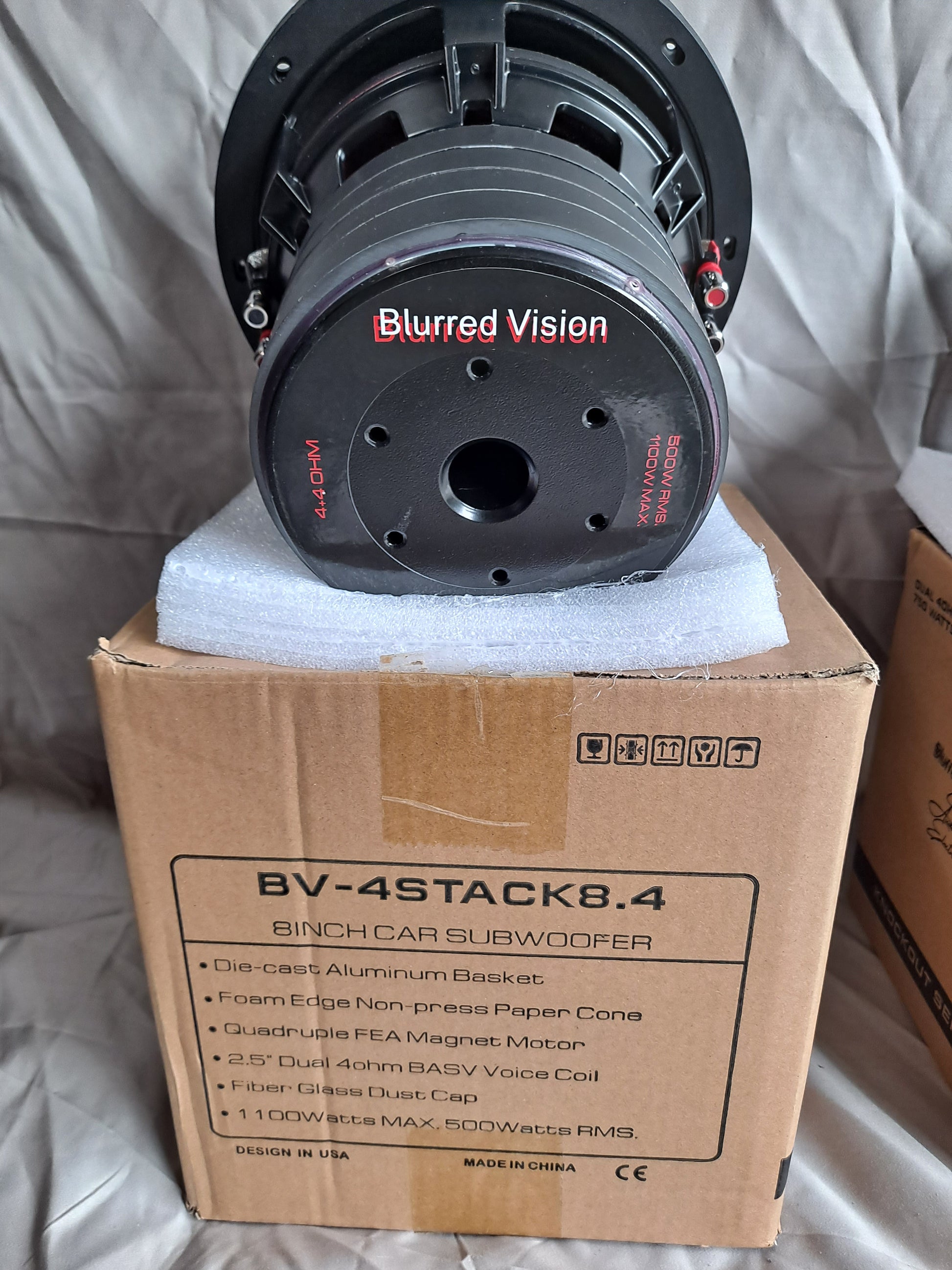

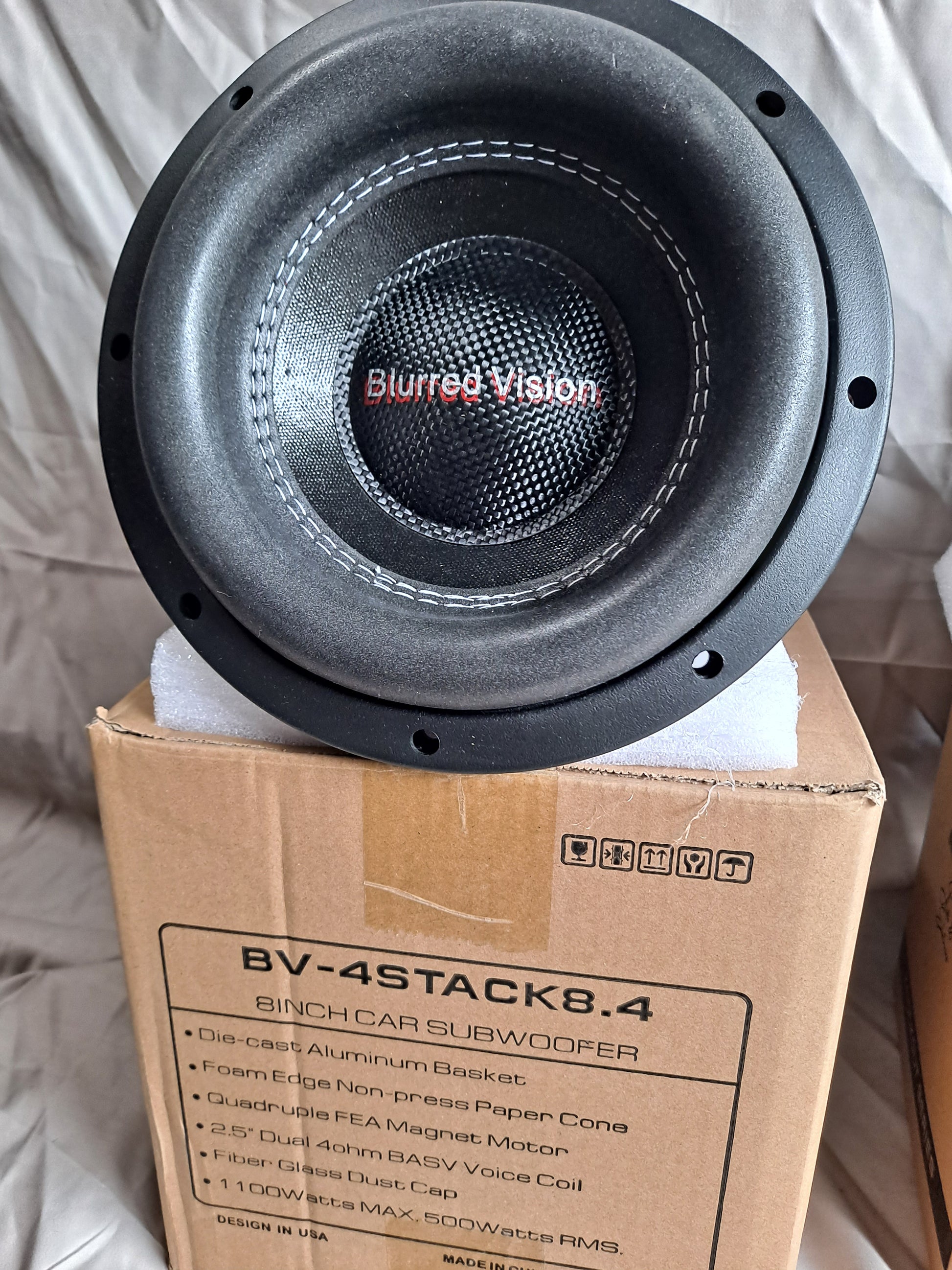

Blurred Vision Audio KNOCKOUT SERIES BV-4STACK8.4 8"

🥊 Blurred Vision Audio BV-Knockout Series – BV-4Stack8.4



Don’t let the size fool you — this 8" subwoofer hits harder than most larger drivers!



Engineered to deliver clean, powerful, and precise bass in a compact form, the BV-4Stack8.4 from the Knockout Series packs serious punch and performance. Perfect for small enclosures or multi-sub setups, this little monster is built to take every note you throw at it without missing a beat.

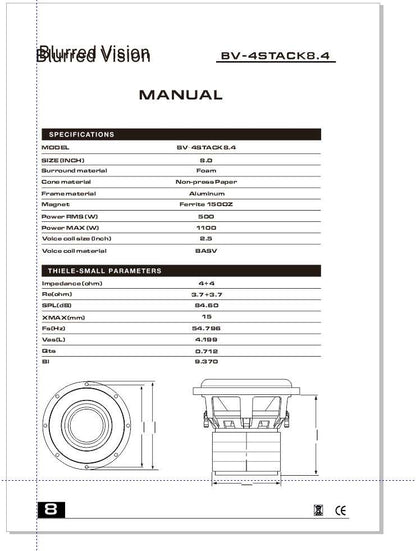

📋 Specifications



Feature Specification



Subwoofer Size 8"



Peak Power 1,100 Watts



RMS Power 500 Watts



Frequency Response 30 Hz – 1,200 Hz



Sensitivity 84.6 dB

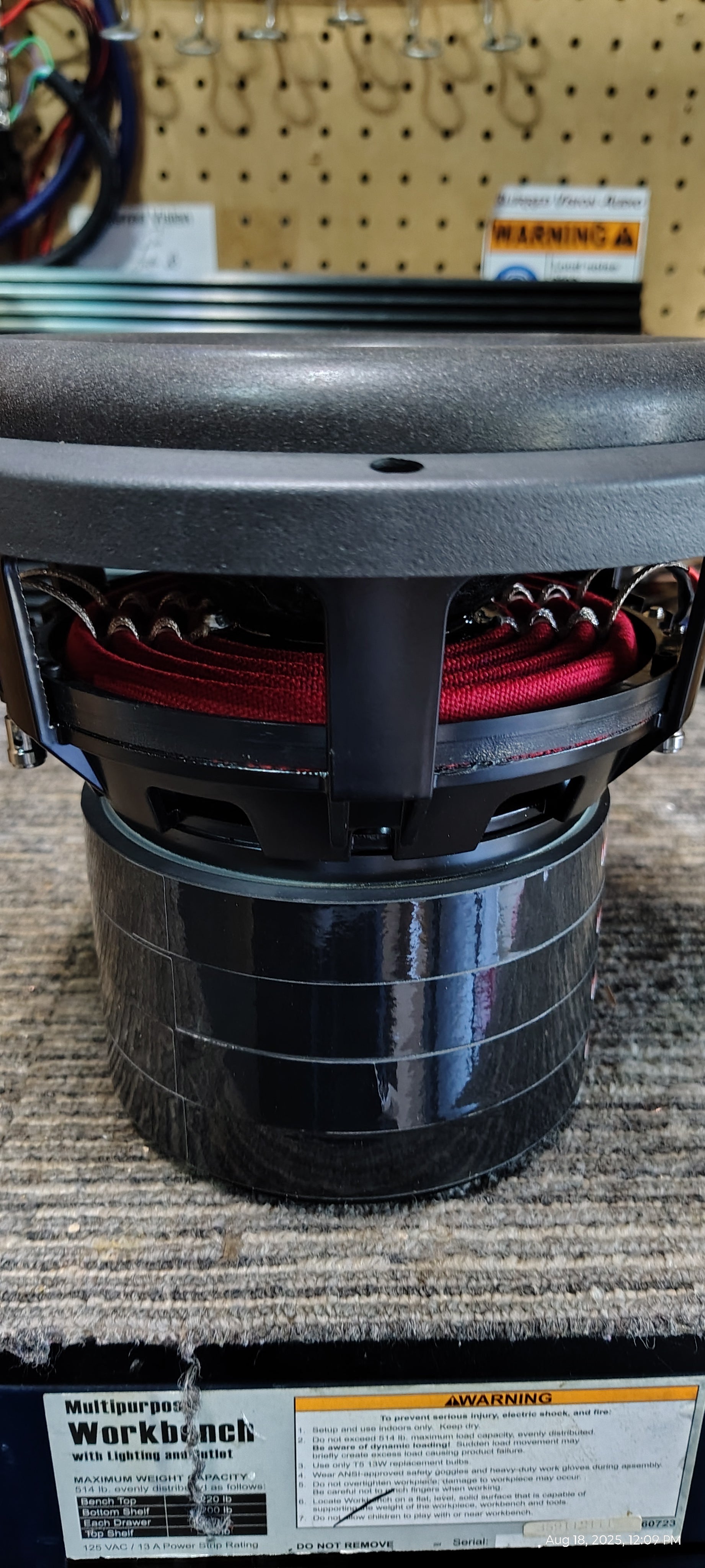

Voice Coil 2.5" 4-Layer High-Temp Kapton BASV



Impedance Dual 4 Ω (2x4Ω)



Xmax 15 mm

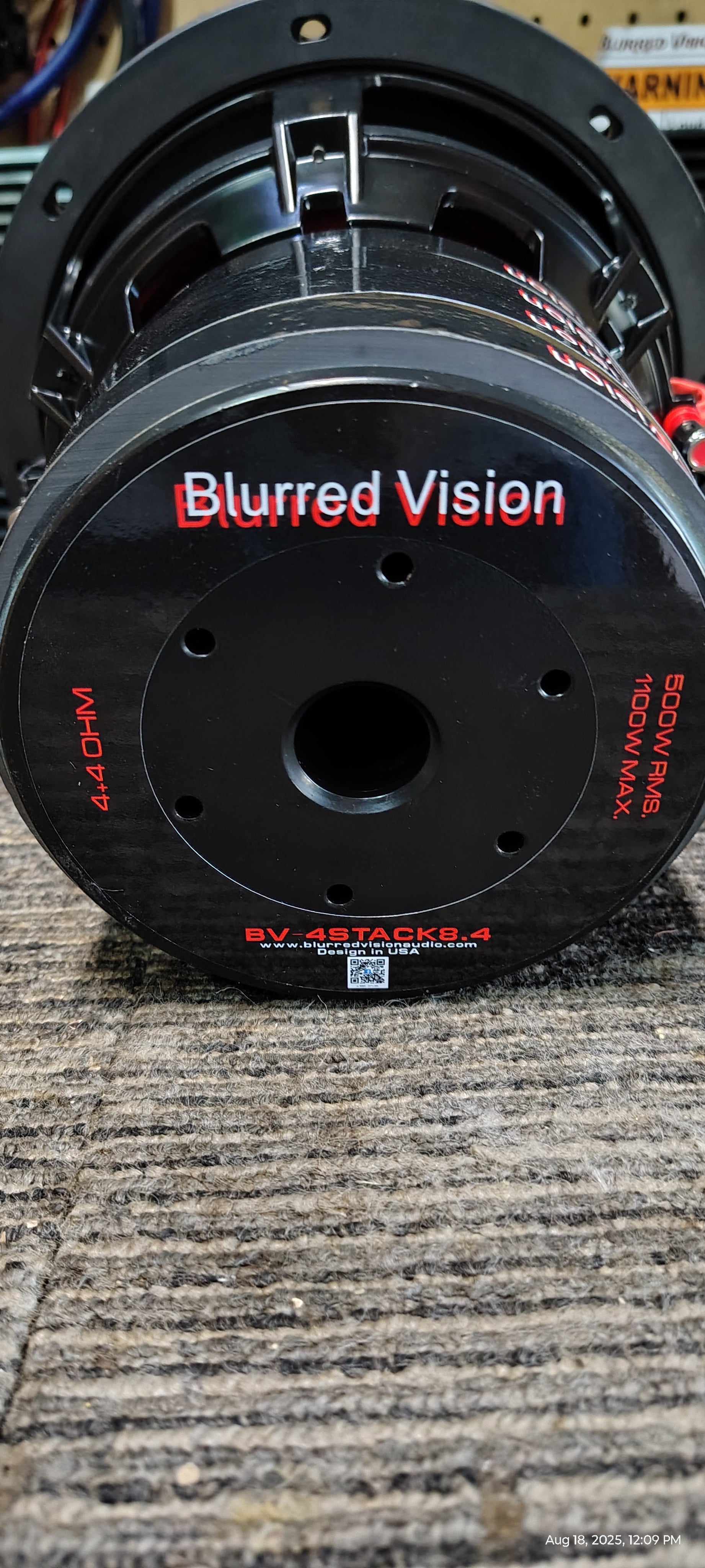

Magnet Size 150 oz

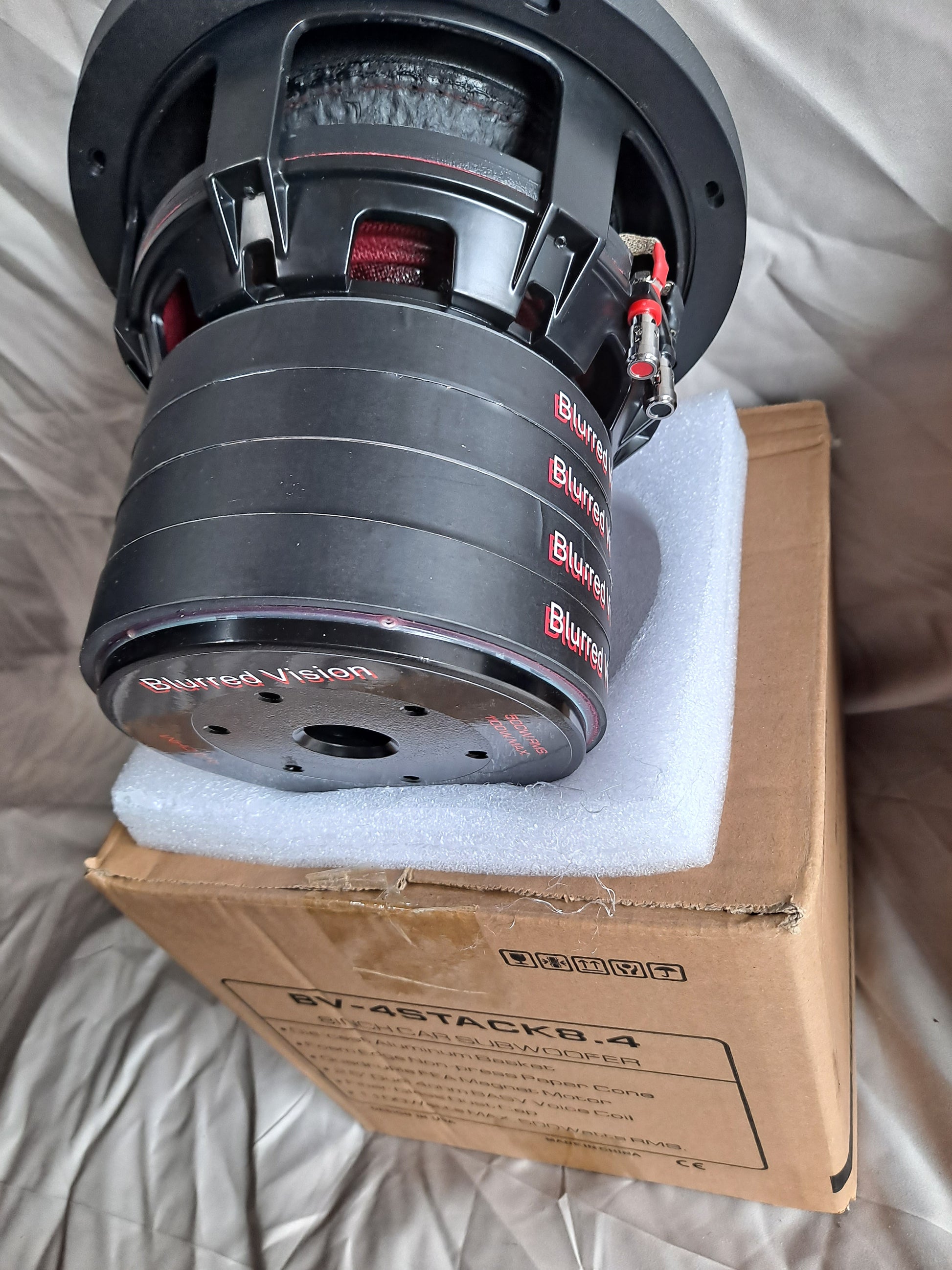

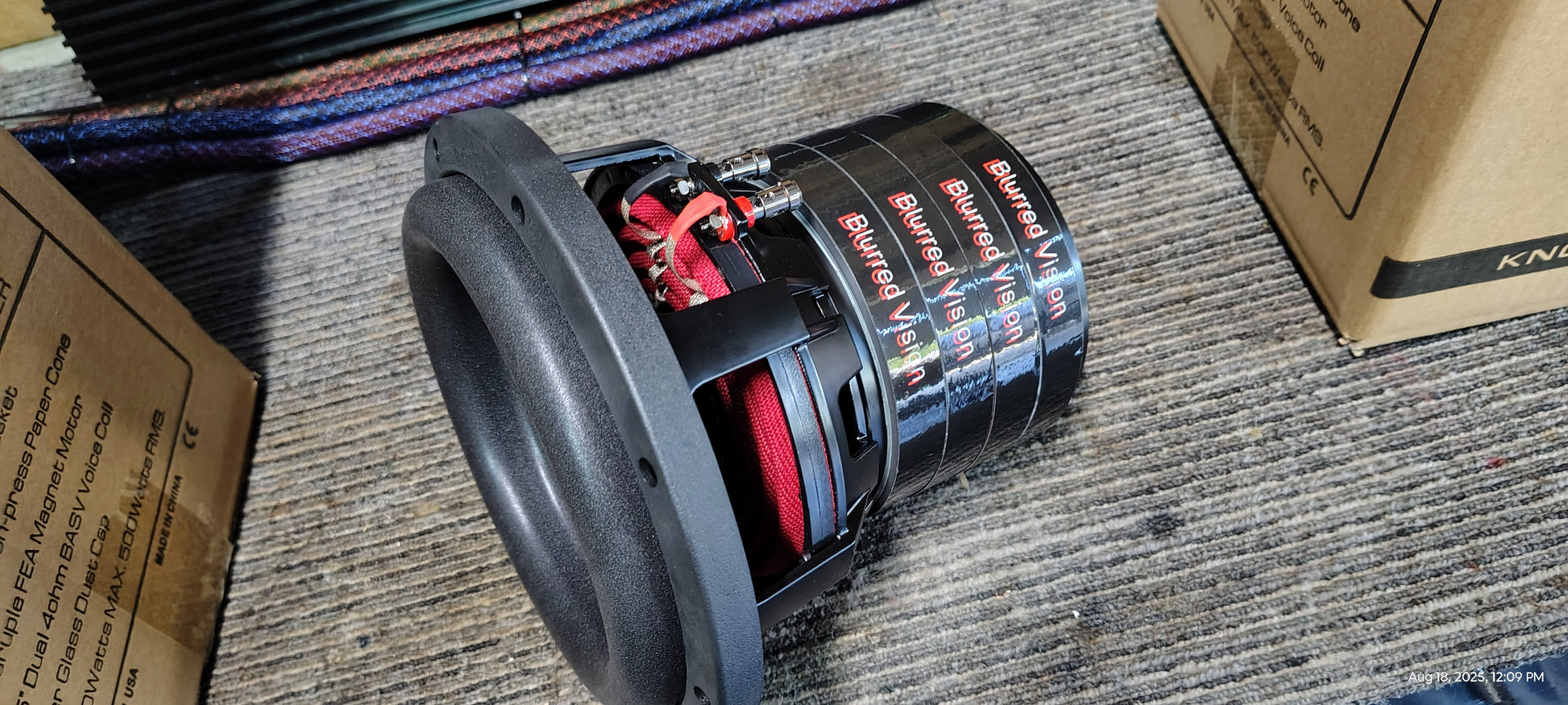

Basket Type Powder-Coated Black Die-Cast Aluminum

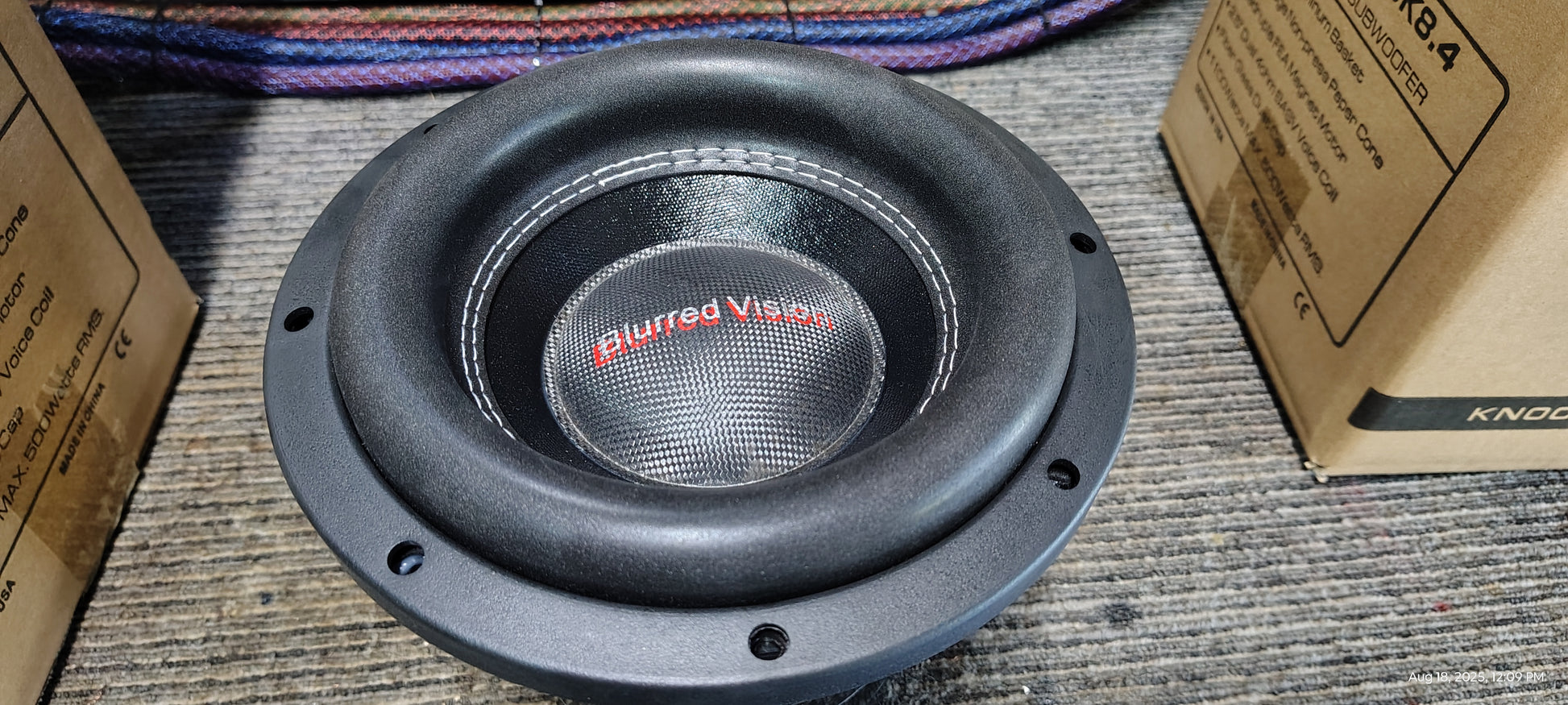

Cone Material Pressed Paper with Carbon Fiber Finish

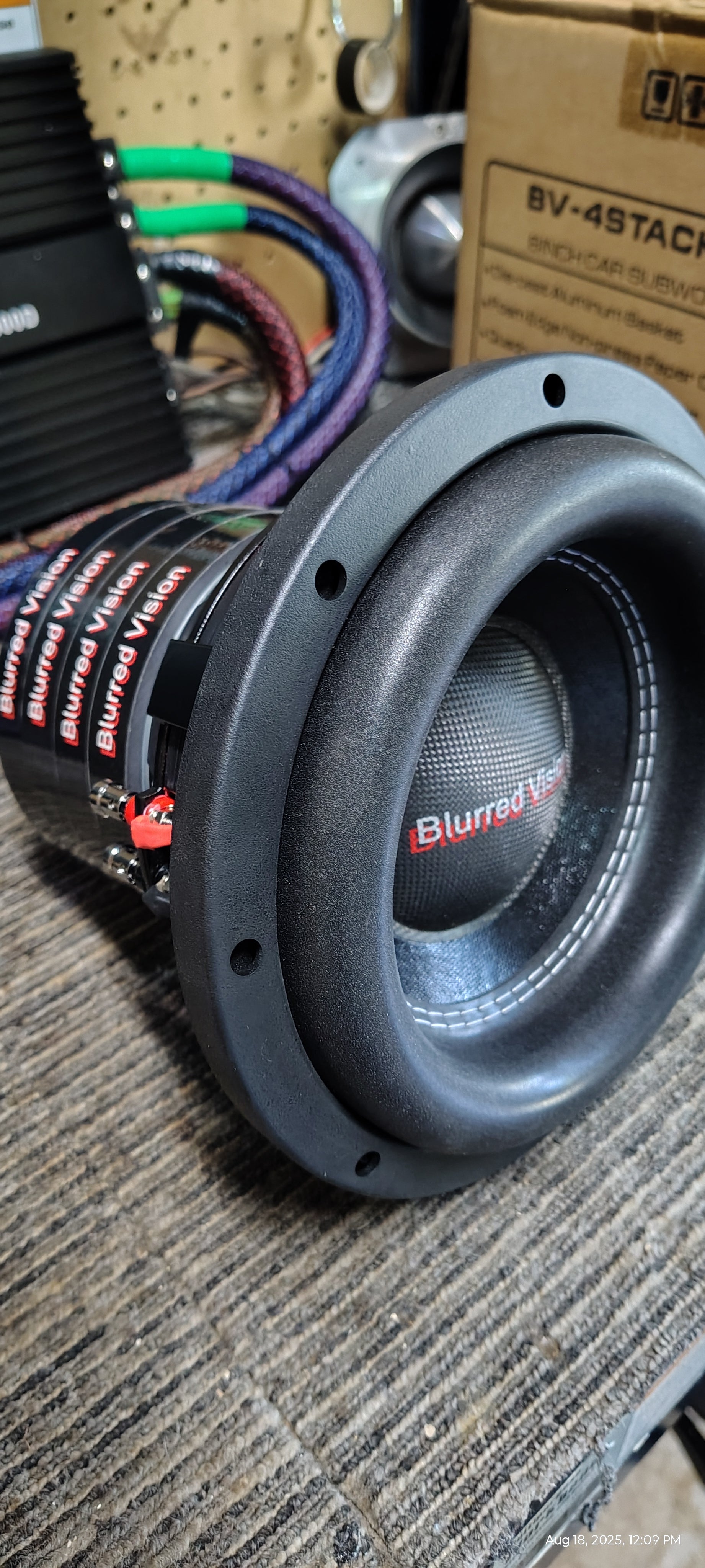

Surround Type Custom 1" High-Roll Foam

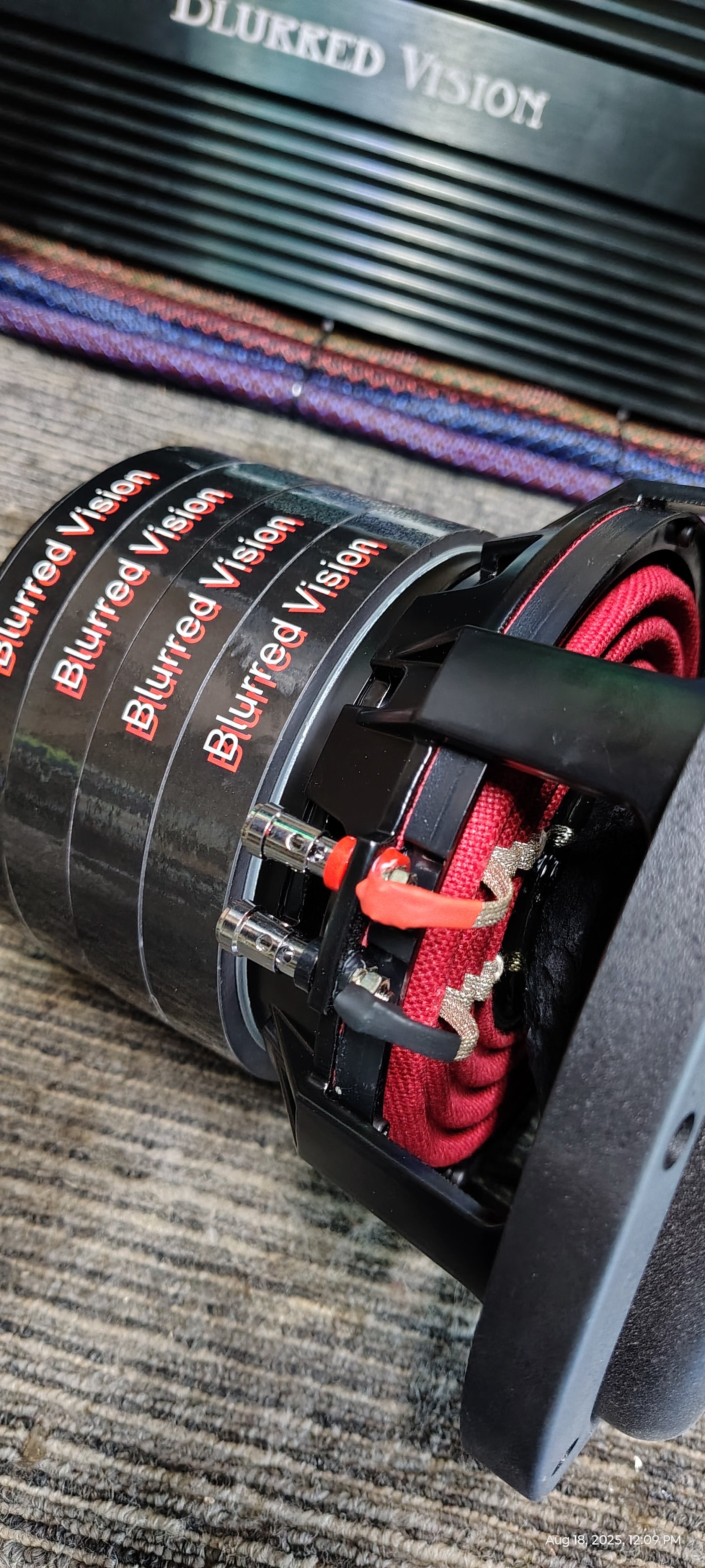

Tinsel Leads XL Flat Sewn-In Heavy-Duty Leads



Terminals Silver Push Spring-Loaded Terminals



Mounting Depth 6.5"



Overall Diameter 8.75"

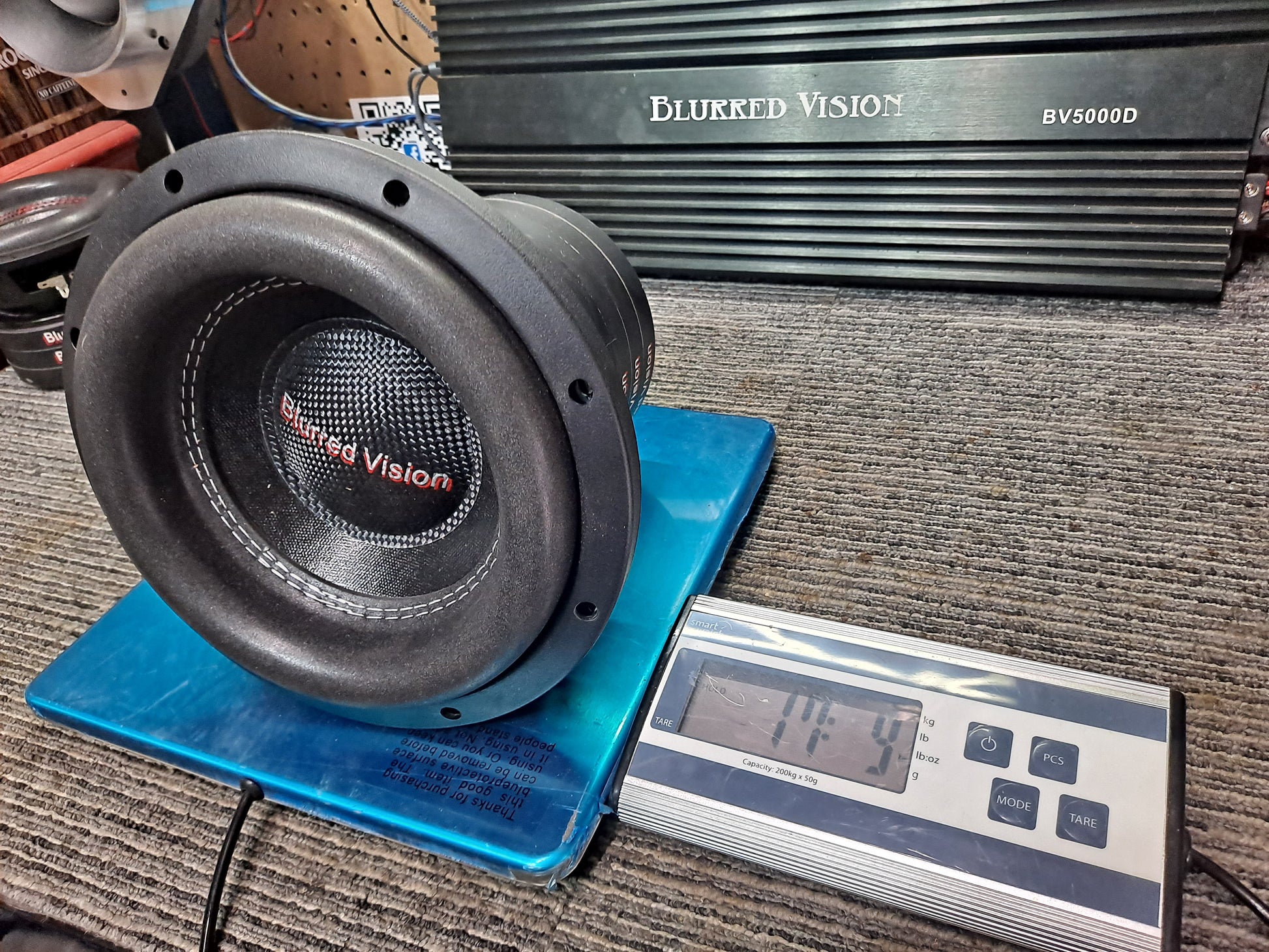

Weight 18 lbs



💪 Performance Highlights



Compact 8-inch powerhouse designed for clean, tight, and responsive bass.



2.5-inch 4-layer Kapton voice coil provides exceptional power handling and thermal stability.



High-roll foam surround and carbon fiber cone deliver precise low-end control and durability.



Die-cast aluminum basket ensures strength, rigidity, and reduced resonance.



Flat sewn-in tinsel leads for increased reliability under high excursion.



🔊 Small Size, Knockout Sound



The BV-4Stack8.4 lives up to its name — a small subwoofer with knockout performance. Whether you’re running a compact system or building an array of subs, this unit delivers deep, accurate bass that stands up to much larger competitors.



Blurred Vision Audio’s Knockout Series proves that size isn’t everything — it’s all about precision, design, and raw output.



 Additional Information

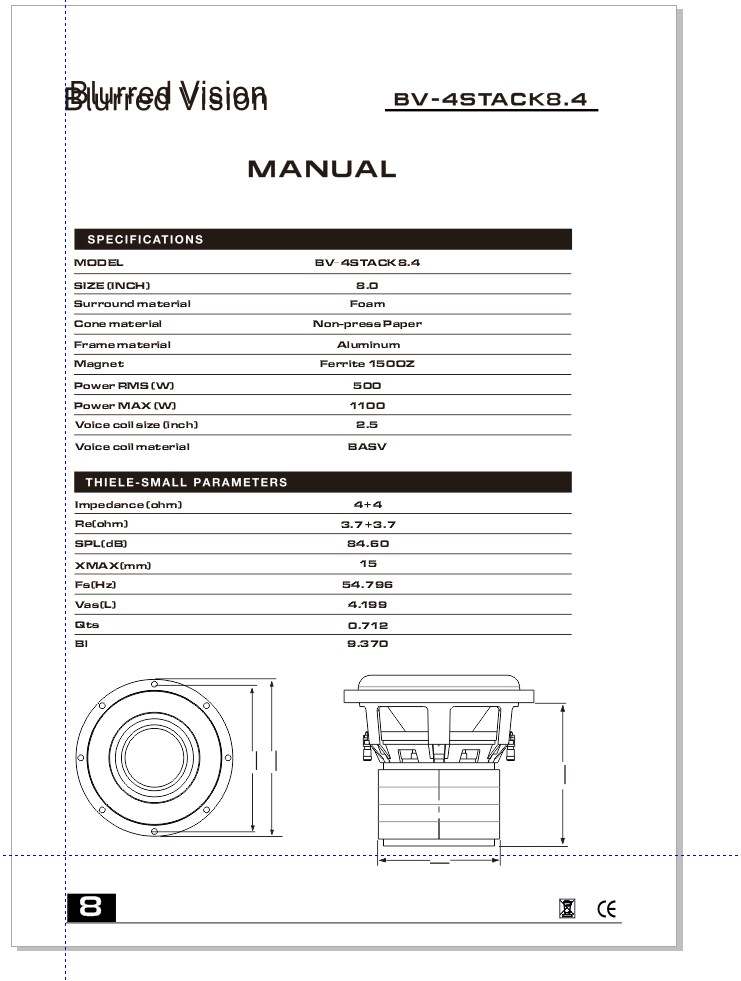

This Blurred Vision BV-4STACK 8.4 subwoofer (8", 4+4 Ω, 500 W RMS, Qts 0.712, Vas ≈ 4.2 L, Fs ≈ 55 Hz) wants a compact, low-tuned ported box for deep daily use.



Here’s a design that’ll hit hard while keeping clean low end extension:



🔊 Ported Enclosure Design (Daily Bass / SQL Style)



Driver: Blurred Vision BV-4STACK 8.4 (8″, dual 4 Ω)



Tuning: 36 Hz



Power: 500 W RMS



Style: Daily music / deep punch



📦 Box Specs



Net Internal Volume-0.65 ft³ (18.4 L)



Tuning Frequency-36 Hz



Port Area-10 in²



Port Type-Slot port, L-shaped (inside box)



Port Dimensions-1.25″ wide × 8″ tall × 18″ long



Wall Material



¾″ (19 mm) MDF



Mounting Depth Clearance≥ 6″



📐 Cut Sheet (External Dimensions)



(Assumes ¾″ MDF and front-firing port/sub)



Front / Back (1)x14″W × 10″ H



Top / Bottom (1)x14″W × 12″ D



Sides (2)x10″H ×12″ D



Port Divider (1)-8″H × 18″ L (inside)



➡️ Final external size: ~



14″W*10″*H*12"D



➡️ Net volume after port & driver displacement: ≈ 0.65 ft³



➡️ Tuned to: ≈ 36 Hz



🎶 Performance Notes



Strong output 35–60 Hz, ideal for street or daily setups



Smooth roll-off below 30 Hz (safe for excursion)



Works great with 250–500 W RMS amps



If you like tighter punch, shorten the port to 14″ → tune ≈ 40 Hz
