Blurred Vision Audio Diamond Series DS-3K.1D (3000RMS) 1 Ohm

⚡ Blurred Vision Audio DS-3K.1D – Compact Full-Range Amplifier

High-Power Performance in a Small Footprint

The DS-3K.1D is a compact, high-efficiency Class D full-range amplifier engineered for serious audio enthusiasts. Despite its small size, it delivers massive power output, advanced equalization features, and full-range frequency coverage from 10Hz to 20kHz, making it ideal for powering subwoofers, woofers, drivers, and tweeters alike.

🔧 Key Features

Compact Class D Design – Efficient 85–95% power conversion.

1-Channel Full-Range Amplifier – Optimized for subwoofers and full-range systems.

Advanced Equalization – Independent Bass, Mid-Bass, and Mid-High controls.

Built-In Protection – Thermal, voltage, speaker, and DC protection.

Integrated Cooling – 4 high-powered fans for maximum heat dissipation.

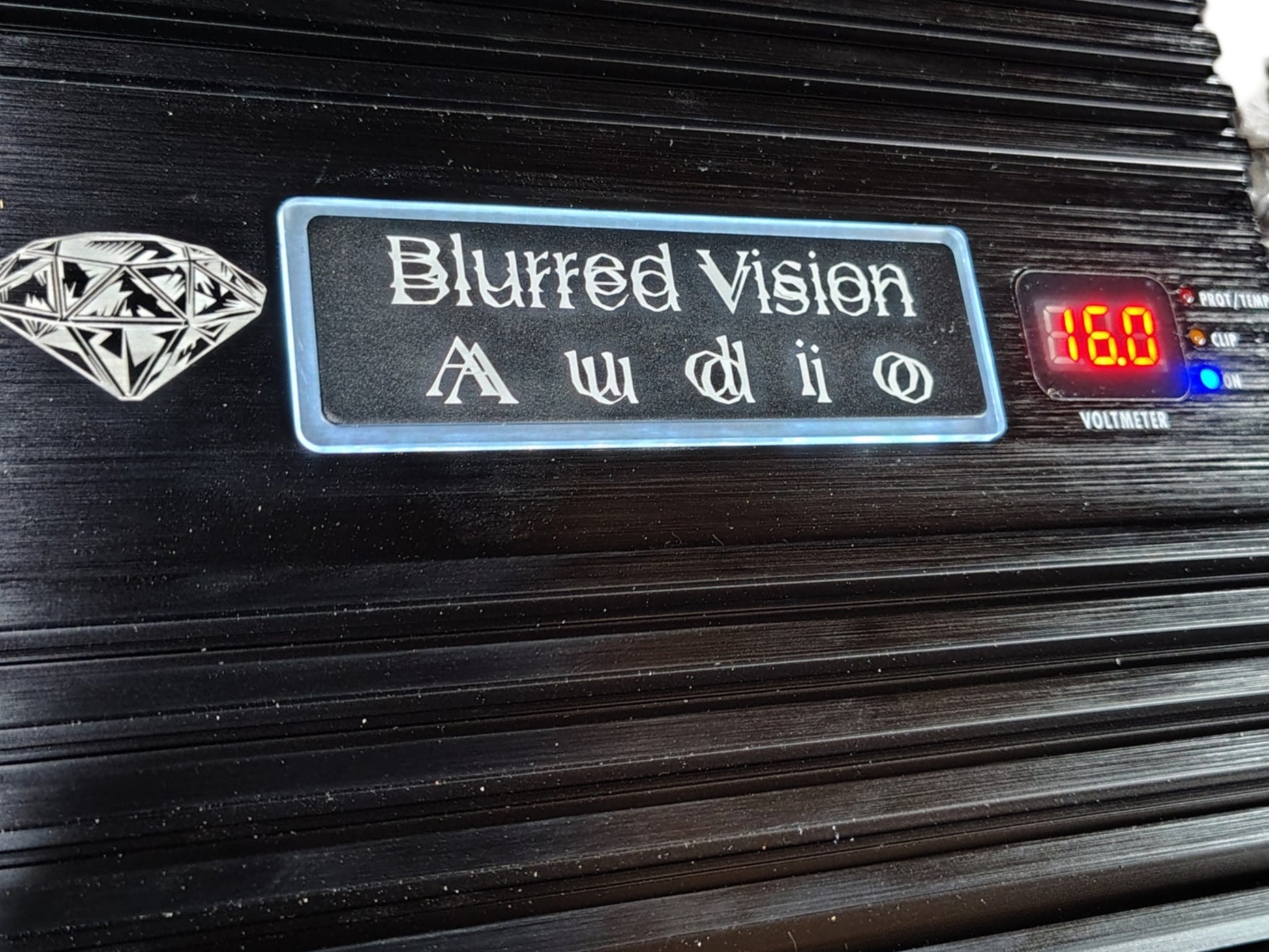

Visual Indicators – Dual clipping LEDs and built-in voltage display.

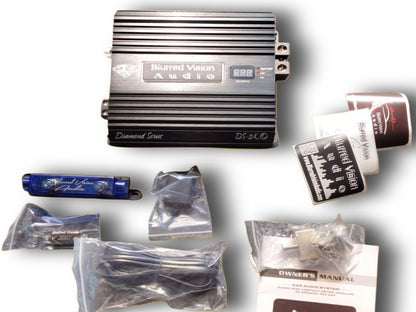

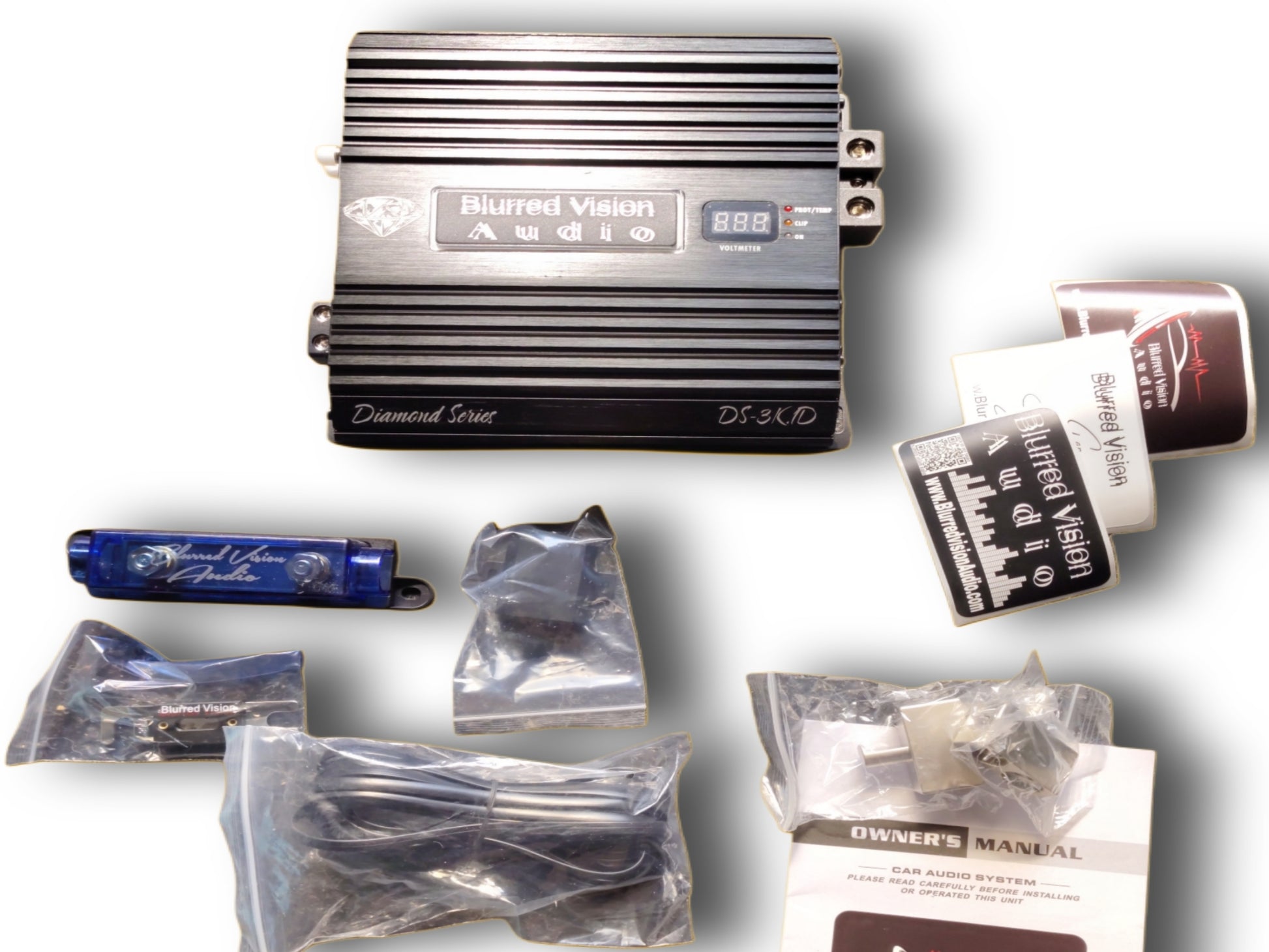

Complete Installation Package – Dual inputs, distribution block, 300A fuse, remote bass knob, and decals included.

🔊 Power Ratings

RMS Power @ 1Ω: 3000W

RMS Power @ 2Ω: 1500W

RMS Power @ 4Ω: 900W

⚙️ Specifications

Supply Voltage: 10–16V

Frequency Response: 10Hz – 20kHz

Crossover Low Pass: 50Hz – 20kHz

Crossover High Pass: 10Hz – 700Hz

Signal-to-Noise Ratio: > 91–100 dB

Harmonic Distortion (THD): < 0.05%

Input Sensitivity: 400mV – 3.6V

Impedance Output: 1Ω

Dimensions: 11.57” L x 12.20” W x 3” H

Weight: 9.2 lbs

✅ Installation Guidelines

Always switch off the amplifier before adding or removing connections.

Keep amplifier cables away from ignition cables, electronic modules, and starter switches to prevent noise interference.

Use 100% copper cables and quality connectors for optimal sound fidelity.

Avoid cable contact with sharp metal edges; install a 300A fuse 12 inches from the battery for safety.

🎯 Why Choose the DS-3K.1D?

Compact yet powerful – ideal for tight spaces without compromising output.

Versatile full-range frequency response – suitable for multiple speaker configurations.

Built for high-output music applications – delivers clean, distortion-free sound even under extreme load.

Complete installation kit included – everything needed to get started immediately.

The Blurred Vision Audio DS-3K.1D is perfect for installers and enthusiasts looking for professional-grade amplification in a compact design, providing massive power and crystal-clear sound.

Warranty

 Running this amplifier below recommend ratings will likely blow mosfets and burn the board. No warranty will be given when the board is burnt NO EXCEPTIONS.

Product defect Warranty

Period is 1 year from the date of purchase. If you burn the amplifier’s mosfet, or burn the amplifiers board we know this is from either improper voltage, improper wiring, or playing while clipping which can result in burning the PCB board which is not covered under warranty. NO EXCEPTIONS.

This warranty does not cover improper installation, accidental damage, misuse, abuse, improper wiring, operation of unit outside of specification, or any product that has been modified or repaired by anyone other than Blurred Vision Audio.

Your warranty covers defects in materials and/or workmanship ONLY and is not an insurance policy. The warranty only covers the original owner of the amplifier.

You are responsible for the cost of shipping your amplifier back to us for warranty examination.

If your amplifier is covered under warranty shipping back to you will be no charge – if your amplifier is replaced/repaired outside of warranty or if no defect is found and your product must be returned to you then shipping will be billed to you.
