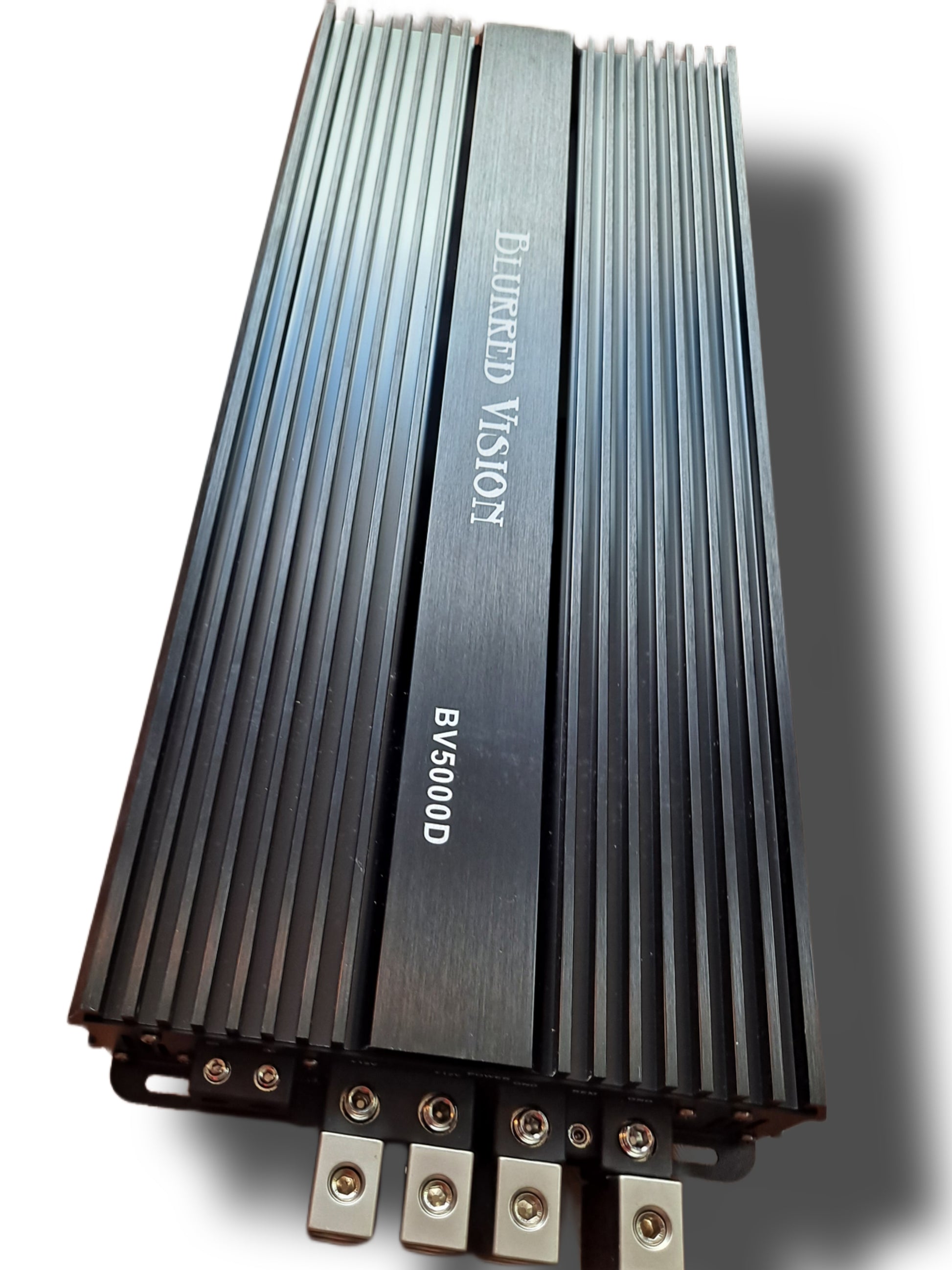

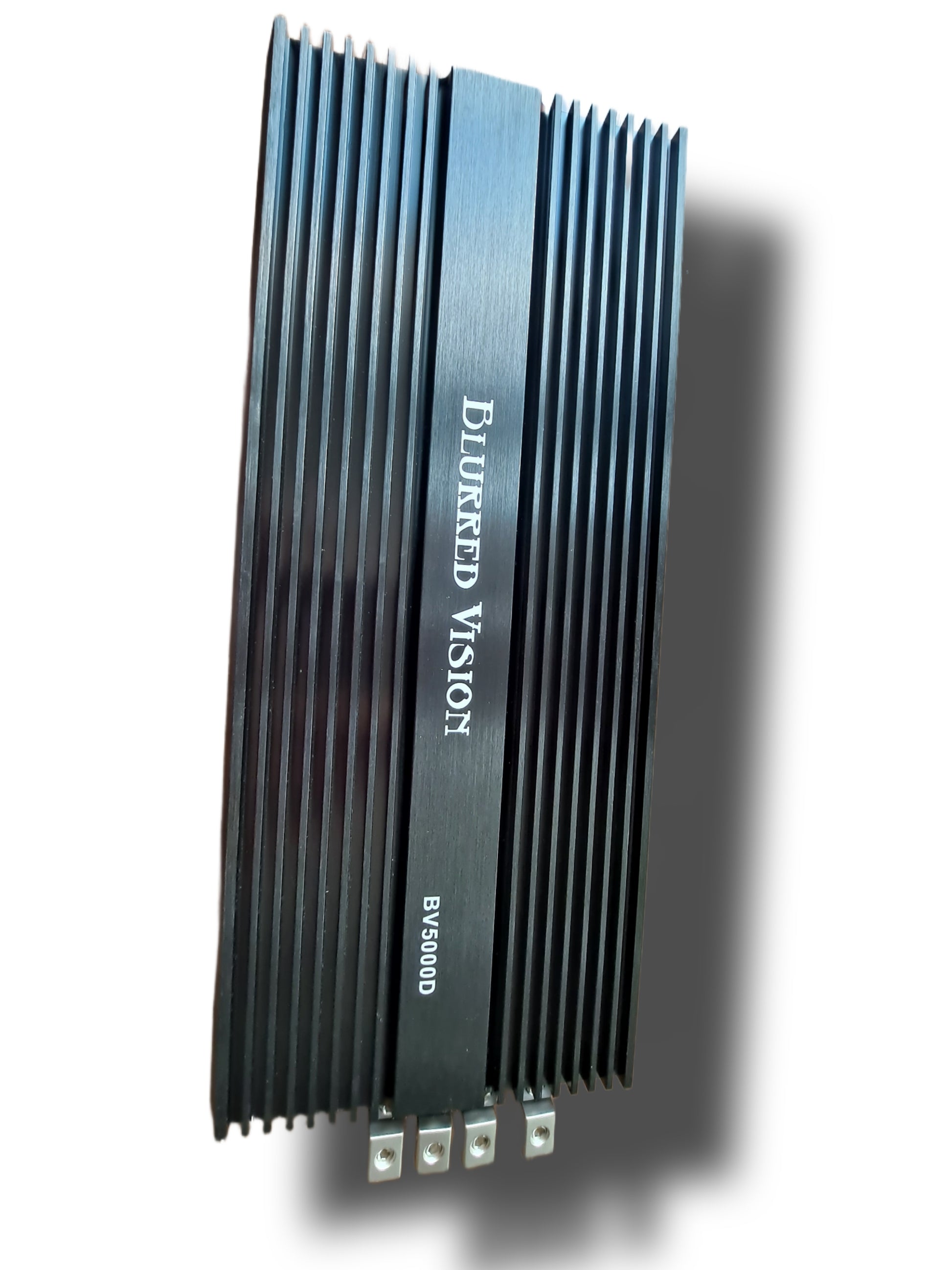

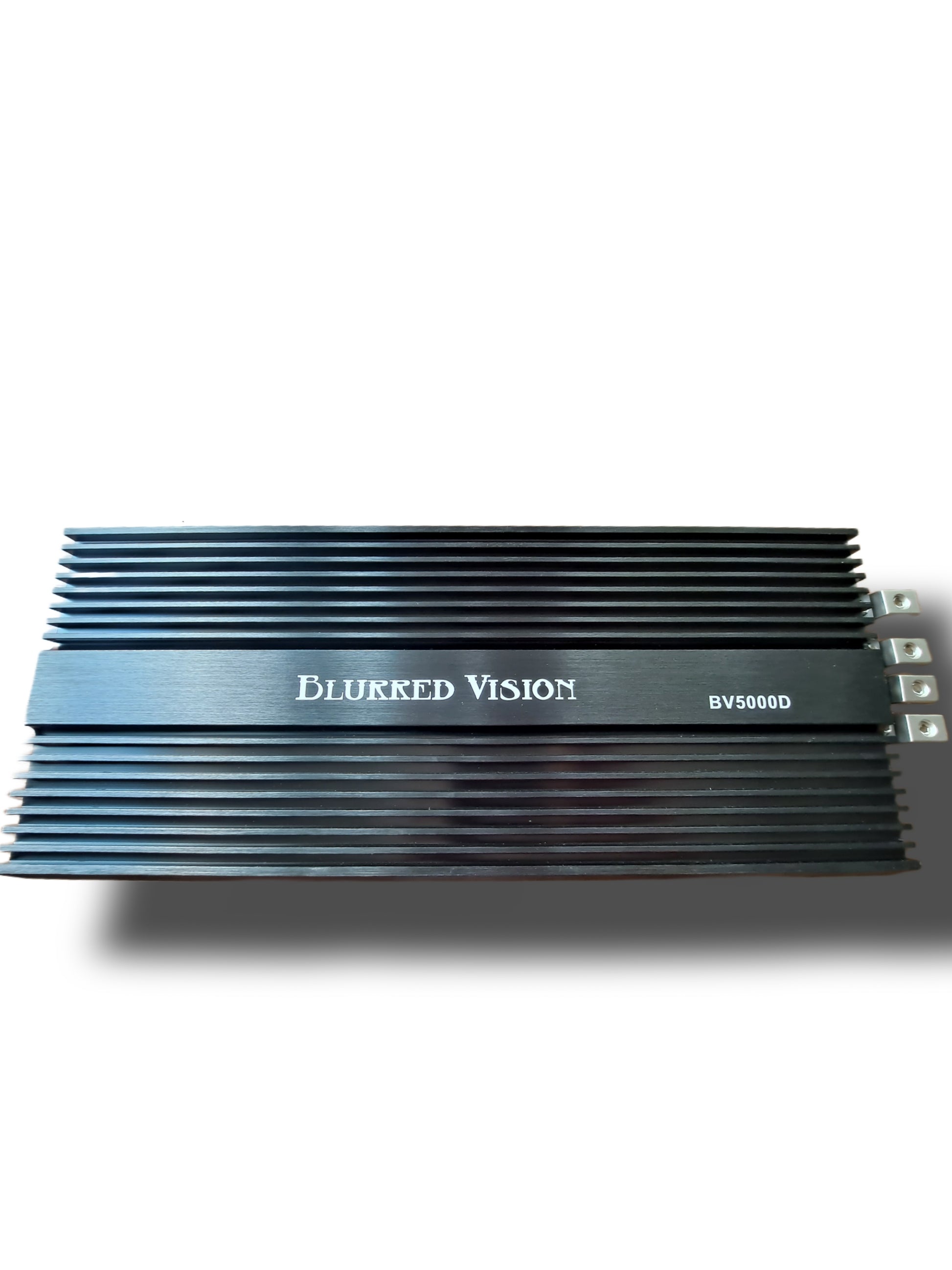

Blurred Vision Audio BV5000.1D Class D Monoblock Amplifier (5000Rms)

⚡ The Blurred Vision Audio BV5000.1D is a mono Class D half-bridge amplifier, designed to deliver 5,000 watts RMS at 1 ohm. Its main goal is high-power car audio for subwoofers, with features that make it relatively easy to install and control, including a bass knob and clip/protection indicators.

It’s suitable for enthusiasts and professional installers who want a high-output amp in a compact form.

Specification Details

Channels 1 (Mono)

RMS Power 1Ω: 5,000 W, 2Ω: 2,800 W, 4Ω: 1,800 W

Voltage 10–16 V

Frequency Response 10 Hz – 20 kHz

Crossover HPF: 10–80 Hz, LPF: 80 Hz – 15 kHz

Bass Boost 0–10 dB

Input Sensitivity 0.3–5 V

Signal-to-Noise Ratio >90 dB

Minimum Impedance 1Ω

Current Draw 500 A

Applications: Drives subwoofers, woofers, and even full-range speakers if needed.

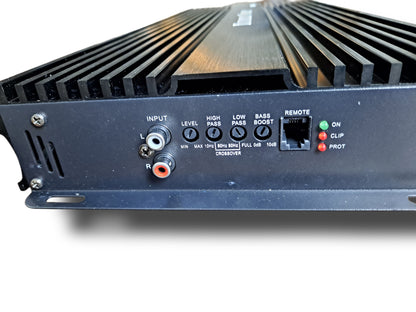

Full Range EQ: Adjustable Level, HPF, and LPF.

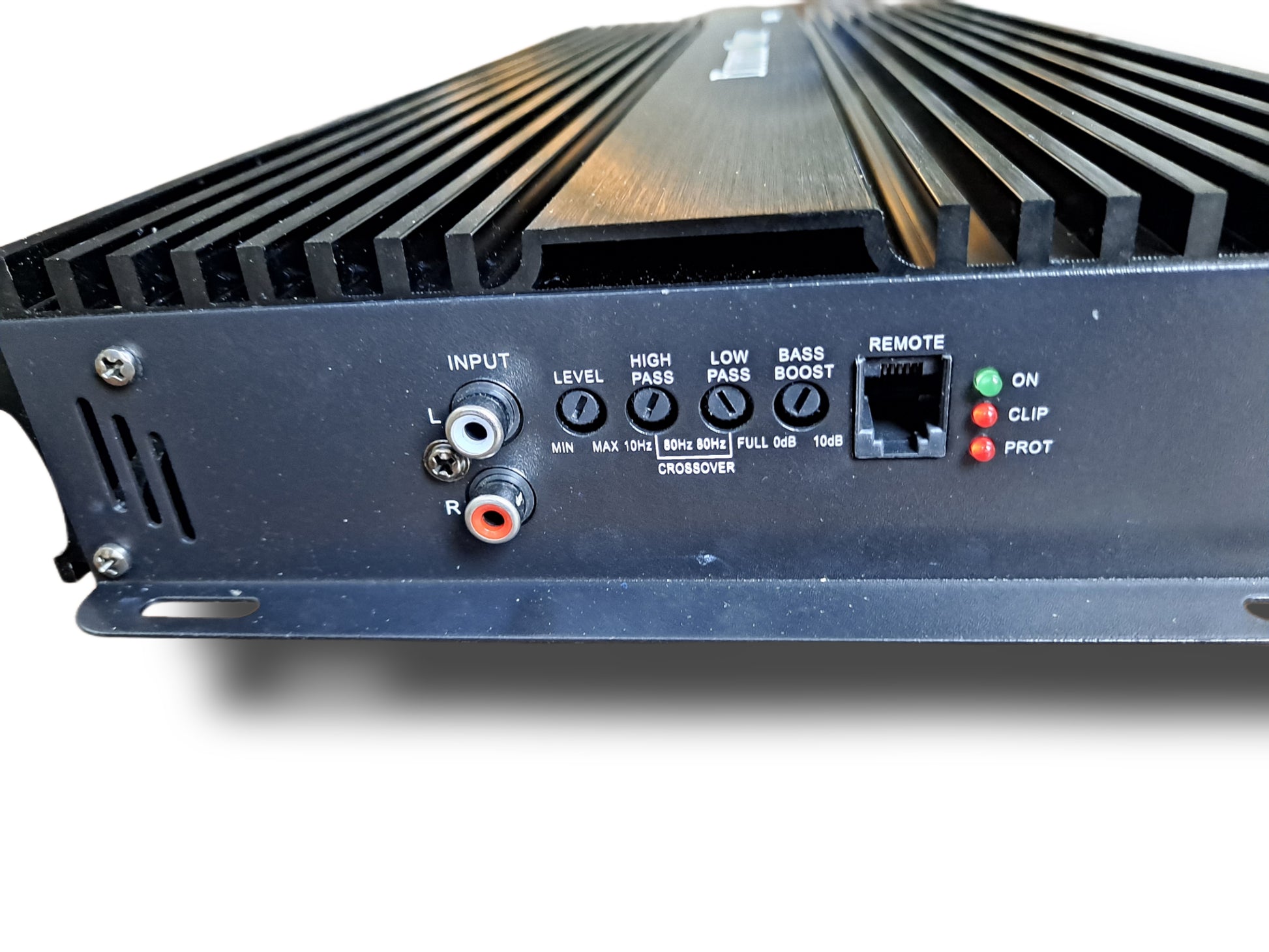

Cooling/Indicators Clip & protection indicator, built-in clip meter

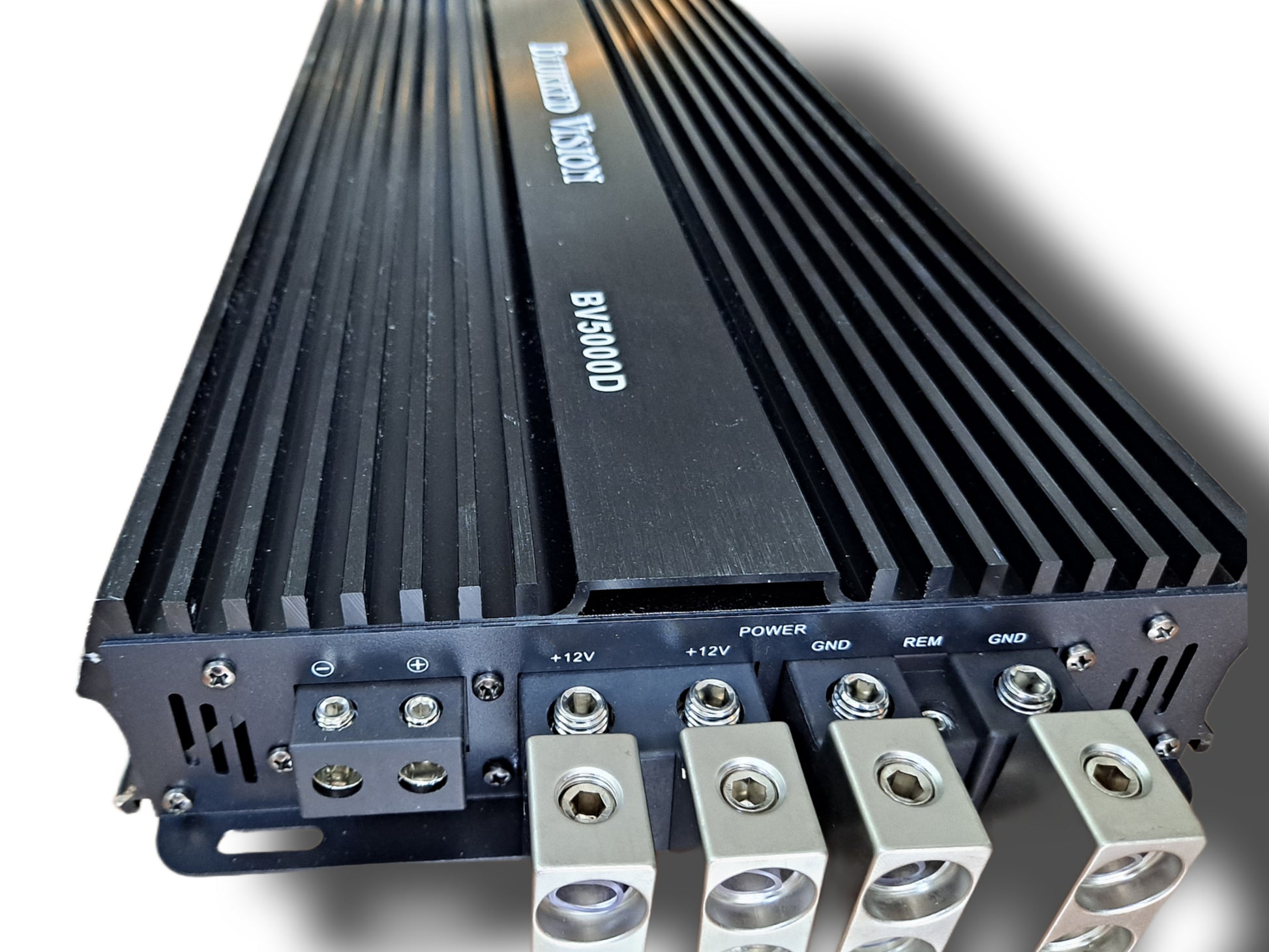

Wiring Dual 1/0 gauge inputs, 6 gauge speaker outputs

Fuses Required! 2 × 250A

Features

Half-Bridge BTL (Bridge-Tied Load): Efficiently delivers full power to a subwoofer.

Bass control: 0–10 dB adjustment for precise tuning.

Clip & protection indicators: Protects amp and speakers from damage.

Input flexibility: 0.3–5 V input sensitivity accommodates most head units.

Compact design: Easy to fit in vehicles with limited space.

Pros

High RMS power (5kW at 1Ω) for competition or SPL systems.

Built-in bass remote control allows fine tuning without touching the amp.

Dual 1/0 gauge inputs allow clean power wiring from multiple sources.

Clip and protection indicators improve safety.

Compatible with most high-power subwoofer setups.

Things to Watch

Fuse NOT included: 2 × 250 A fuses for safe operation.

High current draw: 500 A, so the vehicle will need upgraded batteries/alternator.

Cannot be strapped: You cannot combine this amp with another BV5000.1D in parallel.

Speaker wiring: Minimum 1Ω impedance—

Bass control Remote knob 0–10 dB Manual knob

Fuses 2 × 250 A (not included)

HPF/LPF HPF 10–80Hz / LPF 80Hz–15kHz HPF 10–700Hz / LPF 50Hz–20kHz

Warranty

 Running this amplifier below recommend ratings will likely blow mosfets and burn the board. No warranty will be given when the board is burnt NO EXCEPTIONS.

Product defect Warranty

Period is 1 year from the date of purchase. If you burn the amplifier’s mosfet, or burn the amplifiers board we know this is from either improper voltage, improper wiring, or playing while clipping which can result in burning the PCB board which is not covered under warranty. NO EXCEPTIONS.

This warranty does not cover improper installation, accidental damage, misuse, abuse, improper wiring, operation of unit outside of specification, or any product that has been modified or repaired by anyone other than Blurred Vision Audio.

Your warranty covers defects in materials and/or workmanship ONLY and is not an insurance policy. The warranty only covers the original owner of the amplifier.

You are responsible for the cost of shipping your amplifier back to us for warranty examination.

If your amplifier is covered under warranty shipping back to you will be no charge – if your amplifier is replaced/repaired outside of warranty or if no defect is found and your product must be returned to you then shipping will be billed to you.
