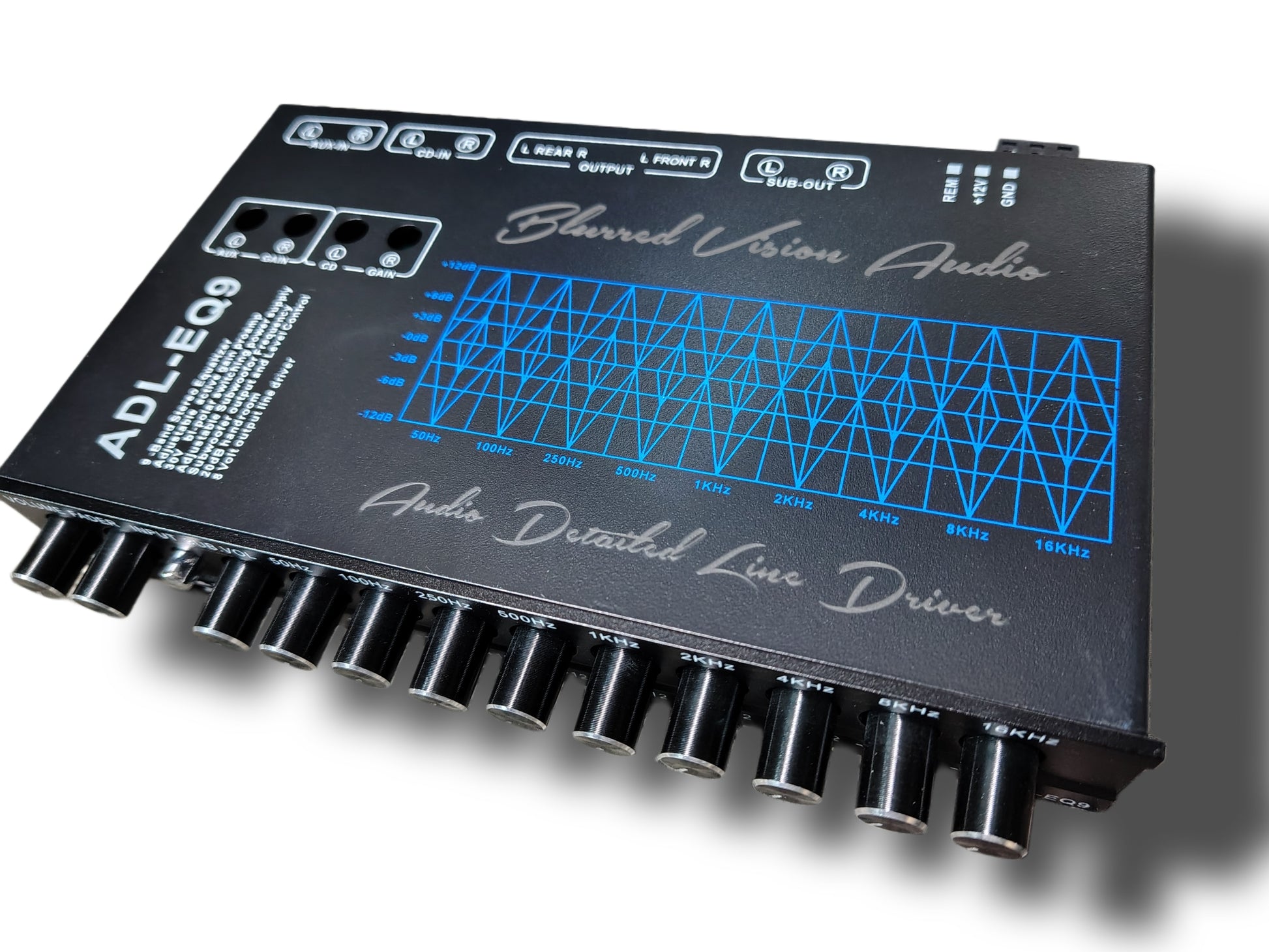

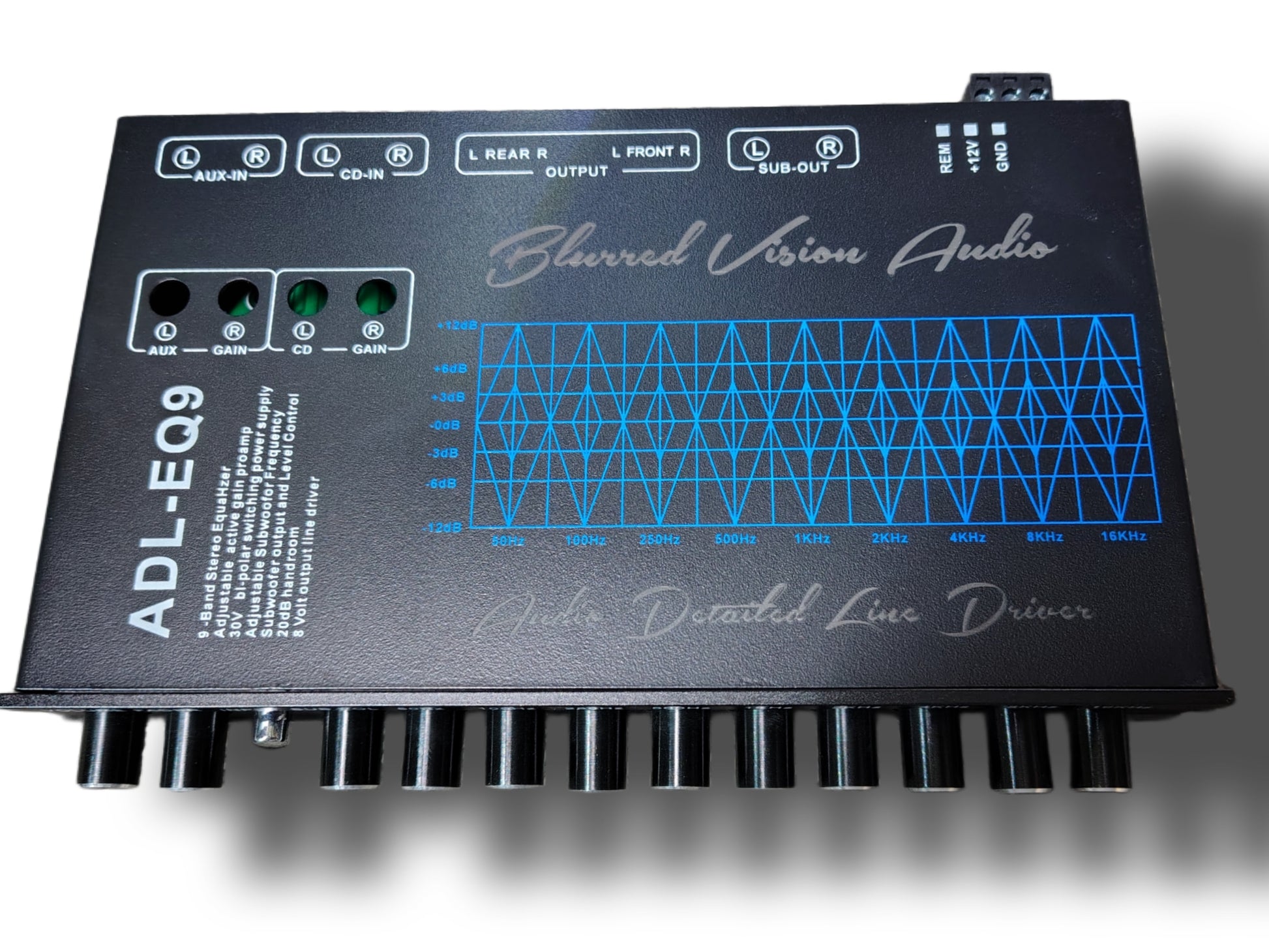

Blurred Vision Audio ADL-EQ9 9 Band Full Graphic EQ + 8V. RMS Output Line Driver

Blurred Vision Audio ADL-EQ9 EQ19

1/2 DIN 9-Band Parametric Car Audio Equalizer with 9V Output, Sub Control & Blue LED Lighting

Description:

Elevate your car audio system to a new level of precision and clarity with the Blurred Vision Audio ADL-EQ9 EQ19. Designed for true audiophiles, this 1/2 DIN 9-band parametric equalizer gives you full control over your sound, allowing you to fine-tune every frequency for the perfect listening experience.

Whether you're running a high-powered aftermarket stereo or a full amplifier setup, this EQ provides up to 9 volts of RCA output, ensuring clean, distortion-free signal delivery to your amps. With Blue LED backlighting, it looks as great as it sounds — adding a sleek, modern touch to your dash.

🔊 Product Highlights

9-band stereo equalizer/crossover built for mobile audio systems

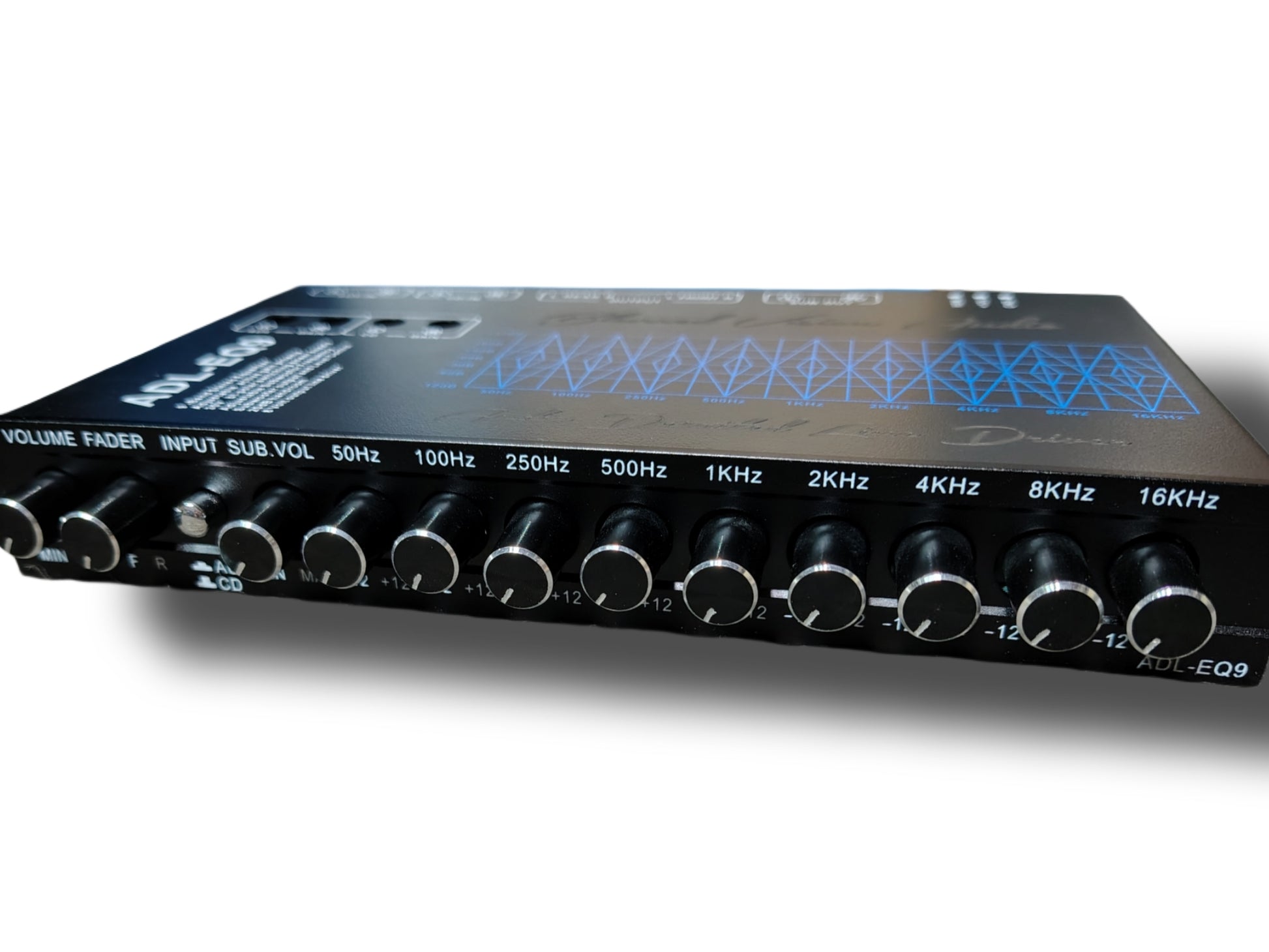

Adjustable frequencies: 50Hz, 120Hz, 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz, 16kHz

Each frequency adjustable from -12dB to +12dB (Subwoofer bands up to ±15dB)

Active gain pre-amp with adjustable input sensitivity

Master volume control with up to 9 volts RCA output

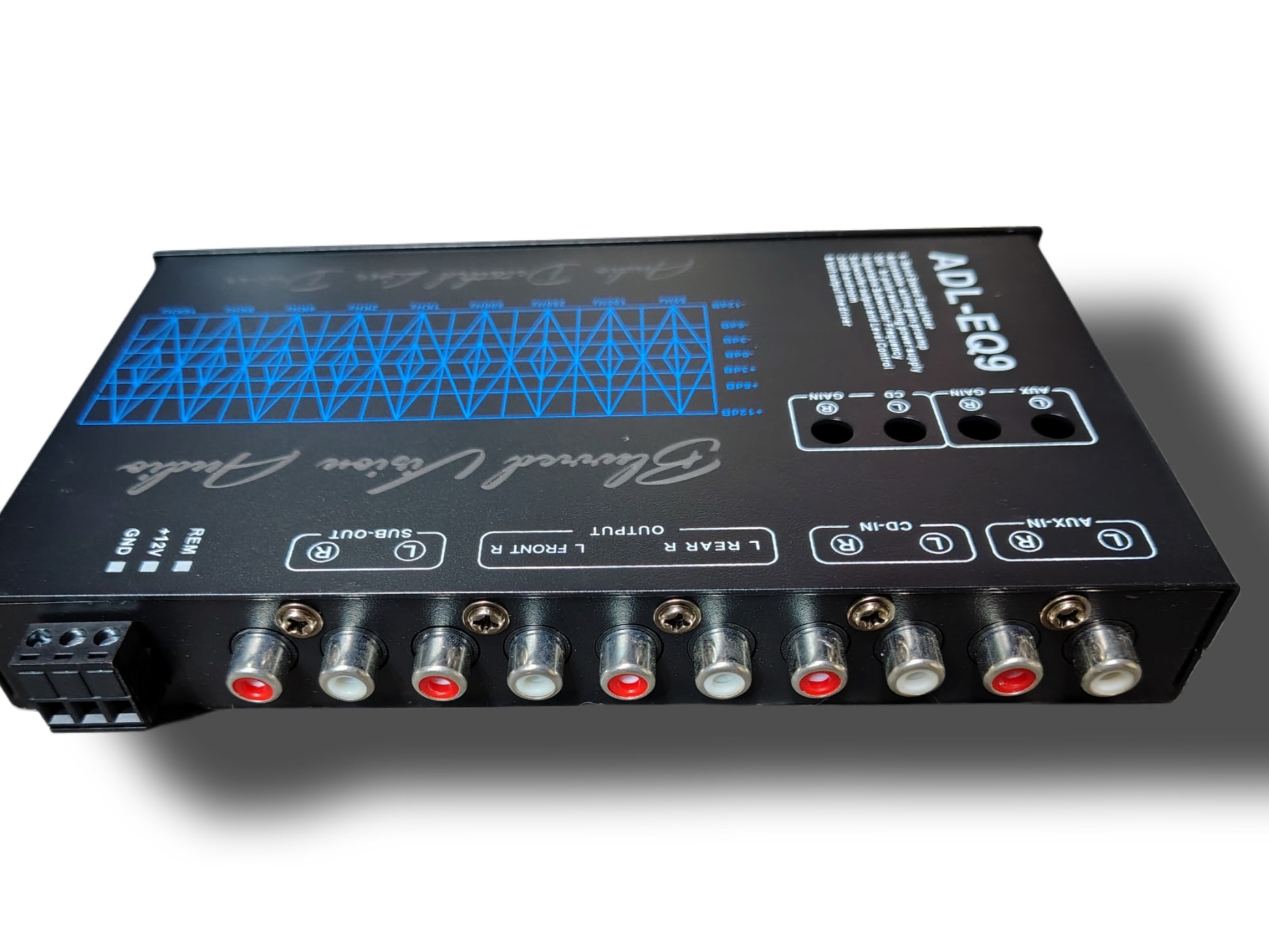

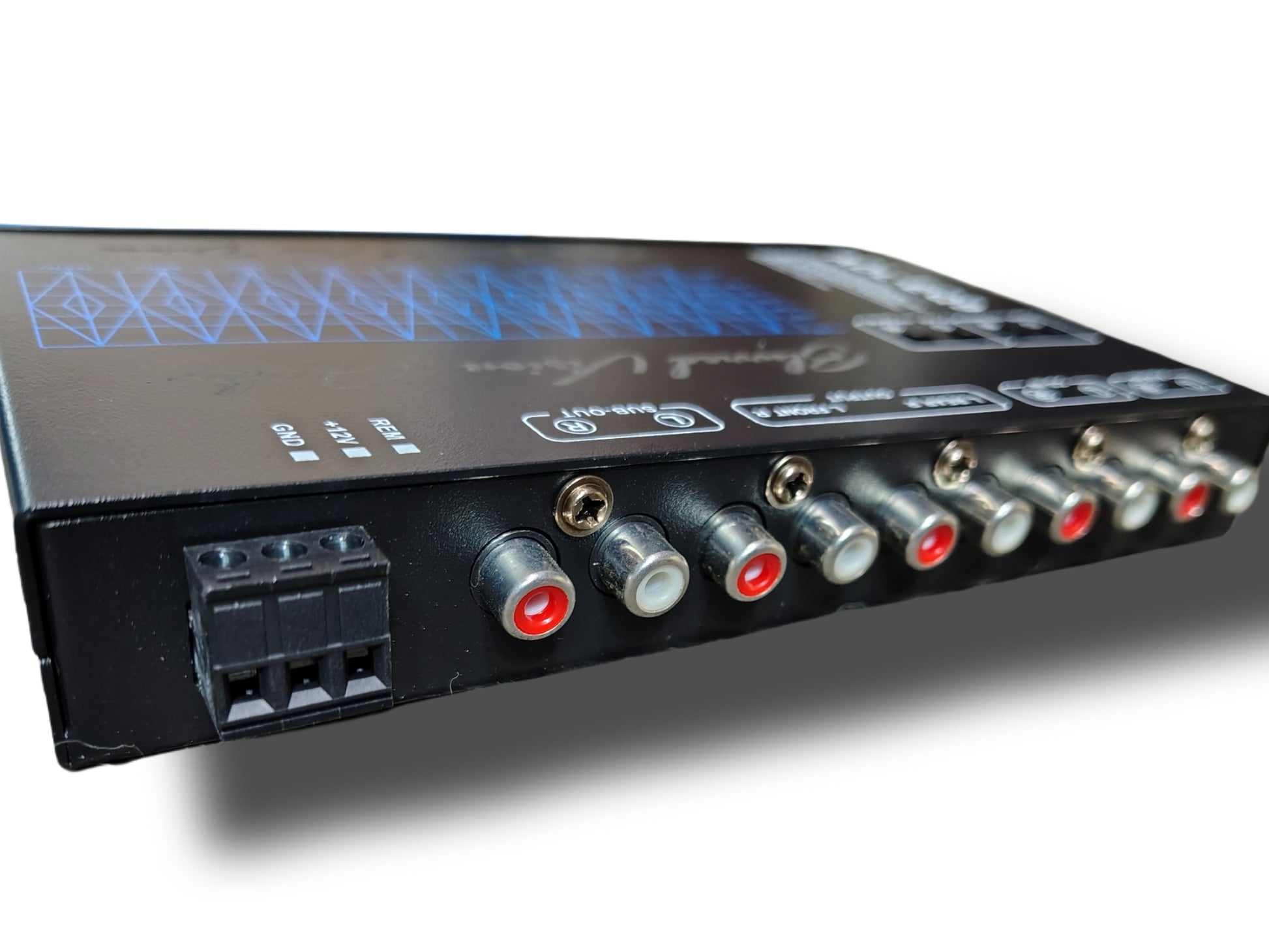

3 stereo RCA outputs to drive front, rear, and subwoofer channels

Subwoofer level control with dedicated frequency select switch

Independent left/right input sensitivity controls

Built-in AUX/DVD input selector switch

Blue LED Night Illumination for enhanced visibility and style

Compact 1/2 DIN design fits easily in most vehicle dashes

⚙️ Technical Specifications

Graphic Center Frequencies: 50Hz, 120Hz, 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz, 16kHz

Power Supply: 11V–16V DC Negative Ground

Max Output Voltage: 9V

Subwoofer Output: 5V–6V

High & Mid Output: 3V–4V

Equalization Range: ±12dB

Input Impedance: 10K Ohms

Signal-to-Noise Ratio: 90 dB

THD (Total Harmonic Distortion): 0.05%

Channel Separation: 82 dB @ 1kHz

Frequency Response: 10Hz – 50kHz (-3dB)

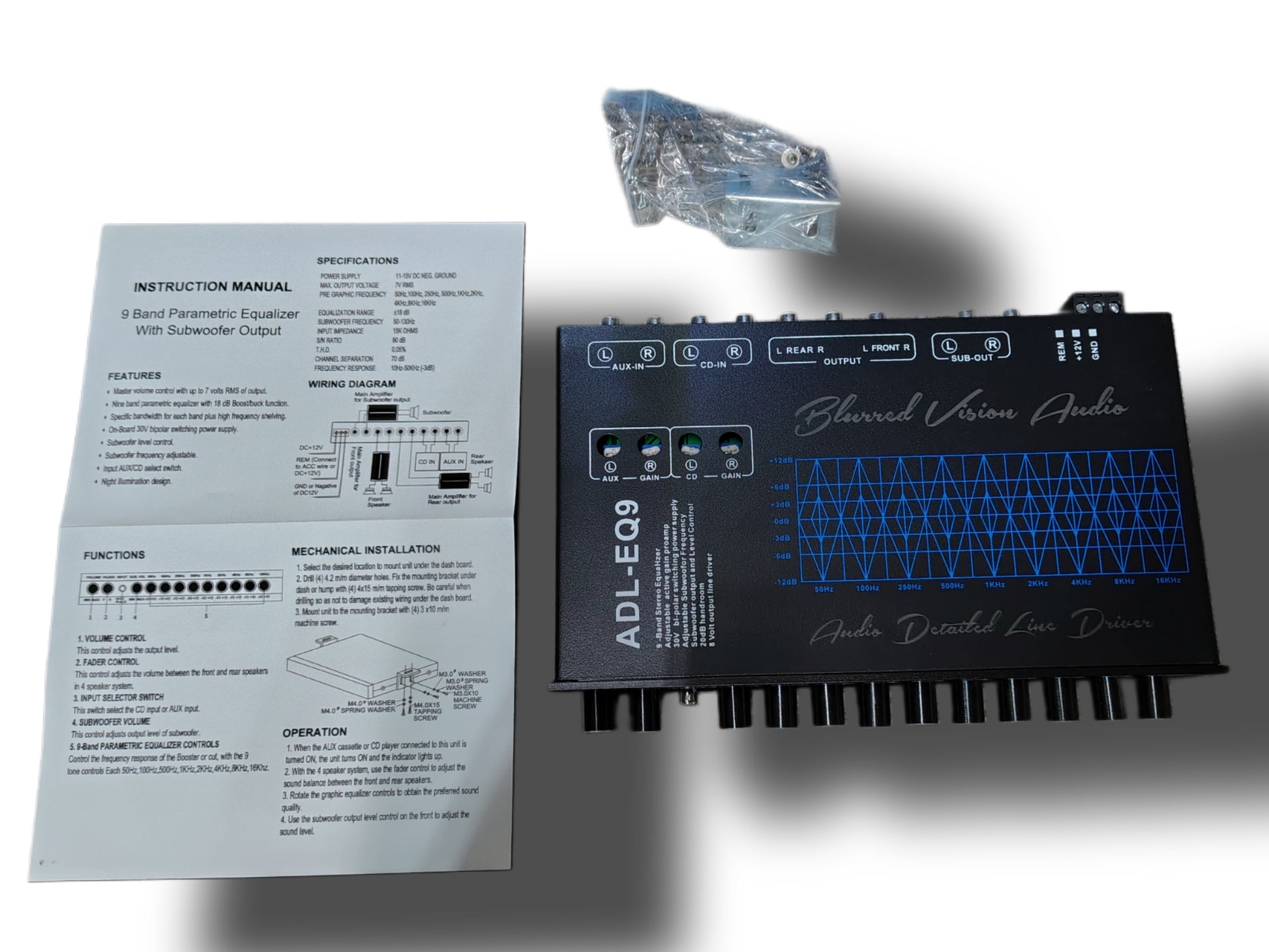

📦 What’s Included

(1) Blurred Vision Audio ADL-EQ9 9-Band Parametric Equalizer

(1) Power Adapter Connector

(2) Mounting Brackets

(8) Screws

(1) User Manual

Item Weight: 1.39 lbs

Package Dimensions: 10.08 x 8.31 x 1.3 inches

💥 Key Benefits

✅ Tailor your sound with precision 9-band equalization

✅ Boost signal strength with powerful 9V RCA output

✅ Drive multiple amplifiers – front, rear, and sub outputs

✅ Built-in AUX/DVD input switching

✅ Eye-catching Blue LED illumination

✅ Compact, durable, and built for high-performance car audio systems
